Airports for X-Plane

Ordos - Ordos Ejin Horo

Airport details

CountryChina
StateInner Mongolia
RegionZB
AirspaceBeijing Ctr
MunicipalityUlaan Moron
Elevation4592ft (1400m)
TimezoneGMT +8
Coordinates39.49000, 109.86500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZBDS
IATA codeDSN
FAA coden/a

Communication

Ordos Ejin Horo ZBDS tower118.150

Approach frequencies

ILS-cat-IRW13110.118.00mi
ILS-cat-IRW31108.718.00mi
3° GSRW13110.118.00mi
3° GSRW31108.718.00mi
Nearby Points of Interest:
Mausoleum of Genghis Khan

Runway info

Runway 13 / 31
 length3203m (10509ft)
 bearing117° / 297°
 width45m (148ft)
 surfaceasphalt

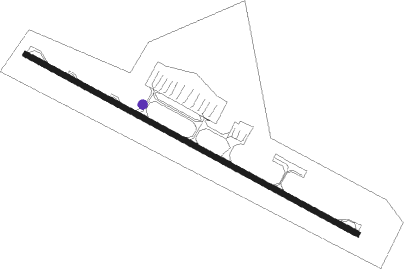

Airport layout - taxiway location A3


Taxiway locations

 A  A1  A2  A3  Z
Parking locations

 1  10  11  12  13  14  2  3
 4  5  6  7  8  9  GA1  GA2
 GA3  GA4  GA5  GA6  GA7  GA8  GA9

Nearby beacons

codeidentifierdistbearingfrequency
HDSORDOS VOR/DME0.1270°116.10
GORDOS NDB1.3117°338

Departure and arrival routes

Transition altitude9843ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW13
 ALG8ZD, ALG01D43mi8°
 OMD8ZD, OMD01D41mi135°
 YLX8ZD, YLX01D68mi195°
 KIB8ZD, KIB01D41mi217°
 LAV8ZD, LAV01D50mi257°
RW31
 ALG11D, ALG9ZD43mi8°
 OMD9ZD, OMD11D41mi135°
 YLX11D, YLX9ZD68mi195°
 KIB11D, KIB9ZD41mi217°
 LAV9ZD, LAV11D50mi257°

STAR starting pointsdistanceinbound heading
RW13
 YLX8YA, YLX8ZA, YLX02A, YLX01A67.815°
 ALG8ZA, ALG02A, ALG01A, ALG8YA42.8188°
 UGP01A, UGP8YA, UGP8ZA54.1287°
 OMD8ZA, OMD01A, OMD8YA40.9315°
RW31
 YLX12A, YLX9YA, YLX9ZA, YLX11A67.815°
 ALG9ZA, ALG9YA, ALG11A, ALG12A42.8188°
 UGP9ZA, UGP11A, UGP12A, UGP9YA54.1287°
 OMD12A, OMD9ZA, OMD9YA, OMD11A40.9315°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALG02AHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
ALG12AHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
ALG8YAHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
ALG9YAHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
OMD01AD147OVHFleft147 (327)°> 7880ft1.0min timedICAO rules
OMD01AHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
OMD11AD147OVHFleft147 (327)°> 7880ft1.0min timedICAO rules
OMD12AD147OVHFleft147 (327)°> 7880ft1.0min timedICAO rules
OMD12AHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
OMD8YADS503VHFleft147 (327)°> 8860ft1.0min timedICAO rules
OMD8YAHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
OMD8ZADS503VHFleft147 (327)°> 8860ft1.0min timedICAO rules
OMD9YADS503VHFleft147 (327)°> 8860ft1.0min timedICAO rules
OMD9YAHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
OMD9ZADS503VHFleft147 (327)°> 8860ft1.0min timedICAO rules
UGP01AD147OVHFleft147 (327)°> 7880ft1.0min timedICAO rules
UGP01AHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
UGP11AD147OVHFleft147 (327)°> 7880ft1.0min timedICAO rules
UGP12AD147OVHFleft147 (327)°> 7880ft1.0min timedICAO rules
UGP12AHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
UGP8YADS503VHFleft147 (327)°> 8860ft1.0min timedICAO rules
UGP8YAHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
UGP8ZADS503VHFleft147 (327)°> 8860ft1.0min timedICAO rules
UGP9YADS503VHFleft147 (327)°> 8860ft1.0min timedICAO rules
UGP9YAHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
UGP9ZADS503VHFleft147 (327)°> 8860ft1.0min timedICAO rules
YLX01AD196OVHFleft196 (16)°> 8860ft1.0min timedICAO rules
YLX02AD196OVHFleft196 (16)°> 8860ft1.0min timedICAO rules
YLX02AHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
YLX11AD196OVHFleft196 (16)°> 8860ft1.0min timedICAO rules
YLX12AD196OVHFleft196 (16)°> 8860ft1.0min timedICAO rules
YLX12AHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
YLX8YADS504VHFleft196 (16)°> 8860ft1.0min timedICAO rules
YLX8YAHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
YLX8ZADS504VHFleft196 (16)°> 8860ft1.0min timedICAO rules
YLX9YADS504VHFleft196 (16)°> 8860ft1.0min timedICAO rules
YLX9YAHDSNDBright322 (142)°> 6890ft1.0min timedICAO rules
YLX9ZADS504VHFleft196 (16)°> 8860ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
