Airports for X-Plane

Tianjin - Tianjin Binhai Intl.

Airport details

CountryChina
StateTianjin
RegionZB
AirspaceBeijing Ctr
MunicipalityDongli District
Elevation13ft (4m)
TimezoneGMT +8
Coordinates39.12333, 117.34500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZBTJ
IATA codeTSN
FAA coden/a

Communication

Tianjin Binhai Intl. ATIS126.400
Tianjin Binhai Intl. Tianjin Delivery121.800
Tianjin Binhai Intl. Tianjin Ground121.950
Tianjin Binhai Intl. Tianjin Tower118.200
Tianjin Binhai Intl. Tianjin Tower118.875
Tianjin Binhai Intl. Tianjin Approach127.900
Tianjin Binhai Intl. Tianjin Approach125.250

Approach frequencies

ILS-cat-IRW34L110.518.00mi
ILS-cat-IRW16L109.718.00mi
ILS-cat-IRW16R110.918.00mi
ILS-cat-IRW34R111.518.00mi
3° GSRW34L110.518.00mi
3° GSRW16L109.718.00mi
3° GSRW16R110.918.00mi
3° GSRW34R111.518.00mi

Runway info

Runway 16L / 34R
 length3203m (10509ft)
 bearing148° / 328°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 61m (200ft)
Runway 16R / 34L
 length3604m (11824ft)
 bearing148° / 328°
 width60m (197ft)
 surfaceasphalt
 displ threshold400m (1312ft) / 0m (0ft)
 blast zone60m (197ft) / 60m (197ft)

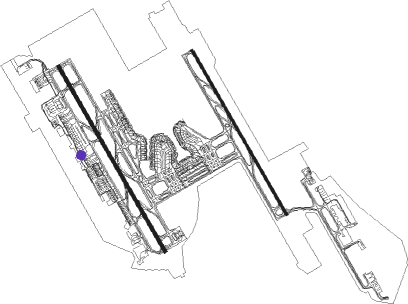

Airport layout - parking location 897


Taxiway locations

 A  A1  A10  A11  A2  A3  A4  A5
 A6  B  B1  B2  B3  B4  B5  B6
 B7  B8  C  C1  C2  C3  C4  C5
 C6  D  J5  J7  J8  K  M  N
 N1  N2  N3  N4  N5  N6  N7  P
 Q  S  W  W1  W2  W5  W6  W7
 W8  W9  Y  Y9
Parking locations

 101  102  103  104  105  106  107  108
 109  110  111  112  113  114  115  116
 117  118  201  202  203  204  205  206
 207  208  209  210  211  212  213  214
 215  216  217  218  219  220  221  222
 223  224  225  226  227  228  229  230
 409  410  411  412  413  414  414L  414R
 415  415L  415R  416  416L  416R  417  417L
 417R  418  418L  418R  419  419L  419R  501
 502  503  504  601  602  603  604  605
 606  607  608  609  610  874  875  876
 877  878  879  884  885  886  886L  886R
 887  887L  887R  888  889  890  891  892
 893  894  895  896  897  898  898L  898R
 899  899L  899R  901  902  903  904  905
 906  907  908  909  910  910L  910R  911
 911L  911R  912  912L  912R  913  914  915
 916  921  922  923  924  925  931  932
 933  934  935  936  937  938  939  940
 941  942  943  944  945  946  GA1  GA2
 GA3  ZZ11  ZZ11L  ZZ11R  ZZ12  ZZ13  ZZ14

Nearby beacons

codeidentifierdistbearingfrequency
TAJTIANJIN VOR/DME0.9135°112.10
CGTIANJIN NDB2.9145°339
TJKDONGLIHU VOR/DME8.379°113.40
VMSHIGEZHUANG NDB23.1291°280
VYKDAWANGZHUANG VOR/DME36.2275°112.70
DXGDAXING VOR/DME48.9290°115.35
WFXILIUHETUN NDB53.9330°395
PEKGUANZHUANG VOR/DME62.3327°114.70
QUBEIJING CAPITAL NDB62.3320°240
DKBEIJING CAPITAL NDB65.2320°354
ORBEIJING CAPITAL NDB69.4323°196
SZYSHAZIYING VOR/DME72.6317°117.20
CUSHAHE NDB74.9316°555

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW16L
 MUG6ZD32mi94°
 IGM6ZD37mi113°
 ELK6ZD43mi235°
 OMD6ZD65mi250°
 PEG6ZD86mi264°
 BOT6ZD101mi295°
 IDK6ZD106mi335°
RW16R
 MUG4ZD32mi94°
 IGM4ZD37mi113°
 ELK4ZD43mi235°
 OMD4ZD65mi250°
 PEG4ZD86mi264°
 BOT4ZD101mi295°
 IDK4ZD106mi335°
RW34L
 MUG5ZD, MUG5YD32mi94°
 IGM5ZD, IGM5YD37mi113°
 ELK5YD, ELK5ZD, ELK5TD43mi235°
 OMD5TD, OMD5YD, OMD5ZD65mi250°
 PEG5TD, PEG5ZD, PEG5YD86mi264°
 BOT5ZD, BOT5TD, BOT5YD101mi295°
 IDK5ZD, IDK5YD, IDK5TD106mi335°
RW34R
 MUG7YD, MUG7ZD32mi94°
 IGM7ZD, IGM7YD37mi113°
 ELK7YD, ELK7ZD, ELK7TD43mi235°
 OMD7ZD, OMD7TD, OMD7YD65mi250°
 PEG7TD, PEG7ZD, PEG7YD86mi264°
 BOT7YD, BOT7TD, BOT7ZD101mi295°
 IDK7ZD, IDK7YD, IDK7TD106mi335°

STAR starting pointsdistanceinbound heading
RW16 (ALL)
 AVB4ZA, AVB6ZA53.464°
 GUV6ZA, GUV6YA, GUV4ZA, GUV4YA114.9126°
 DUM6ZA, DUM6YA, DUM4ZA45.2308°
RW34L
 AVB5ZA53.464°
 GUV5YA, GUV5ZA114.9126°
 DUM5ZA45.2308°
RW34R
 AVB7ZA53.464°
 GUV7ZA, GUV7YA114.9126°
 DUM7ZA45.2308°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DUM4ZATJ944VHFright115 (295)°> 3940ftDME 5.4miICAO rules
DUM5ZATJ841VHFright124 (304)°> 3940ftDME 5.4miICAO rules
DUM6YATJ944VHFright115 (295)°> 3940ftDME 5.4miICAO rules
DUM7ZATJ841VHFright124 (304)°> 3940ftDME 5.4miICAO rules
GUV4YATJ944VHFright115 (295)°> 3940ftDME 5.4miICAO rules
GUV5YATJ841VHFright124 (304)°> 3940ftDME 5.4miICAO rules
GUV6YATJ944VHFright115 (295)°> 3940ftDME 5.4miICAO rules
GUV7YATJ841VHFright124 (304)°> 3940ftDME 5.4miICAO rules
*) magnetic outbound (inbound) holding course
