Airports for X-Plane

Shantou - Jieyang Chaoshan Intl'

Airport details

CountryChina
StateGuangdong Province
RegionZG
AirspaceGuangzhou Ctr
MunicipalityJiedong County
Elevation51ft (16m)
TimezoneGMT +8
Coordinates23.55333, 116.50166
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZGOW
IATA codeSWA
FAA coden/a

Communication

Jieyang Chaoshan Intl' ATIS126.650
Jieyang Chaoshan Intl' Chaoshan Ground130.850
Jieyang Chaoshan Intl' Chaoshan Tower118.350
Jieyang Chaoshan Intl' Shantou Approach120.650

Approach frequencies

ILS-cat-IRW22108.718.00mi
ILS-cat-IRW04109.318.00mi
3° GSRW22108.718.00mi
3° GSRW04109.318.00mi

Runway info

Runway 04 / 22
 length3203m (10509ft)
 bearing42° / 222°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 100m (328ft)

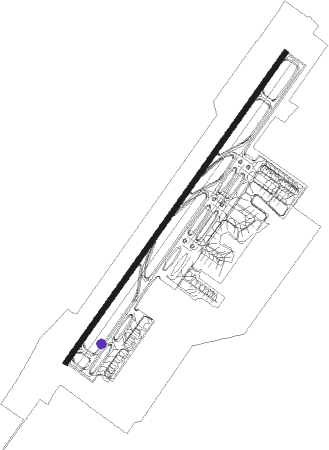

Airport layout - taxiway location A


Taxiway locations

 A  A1  A2  A5  A6  A7  A8  B
 F  Q  T1
Parking locations

 111  112  113  114  115  116  117  118
 119  120  121  122  123  124  125  126
 127  128  129  130  131  132  133  134
 301  302  303  304  305  306  307  308
 309  601  602  603  604  605  606  606L
 606R  607  607L  607R  608  609

Nearby beacons

codeidentifierdistbearingfrequency
CSSCHAOSHAN VOR/DME1.7218°110.60
JCSNIULING VOR/DME5.6297°116.60
SWASHANTOU VOR/DME16.1113°112.60

Departure and arrival routes

Transition altitude8858ft
SID end pointsdistanceoutbound heading
RW04
 DAB9ZD, DAB1ZD41mi31°
 SAP2ZD, SAP8ZD36mi56°
 SWA2ZD, SWA8ZD16mi113°
 DOT2ZD, DOT8ZD53mi202°
RW22
 DAB9WD, DAB1WD41mi31°
 SAP2WD, SAP8WD36mi56°
 SWA2WD, SWA8WD16mi113°
 DOT2WD, DOT8WD53mi202°

STAR starting pointsdistanceinbound heading
RW04
 DOT3ZA, DOT4ZA, DOT8ZA53.422°
 DAB1ZA40.5211°
 SAP2ZA36.1236°
 SWA2ZA, SWA8ZA16.1293°
RW22
 DOT8WA, DOT2WA53.422°
 DAB2WA, DAB1WA40.5211°
 SAP4WA36.1236°
 SWA2WA, SWA8WA16.1293°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DAB1WAD006WVHFright6 (186)°> 8860ft1.0min timed205
DAB1WAJCSNDBright33 (213)°> 5910ft1.0min timed205
DAB1ZAD006WVHFright6 (186)°> 8860ft1.0min timed205
DAB1ZAJCSNDBright33 (213)°> 5910ft1.0min timed205
DAB2WAD006WVHFright6 (186)°> 8860ft1.0min timed205
DAB9WAOW558VHFright6 (186)°> 8860ft1.0min timed205
DAB9ZAJCSNDBright33 (213)°> 5910ft1.0min timed205
DAB9ZAOW558VHFright6 (186)°> 8860ft1.0min timed205
DOT2WAJCSNDBright33 (213)°> 5910ft1.0min timed205
DOT3ZAJCSNDBright33 (213)°> 5910ft1.0min timed205
DOT8WAJCSNDBright33 (213)°> 5910ft1.0min timed205
SAP2ZAJCSNDBright33 (213)°> 5910ft1.0min timed205
SAP3WAJCSNDBright33 (213)°> 5910ft1.0min timed205
SAP8ZAJCSNDBright33 (213)°> 5910ft1.0min timed205
SWA2WAJCSNDBright33 (213)°> 5910ft1.0min timed205
SWA2ZAJCSNDBright33 (213)°> 5910ft1.0min timed205
SWA8WAJCSNDBright33 (213)°> 5910ft1.0min timed205
SWA8ZAJCSNDBright33 (213)°> 5910ft1.0min timed205
*) magnetic outbound (inbound) holding course
