Ulaanbaatar - Buyant-ukhaa Intl

Airport details

Country	Mongolia
State	Ulaanbaatar
Region	ZM
Airspace	Ulaanbaatar Ctr
Elevation	4362ft (1330m)
Timezone	GMT +8
Coordinates	47.83816, 106.77930
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	ZMUB
IATA code	ULN
FAA code	n/a

Communication

Buyant-Ukhaa Intl ATIS	125.000
Buyant-Ukhaa Intl Buyant-Ukhaa Tower	132.000
Buyant-Ukhaa Intl Ulaanbatar Approach	120.000
Buyant-Ukhaa Intl Ulaanbatar Departure	120.000

Approach frequencies

ILS-cat-I	RW14	110.3	18.00mi
2.6° GS	RW14	110.3	18.00mi

Runway info

Runway 14 / 32
	length	3104m (10184ft)
	bearing	127° / 307°
	width	45m (148ft)
	surface	asphalt
	blast zone	48m (157ft) / 67m (220ft)
Runway 15 / 33
	length	2047m (6716ft)
	bearing	135° / 315°
	width	50m (164ft)
	surface	gravel
	blast zone	34m (112ft) / 27m (89ft)

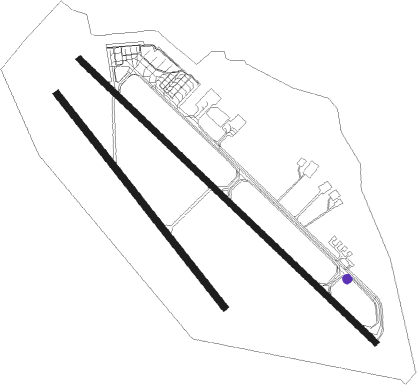

Airport layout - taxiway location F

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
IM	ULAANBAATAR NDB	1.9	302°	450
UDA	ULAANBAATAR VOR/DME	2.5	303°	116
DA	ULAANBAATAR NDB	3.4	304°	520
SER	SERGELEN VOR/DME	11.7	168°	116.90

Departure and arrival routes

Transition altitude

9850ft

Transition level

11800ft

SID end points		distance	outbound heading
RW32
	ANIK2B, ANIK2E, ANIK2F, ANIK3A	112mi	130°
	SER2F, SER1B	12mi	168°
	TANA1B, TANA1F	38mi	240°
	GERE2A, GERE2E	74mi	277°
	MODO2E, MODO3A	118mi	287°
	BUGA2E, BUGA2A	64mi	352°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW14	BATUK (104°)	BATUK 8860ft NOMIN (7mi, 59°) 7550ft
RW14	ERDEN (157°)	ERDEN 9850ft NOMIN (7mi, 239°) 7550ft
RW14	MARAL (126°)	MARAL 8860ft NOMIN (7mi, 127°) 7550ft
	RNAV	NOMIN 7550ft BADAR (5mi, 127°) 6570ft UB14M (5mi, 127°) 4861ft ZMUB (3mi, 124°) BAGAL (8mi, 259°) 6890ft BAGAL (turn) 6890ft
