Airports for X-Plane

Hangzhou - Hangzhou Xiaoshan Intl

Airport details

CountryChina
StateZhejiang
RegionZS
AirspaceShanghai Ctr
MunicipalityHangzhou City
Elevation20ft (6m)
TimezoneGMT +8
Coordinates30.22833, 120.43166
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZSHC
IATA codeHGH
FAA coden/a

Communication

Hangzhou Xiaoshan Intl HANGZHOU ATIS127.250
Hangzhou Xiaoshan Intl HANGZHOU Ground Control121.750
Hangzhou Xiaoshan Intl HANGZHOU Tower118.300
Hangzhou Xiaoshan Intl HANGZHOU Tower130.000
Hangzhou Xiaoshan Intl HANGZHOU Approach AREA 2119.150
Hangzhou Xiaoshan Intl HANGZHOU Approach AREA 1125.550
Hangzhou Xiaoshan Intl HANGZHOU Approach AREA 2126.050

Approach frequencies

ILS-cat-IIRW06110.518.00mi
ILS-cat-IRW25108.518.00mi
ILS-cat-IRW24111.518.00mi
ILS-cat-IRW07110.3518.00mi
3° GSRW25108.518.00mi
3° GSRW24111.518.00mi
3° GSRW06110.518.00mi
3° GSRW07110.3518.00mi
Nearby Points of Interest:
Hangzhou Jianqiao Airport
-
Kuahuqiao
-
Mahakala Statue at Baocheng Temple
-
Stone Pillars of Brahma Temple
-
Jingci Temple
-
Buddhist statues in Ciyunling
-
Buddhist statues in Tianlong Temple
-
Zhakou White Pagoda
-
Autumn Moon on a Quiet Lake
-
Feilaifeng Grottoes
-
Six Mausoleums of the Southern Song Dynasty
-
Former residence of Zhang Taiyan in Hangzhou
-
Tomb of Yu Qian
-
Liangzhu site
-
Nanshan Stone Carving
-
Site of Sizhou Paper Mill
-
Former residence of Mao Dun

Runway info

Runway 06 / 24
 length3396m (11142ft)
 bearing66° / 246°
 width60m (197ft)
 surfaceconcrete
 blast zone119m (390ft) / 121m (397ft)
Runway 07 / 25
 length3605m (11827ft)
 bearing66° / 246°
 width45m (148ft)
 surfaceconcrete

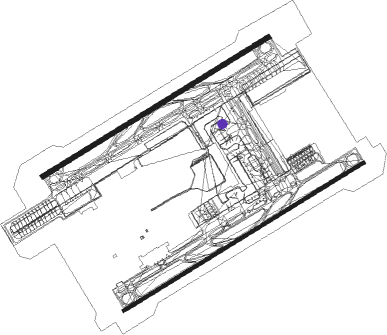

Airport layout - parking location B27


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  A8
 B  B7  C  C2  C3  C4  C5  C6
 C7  C8  D  D2  D3  D4  D5  D6
 D7  D8  J  J6  K  L
Parking locations

 A1  A2  A3  A4  A5  A6  A7  A8
 Apron  B1  B10  B11  B12  B13  B14  B15
 B16  B17  B18  B19  B2  B20  B21  B22
 B23  B24  B25  B26  B27  B28  B29  B3
 B30  B31  B32  B33  B34  B35  B36  B37
 B38  B39  B4  B40  B41  B42  B43  B5
 B6  B7  B8  B9  North  South  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
HGHHANGZHOU VOR/DME1.666°113
DSHDANGSHAN VOR/DME6139°117.30
WYWENYAN NDB13.4246°572
CJJIANQIAO NDB14.4286°324
NXDNANXUN VOR/DME40.1360°116.50
ANDANDONG VOR/DME4188°114.80
SHZSHENGZHOU VOR/DME42.7149°113.40
TOLTONGLU VOR/DME48.8239°115.90
BKLISHE NDB50.9110°227
YEUYIWU VOR/DME57.7204°113.20
CGTCHONGGU VOR/DME70.838°112.50
JTNJIUTING VOR/DME71.445°109.60

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW06
 OKT01D, OKT91D29mi105°
 SUP01D, SUP91D25mi116°
 UGA92D, UGA91D, UGA01D54mi232°
 ELN01D, ELN91D, ELN92D61mi238°
 ABV92D, ABV91D, ABV01D68mi242°
 NIV93D, NIV92D, NIV91D, NIV01D42mi316°
RW07
 OKT91D, OKT01D29mi105°
 SUP91D, SUP01D25mi116°
 UGA92D, UGA01D54mi232°
 ELN01D, ELN92D61mi238°
 ABV01D, ABV92D68mi242°
 NIV92D, NIV01D42mi316°
RW24
 SUP81D, SUP11D25mi116°
 UGA81D, UGA11D54mi232°
 ELN81D, ELN11D61mi238°
 ABV81D, ABV11D68mi242°
 NIV11D, NIV82D, NIV81D42mi316°
RW25
 SUP81D, SUP11D25mi116°
 UGA11D, UGA81D54mi232°
 ELN81D, ELN11D61mi238°
 ABV11D, ABV81D68mi242°
 NIV11D, NIV81D42mi316°

STAR starting pointsdistanceinbound heading
RW06
 UGA91A54.352°
 ELN91A60.758°
 ORE91A74.666°
 IGR91A, IGR92A43.6128°
 OKT91A28.7285°
 SUP91A25.3296°
RW07
 UGA93A, UGA92A54.352°
 ELN92A60.758°
 TOL01A48.859°
 ORE92A74.666°
 IGR01A43.6128°
 OKT92A28.7285°
 SUP92A, SUP01A25.3296°
RW24
 UGA81A54.352°
 ELN81A60.758°
 ABV81A67.962°
 ORE82A74.666°
 IGR83A, IGR81A43.6128°
 ORE81A17.7272°
 OKT81A28.7285°
 SUP81A25.3296°
RW25
 UGA81A, UGA11A54.352°
 ELN11A, ELN81A60.758°
 ABV11A, ABV81A67.962°
 IGR11A, IGR82A43.6128°
 ORE81A17.7272°
 OKT11A, OKT81A28.7285°
 SUP81A, SUP11A25.3296°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABV11AHGHNDBleft55 (235)°> 4930ft1.0min timed230
ABV81AHC306VHFleft247 (67)°> 5910ft1.0min timed230
ABV81AUGAGOVHFright276 (96)°1.0min timed230
ELN11AHGHNDBleft55 (235)°> 4930ft1.0min timed230
ELN81AHC306VHFleft247 (67)°> 5910ft1.0min timed230
ELN81AUGAGOVHFright276 (96)°1.0min timed230
ELN91ADUBGOVHFright219 (39)°1.0min timed230
ELN92ADUBGOVHFright219 (39)°1.0min timed230
IGR11AHC107VHFright328 (148)°1.0min timed230
IGR11AHGHNDBleft55 (235)°> 4930ft1.0min timed230
IGR81AHC107VHFright328 (148)°1.0min timed230
IGR82AHC107VHFright328 (148)°1.0min timed230
IGR82AHC306VHFleft247 (67)°> 5910ft1.0min timed230
IGR91AHC213VHFleft326 (146)°1.0min timed230
OKT91AHC410VHFleft67 (247)°> 7880ft1.0min timed230
OKT92AHC410VHFleft67 (247)°> 7880ft1.0min timed230
ORE81AHC306VHFleft247 (67)°> 5910ft1.0min timed230
ORE81AUGAGOVHFright276 (96)°1.0min timed230
ORE82AHC209VHFright247 (67)°> 8860ft1.0min timed230
ORE92ADUBGOVHFright219 (39)°1.0min timed230
SUP01AHGHNDBleft55 (235)°> 4930ft1.0min timed230
SUP91AHC410VHFleft67 (247)°> 7880ft1.0min timed230
SUP92AHC410VHFleft67 (247)°> 7880ft1.0min timed230
UGA11AHGHNDBleft55 (235)°> 4930ft1.0min timed230
UGA81AHC306VHFleft247 (67)°> 5910ft1.0min timed230
UGA81AUGAGOVHFright276 (96)°1.0min timed230
UGA91ADUBGOVHFright219 (39)°1.0min timed230
UGA92ADUBGOVHFright219 (39)°1.0min timed230
*) magnetic outbound (inbound) holding course
