Airports for X-Plane

Chongqing - Chongqing Jiangbei Intl

Airport details

CountryChina
StateChongqing
RegionZP
AirspaceKunming Ctr
MunicipalityLiangjiang New Area
Elevation1365ft (416m)
TimezoneGMT +8
Coordinates29.72000, 106.64000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZUCK
IATA codeCKG
FAA coden/a

Communication

Chongqing Jiangbei Intl ATIS126.400
Chongqing Jiangbei Intl CHONGQING Ground Control121.750
Chongqing Jiangbei Intl CHONGQING Tower118.200
Chongqing Jiangbei Intl CHONGQING Tower130.000
Chongqing Jiangbei Intl CHONGQING Approach119.550
Chongqing Jiangbei Intl CHONGQING Approach125.200

Approach frequencies

ILS-cat-IIRW02L109.718.00mi
ILS-cat-IIRW21110.518.00mi
ILS-cat-IRW03108.518.00mi
ILS-cat-IRW20R108.118.00mi
ILS-cat-IRW20L110.118.00mi
ILS-cat-IRW02R108.918.00mi
3° GSRW02L109.718.00mi
3° GSRW21110.518.00mi
3° GSRW03108.518.00mi
3° GSRW02R108.918.00mi
3° GSRW20L110.118.00mi
3° GSRW20R108.118.00mi
Nearby Points of Interest:
Luohan Temple
-
Diaoyu Fortress

Runway info

Runway 03 / 21
 length3822m (12539ft)
 bearing19° / 199°
 width62m (205ft)
 surfaceconcrete
 blast zone112m (367ft) / 120m (394ft)
Runway 02R / 20L
 length3621m (11880ft)
 bearing19° / 199°
 width47m (154ft)
 surfaceconcrete
 displ threshold193m (633ft) / 207m (679ft)
 blast zone110m (361ft) / 109m (358ft)
Runway 02L / 20R
 length3209m (10528ft)
 bearing19° / 199°
 width47m (154ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

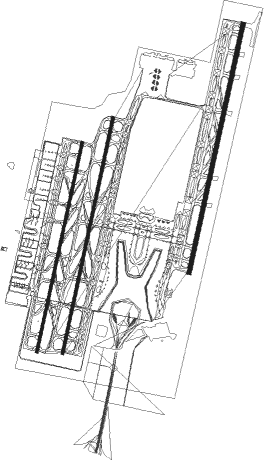

Airport layout


Taxiway locations

 A  B  B1  C  D  E  F  G
 H  I  Z1  Z2  Z3
Parking locations

 Apron  Northern  Southern  T1  T2  T3

Nearby beacons

codeidentifierdistbearingfrequency
CKGJIANGBEI VOR/DME1.727°116.10
OSTONGJINGCHANG NDB13.357°241
SHCCHANGSHENGQIAO VOR/DME17.9163°111
DSHELIUSHUI NDB30.723°250
FLGFULING VOR/DME38.592°114
QJGQIJIANG VOR/DME40.1178°112.70

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW02L
 SOSL1Z, SOS01D49mi29°
 GUTV1Z56mi80°
 UNRI1Z, UNRI4Z59mi164°
 PINA1Z, PIN01D54mi339°
RW02R
 SOS02D, SOSL2Z49mi29°
 GUTV2Z56mi80°
 UNRI5Z, UNRI2Z59mi164°
 PINA2Z, PIN02D54mi339°
RW03
 SOSL3Z49mi29°
 GUTV3Z56mi80°
 UNRI3Z59mi164°
 PINA3Z54mi339°
RW20L
 SOSL5Y, SOSL2Y, SOS12D49mi29°
 GUTV2Y, GUT12D56mi80°
 UNR12D, UNRI2Y59mi164°
 PINA5Y, PINA2Y, PIN12D54mi339°
RW20R
 SOSL4Y, SOSL1Y, SOS11D49mi29°
 GUTV1Y, GUT11D56mi80°
 UNR11D, UNRI1Y59mi164°
 PINA1Y, PINA4Y, PIN11D54mi339°
RW21
 SOSL3Y, SOS13D49mi29°
 GUTV3Y, GUT13D56mi80°
 UNRI3Y, UNR13D59mi164°
 PINA3Y, PIN13D54mi339°

STAR starting pointsdistanceinbound heading
RW02 (ALL)
 AKB01A, AKBE1J, AKBE2J, AKBE3J45.9196°
 OPA01A, OPAM1J, OPAM2J48.2274°
 QJG3J, QJG2J, QJG1J, QJG02A, QJG01A40.1358°
RW03
 AKBE3J, AKBE2J, AKBE1J, AKB01A45.9196°
 OPA01A, OPAM1J, OPAM2J48.2274°
 QJG3J, QJG2J, QJG1J, QJG02A, QJG01A40.1358°
RW20 (ALL)
 AKBE8K, AKBE9K45.9196°
 OPAM9K, OPAM8K48.2274°
 QJG7K, QJG8K, QJG9K40.1358°
RW21
 AKBE9K, AKBE8K45.9196°
 OPAM8K, OPAM9K48.2274°
 QJG7K, QJG8K, QJG9K40.1358°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AKB01ASHCNDBright75 (255)°> 5910ft1.0min timedICAO rules
AKBE1JAKBEKVHFright29 (209)°> 7880ft1.0min timedICAO rules
AKBE2JAKBEKVHFright29 (209)°> 7880ft1.0min timedICAO rules
AKBE3JAKBEKVHFright29 (209)°> 7880ft1.0min timedICAO rules
AKBE8KAKBEKVHFright29 (209)°> 7880ft1.0min timedICAO rules
AKBE9KAKBEKVHFright29 (209)°> 7880ft1.0min timedICAO rules
OPA01ASHCNDBright75 (255)°> 5910ft1.0min timedICAO rules
OPAM1JOPAMUVHFleft76 (256)°11800ft - 60000ftDME 13.5miICAO rules
OPAM2JOPAMUVHFleft76 (256)°11800ft - 60000ftDME 13.5miICAO rules
OPAM8KOPAMUVHFleft76 (256)°11800ft - 60000ftDME 13.5miICAO rules
OPAM9KOPAMUVHFleft76 (256)°11800ft - 60000ftDME 13.5miICAO rules
QJG01AQJGNDBleft180 (0)°11800ft - 60000ftDME 11.9miICAO rules
QJG01ASHCNDBright75 (255)°> 5910ft1.0min timedICAO rules
QJG02AQJGNDBleft180 (0)°11800ft - 60000ftDME 11.9miICAO rules
QJG1JQJGNDBleft180 (0)°11800ft - 60000ftDME 11.9miICAO rules
QJG2JQJGNDBleft180 (0)°11800ft - 60000ftDME 11.9miICAO rules
QJG3JQJGNDBleft180 (0)°11800ft - 60000ftDME 11.9miICAO rules
QJG7KQJGNDBleft180 (0)°11800ft - 60000ftDME 11.9miICAO rules
QJG8KQJGNDBleft180 (0)°11800ft - 60000ftDME 11.9miICAO rules
QJG9KQJGNDBleft180 (0)°11800ft - 60000ftDME 11.9miICAO rules
*) magnetic outbound (inbound) holding course
