Airports for X-Plane

Chengdu - Chengdu Shuangliu Intl

Airport details

CountryChina
StateSichuan
RegionZP
AirspaceKunming Ctr
MunicipalityChengdu City
Elevation1627ft (496m)
TimezoneGMT +8
Coordinates30.57833, 103.94666
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZUUU
IATA codeCTU
FAA coden/a

Communication

Chengdu Shuangliu Intl ATIS - Arrival126.450
Chengdu Shuangliu Intl ATIS - Departure128.600
Chengdu Shuangliu Intl CHENGDU DELIVERY121.600
Chengdu Shuangliu Intl CHENGDU Ground Control 02R/20L121.750
Chengdu Shuangliu Intl CHENGDU Ground Control 02L/20R121.850
Chengdu Shuangliu Intl CHENGDU Tower 02R/20L130.350
Chengdu Shuangliu Intl CHENGDU Tower 02L/20R123.000
Chengdu Shuangliu Intl CHENGDU Approach AREA 3119.250
Chengdu Shuangliu Intl CHENGDU Approach AREA 4124.750
Chengdu Shuangliu Intl CHENGDU Approach AREA 1124.850
Chengdu Shuangliu Intl CHENGDU Approach AREA 5119.425
Chengdu Shuangliu Intl CHENGDU Approach AREA 2119.700

Approach frequencies

ILS-cat-IIRW02R108.718.00mi
ILS-cat-IIRW02L111.118.00mi
ILS-cat-IRW20R109.118.00mi
ILS-cat-IRW20L109.718.00mi
3° GSRW20R109.118.00mi
3° GSRW02R108.718.00mi
3° GSRW20L109.718.00mi
3° GSRW02L111.118.00mi
Nearby Points of Interest:
Monument to the Martyrs of the Railway Protection Movement
-
Wenshu Monastery
-
Zhaojue Temple
-
Qingchengshan-Dujiangyan National Park
-
Dujiangyan

Runway info

Runway 02L / 20R
 length3614m (11857ft)
 bearing25° / 205°
 width45m (148ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)
Runway 02R / 20L
 length3614m (11857ft)
 bearing25° / 205°
 width60m (197ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)

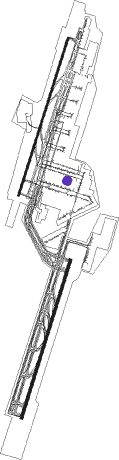

Airport layout - parking location 303


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  A7
 A8  A9  B  B1  B10  B2  B4  B5
 B6  B7  B8  B9  C  C1  C5  C6
 C8  D  D1  D2  D3  D5  E  E1
 E2  E3  E4  E8  E9  F  M  N
 T10
Parking locations

 101  102  103  104  105  106  107  108
 109  110  111  112  113  114  115  116
 117  118  119  120  121  122  123  124
 125  126  127  128  129  130  131  132
 134  135  136  137  138  139  140  141
 142  143  144  145  146  147  149  150
 151  152  153  154  155  156  157  158
 159  160  161  162  164  165  166  167
 168  169  170  171  172  173  174  175
 176  177  201  202  203  204  205  206
 207  208  209  210  211  212  213  214
 215  216  217  218  219  224  225  226
 227  228  229  230  231  232  233  234
 235  236  237  238  239  301  302  303
 304  305  306  307  308  309  310  311
 312  313  313L  313R  314L  314R  315  315L
 315R  316  316L  316R  317  317L  317R  318
 318L  318R  319  319L  319R  320  321  322
 323  324  326  326L  326R  327  328  329
 330  331  332  333  334  335  336  337
 338  339  340  341  342  343  345  346
 347  348  349  350  351  352  353  354
 355  356  357  357L  357R  358  359  360
 361  362  362L  362R  363  364  364L  364R
 365  401  402  403  404  405  406  407
 408  409  410  420  421  422  423  424
 425  426  501  502  503  504  505  505L
 505R  506  506L  506R  507  507L  507R  601
 602  603  604  605  606  607  608  609
 610  611  612  613  614  615  616  617
 618  619  701  702  703  704  705  706
 707  708  709  710  711  CCA  COMAC

Nearby beacons

codeidentifierdistbearingfrequency
CTUSHUANGLIU VOR/DME0.3214°115.70
ZSHUANGLIU (CHENGDU) NDB1.5205°396
ZWCHENGDU NDB5.1206°260
BHSBAIHESI VOR/DME13.7105°117.90
CZHCHONGZHOU VOR/DME14284°114.50
HLCHUILONG VOR/DME21.1222°115.95
WFXWUFENGXI VOR/DME28.287°117.10
JTGJINTANG VOR/DME28.857°115.40
ZGAZHUGAO VOR/DME40.589°115.25
CDXDEXIN VOR/DME46.133°116.35
JYAJINGYAN VOR/DME48.6173°114.65
ZYGZIYANG VOR/DME56.1129°112.10
MYGMIANYANG VOR/DME65.343°114.80

Departure and arrival routes

Transition altitude9800ft
Transition level11800ft
SID end pointsdistanceoutbound heading
RW02L
 BOK01D, BOKI8T, BOKI9W74mi19°
 GURE9W, GURE8T, GUR01D83mi65°
 UBRA9W, UBR01D78mi80°
 IDB01D, IDBO9W88mi144°
 LUV01D, LUVE9W72mi176°
 MUM01D, MUMG9W, MUMG8T, MUM02D50mi284°
RW02R
 BOKI9X, BOK21D74mi19°
 GUR21D, GURE9X83mi65°
 UBRA9X, UBR21D78mi80°
 IDB21D, IDBO9X88mi144°
 LUVE9X, LUV21D72mi176°
 MUM21D, MUMG9X50mi284°
RW20L
 BOKI9Y, BOK31D74mi19°
 GUR31D, GURE9Y83mi65°
 UBRA9Y, UBR31D78mi80°
 IDB31D, IDBO9Y88mi144°
 LUVE9Y, LUV31D72mi176°
 MUM31D, MUMG9Y50mi284°
RW20R
 BOKI9Z, BOK11D74mi19°
 GUR11D, GURE9Z83mi65°
 UBR11D, UBRA9Z78mi80°
 IDBO9Z, IDB11D88mi144°
 LUVE9Z, LUV11D72mi176°
 MUM11D, MUMG9Z50mi284°

STAR starting pointsdistanceinbound heading
RW02 (ALL)
 LADU9J, LAD01A48.192°
 MEXA8J, MEXA6J, MEX02A80.4210°
 AKD02A, AKDI8J, AKDI6J92.8229°
 EKOK8J, EKOK6J73.4267°
RW02L
 MEX01A, EKO01A, AKD01A14.8333°
 IGN01A48.6353°
 AKDI9J, EKOK9J, IGNA9J, MEXA9J16.3357°
RW02R
 MEX01A, EKO01A, AKD01A14.8333°
 IGN01A48.6353°
 AKDI9J, MEXA9J, IGNA9J, EKOK9J16.3357°
RW20 (ALL)
 LAD11A48.192°
 MEXA9L, MEX12A, MEX11A80.4210°
 AKDI9L, AKD12A, AKD11A92.8229°
 EKOK9L, EKO11A73.4267°
 IGN11A80.1346°
RW20L
 MEXA6L, LADU9L, IGNA9L, AKDI6L10.5166°
RW20R
 MEXA6L, LADU9L, IGNA9L, AKDI6L10.5166°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AKD01ABHSNDBleft82 (262)°> 4930ft1.0min timedICAO rules
AKD01AWFX30VHFleft16 (196)°> 11800ft1.0min timedICAO rules
AKD11AD029PVHFright29 (209)°> 7880ft1.0min timedICAO rules
AKDI6JUU802VHFleft33 (213)°> 9850ft1.0min timedICAO rules
AKDI6LUU935VHFright65 (245)°> 9850ft1.0min timedICAO rules
AKDI8JUU910VHFright24 (204)°> 8860ft1.0min timedICAO rules
AKDI9JUU802VHFleft33 (213)°> 9850ft1.0min timedICAO rules
AKDI9LUU821VHFright24 (204)°> 9850ft1.0min timedICAO rules
EKO01ABHSNDBleft82 (262)°> 4930ft1.0min timedICAO rules
IGN11AD204NVHFleft131 (311)°> 8860ft1.0min timedICAO rules
IGN11AHLCNDBright204 (24)°> 7880ft1.0min timedICAO rules
IGNA9JUU718VHFleft147 (327)°> 8860ft1.0min timedICAO rules
IGNA9LHLCNDBright204 (24)°> 7880ft1.0min timedICAO rules
IGNA9LUU718VHFleft147 (327)°> 8860ft1.0min timedICAO rules
LAD01ACZHNDBleft278 (98)°> 12800ft1.0min timedICAO rules
LAD11ACZHNDBleft278 (98)°> 12800ft1.0min timedICAO rules
LADU9JCZHNDBleft278 (98)°> 12800ft1.0min timedICAO rules
LADU9LCZHNDBleft278 (98)°> 12800ft1.0min timedICAO rules
MEX01ABHSNDBleft82 (262)°> 4930ft1.0min timedICAO rules
MEX01AWFX30VHFleft16 (196)°> 11800ft1.0min timedICAO rules
MEX11AD029PVHFright29 (209)°> 7880ft1.0min timedICAO rules
MEXA6JUU802VHFleft33 (213)°> 9850ft1.0min timedICAO rules
MEXA6LUU935VHFright65 (245)°> 9850ft1.0min timedICAO rules
MEXA8JUU910VHFright24 (204)°> 8860ft1.0min timedICAO rules
MEXA9JUU802VHFleft33 (213)°> 9850ft1.0min timedICAO rules
MEXA9LUU821VHFright24 (204)°> 9850ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
