Airports for X-Plane

Manchester - Manchester Intl

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityManchester
Elevation250ft (76m)
TimezoneGMT +0
Coordinates53.35389, -2.27500
Magnetic var0.2°
Typeland
Available sinceX-Plane v10.40
ICAO codeEGCC
IATA codeMAN
FAA coden/a

Communication

Manchester Intl ATIS121.980
Manchester Intl ATIS121.180
Manchester Intl DEL121.705
Manchester Intl Ground Control121.855
Manchester Intl Tower118.630
Manchester Intl Tower119.405
Manchester Intl Approach SOUTH118.580
Manchester Intl Approach NORTH135.005
Manchester Intl Departure NORTH135.005
Manchester Intl Departure SOUTH118.580

Approach frequencies

ILS-cat-IIIRW05L109.518.00mi
ILS-cat-IIIRW23R109.518.00mi
ILS-cat-IRW05R111.5518.00mi
3° GSRW05R111.5518.00mi
3° GSRW05L109.518.00mi
3° GSRW23R109.518.00mi
Nearby Points of Interest:
Pownall Hall
-
Saltersley Hall
-
Hale Chapel
-
Halecroft
-
Hawthorn Hall
-
Royd House
-
Handforth Hall
-
Fulshaw Hall
-
Ashley Hall
-
Mobberley Old Hall
-
Wythenshawe Bus Garage
-
Rose Hill, Northenden
-
Wythenshawe Hall
-
Barnes Hospital
-
Dean Row Chapel, Wilmslow
-
Chorley Old Hall
-
Millington Hall
-
Dukenfield Hall
-
Abney Hall
-
Moseley Old Hall, Cheadle
-
Tatton Old Hall
-
The Towers
-
Didsbury Campus
-
Baptist Chapel, Great Warford
-
Parrs Wood House

Runway info

Runway 05R / 23L
 length3039m (9970ft)
 bearing64° / 244°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 185m (607ft)
 blast zone8m (26ft) / 238m (781ft)
Runway 05L / 23R
 length3045m (9990ft)
 bearing64° / 244°
 width50m (164ft)
 surfaceasphalt
 displ threshold425m (1394ft) / 189m (620ft)
 blast zone0m (0ft) / 56m (184ft)

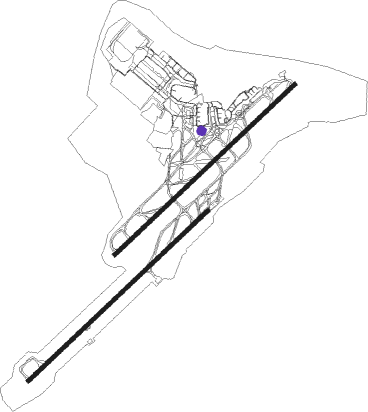

Airport layout - parking location 12


Taxiway locations
Parking locations

Recommended scenery file

Type3D
AuthorJulian
Released27 Mar 2025
Features› has taxi route
› Laminar internal use
› has ground routes

Nearby beacons

codeidentifierdistbearingfrequency
MCTMANCHESTER VOR/DME0.476°113.55
LPLLIVERPOOL NDB16.1268°349
WHIWHITEGATE NDB16.1244°368
POLPOLE HILL VOR/DME24.224°112.10
HAWHAWARDEN NDB27.3256°340
TNTTRENT VOR/DME28.2116°115.70
WALWALLASEY VOR/DME30.8273°114.10
WTNWARTON NDB31.5305°337
WTNWARTON TACAN31.8302°113.20
SWBSHAWBURY VOR/DME36.1215°116.80
BPLBLACKPOOL NDB36.8299°318
TNLTATENHILL NDB37.1137°327
LBALEEDS BRADFORD NDB37.851°402
EMWEAST MIDLANDS NDB43.2123°393
WBAWOLVERHAMPTON NDB50.3179°356
WOLDME50.3179°108.60
WPLWELSHPOOL NDB53.8231°323
BHXBIRMINGHAM NDB57.2150°406
WLBARROW (WALNEY ISLAND) NDB58.2308°385
LEELEEMING TACAN62.338°112.60
HONHONILEY VOR/DME63.8148°113.65

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW05L
 POL4S24mi24°
 DESI1S17mi66°
 LIST2S13mi160°
 MONT1S43mi243°
 ASMI1S15mi284°
RW05R
 POL1Z24mi24°
 DESI1Z17mi66°
 LIST2Z13mi160°
 MONT1Z43mi243°
 ASMI1Z15mi284°
RW23L
 POL1Y24mi24°
 LIST2Y13mi160°
 SANB1Y13mi195°
 MONT1Y43mi243°
 KUXE1Y16mi256°
 EKLA1Y21mi260°
RW23R
 POL5R24mi24°
 LIST2R13mi160°
 SANB1R13mi195°
 MONT1R43mi243°
 KUXE1R16mi256°
 EKLA1R21mi260°

STAR starting pointsdistanceinbound heading
ALL
 MIRS1A36.272°
 DALE1G, ROSU1G85.3266°
 DALE1F, ROSU1F82.8272°
 DAYN2A28.2296°
 DAYN1B56.9297°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW23LDOMIG (245°)DOMIG 3500ft
C23LI (5mi, 245°) 3500ft
RW23LOSNAP (260°)OSNAP 3500ft
C23LI (5mi, 307°) 3500ft
RW23LTINVA (225°)TINVA 3500ft
C23LI (5mi, 126°) 3500ft
 RNAVC23LI 3500ft
C23LF (3mi, 244°) 3500ft
EGCC (10mi, 245°) 277ft
(3206mi, 178°) 660ft
(turn) 3500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DALE1FDALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DALE1GDALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DALE2ADALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DALE2BDALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DALE2EDALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DALE4DDALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DAYN1BDAYNEVHFright132 (312)°> 7000ftDME 3.0miICAO rules
DAYN2ADAYNEVHFright132 (312)°> 7000ftDME 3.0miICAO rules
MIRS1AMIRSIVHFright241 (61)°6000ft - 14000ftDME 5.0miICAO rules
MIRS2CMIRSIVHFright241 (61)°6000ft - 14000ftDME 5.0miICAO rules
MIRS2DMIRSIVHFright241 (61)°6000ft - 14000ftDME 5.0miICAO rules
MIRS3BMIRSIVHFright241 (61)°6000ft - 14000ftDME 5.0miICAO rules
ROSU1FROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
ROSU1GROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
ROSU2AROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
ROSU2BROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
ROSU2EROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
ROSU4DROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Actual weather data

METAR EGCC 092320Z AUTO VRB02KT 9999 NCD 11/02 Q1021
TAF EGCC 092255Z 1000/1106 13006KT CAVOK PROB30 TEMPO 1003/1007 8000 PROB30 TEMPO 1020/1102 11015G25KT

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
