Airports for X-Plane

Manchester - Manchester Intl

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityManchester
Elevation250ft (76m)
TimezoneGMT +0
Coordinates53.35389, -2.27500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGCC
IATA codeMAN
FAA coden/a

Communication

Manchester Intl ATIS121.980
Manchester Intl ATIS121.180
Manchester Intl Ground Control121.855
Manchester Intl DEL121.705
Manchester Intl Tower118.630
Manchester Intl Tower119.405
Manchester Intl Approach NORTH135.005
Manchester Intl Approach SOUTH118.580
Manchester Intl Departure NORTH135.005
Manchester Intl Departure SOUTH118.580

Approach frequencies

ILS-cat-IIIRW05L109.518.00mi
ILS-cat-IIIRW23R109.518.00mi
ILS-cat-IRW05R111.5518.00mi
3° GSRW05R111.5518.00mi
3° GSRW05L109.518.00mi
3° GSRW23R109.518.00mi

Runway info

Runway 05R / 23L
 length3039m (9970ft)
 bearing64° / 244°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 185m (607ft)
 blast zone8m (26ft) / 238m (781ft)
Runway 05L / 23R
 length3045m (9990ft)
 bearing64° / 244°
 width50m (164ft)
 surfaceasphalt
 displ threshold425m (1394ft) / 189m (620ft)
 blast zone0m (0ft) / 56m (184ft)

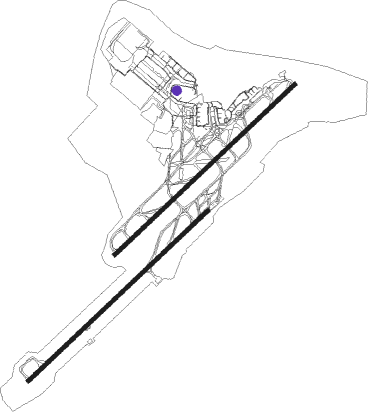

Airport layout - parking location 32


Taxiway locations

 A1  A2  A3  A4  AF1  AG1  B  B1
 B2  B3  B4  B5  B6  C2  D1  D2
 D3  DZ1  E3  F1  F2  FZ1  G1  G2
 G3  G4  H1  H2  HZ1  J1  J2  J3
 J4  K1  K2  K3  K4  K5  KC  L1
 L2  M1  NC1  NC2  P1  P2  P3  P4
 T1  U1  U2  V1  V3  V4  V5  V6
 V7  VA1  VA2  VB1  VB2  VC1  VC2  VD1
 VD2  W1  W2  Y1
Parking locations

 1  10  101  103  104  105  106  106R
 107  108  109  11  110  110L  111  112
 112R  113  114  116  116L  12  15  16
 17  18  2  202  203  204  205  206
 207  208  209  21  210  211  22  23
 24  25  26  27  28  29  31  32
 4  41  42  43  44  47  48  49
 5  50  51  52  53  54  55  6
 7  8  807  809  811  9  901  903
 905  907  909  911  913  915  917  919
 925  927  929  Cargo  East  GA

Nearby beacons

codeidentifierdistbearingfrequency
MCTMANCHESTER VOR/DME0.476°113.55
LPLLIVERPOOL NDB16.1268°349
WHIWHITEGATE NDB16.1244°368
POLPOLE HILL VOR/DME24.224°112.10
HAWHAWARDEN NDB27.3256°340
TNTTRENT VOR/DME28.2116°115.70
WALWALLASEY VOR/DME30.8273°114.10
WTNWARTON NDB31.5305°337
WTNWARTON TACAN31.8302°113.20
SWBSHAWBURY VOR/DME36.1215°116.80
BPLBLACKPOOL NDB36.8299°318
TNLTATENHILL NDB37.1137°327
LBALEEDS BRADFORD NDB37.851°402
EMWEAST MIDLANDS NDB43.2123°393
WBAWOLVERHAMPTON NDB50.3179°356
WOLDME50.3179°108.60
WPLWELSHPOOL NDB53.8231°323
BHXBIRMINGHAM NDB57.2150°406
WLBARROW (WALNEY ISLAND) NDB58.2308°385
LEELEEMING TACAN62.338°112.60
HONHONILEY VOR/DME63.8148°113.65

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW05L
 POL4S24mi24°
 DESI1S17mi66°
 LIST2S13mi160°
 MONT1S43mi243°
 ASMI1S15mi284°
RW05R
 POL1Z24mi24°
 DESI1Z17mi66°
 LIST2Z13mi160°
 MONT1Z43mi243°
 ASMI1Z15mi284°
RW23L
 POL1Y24mi24°
 LIST2Y13mi160°
 SANB1Y13mi195°
 MONT1Y43mi243°
 KUXE1Y16mi256°
 EKLA1Y21mi260°
RW23R
 POL5R24mi24°
 LIST2R13mi160°
 SANB1R13mi195°
 MONT1R43mi243°
 KUXE1R16mi256°
 EKLA1R21mi260°

STAR starting pointsdistanceinbound heading
ALL
 MIRS1A36.272°
 DALE1G, ROSU1G85.3266°
 DALE1F, ROSU1F82.8272°
 DAYN2A28.2296°
 DAYN1B56.9297°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW23LDOMIG (245°)DOMIG 3500ft
C23LI (5mi, 245°) 3500ft
RW23LOSNAP (260°)OSNAP 3500ft
C23LI (5mi, 307°) 3500ft
RW23LTINVA (225°)TINVA 3500ft
C23LI (5mi, 126°) 3500ft
 RNAVC23LI 3500ft
C23LF (3mi, 244°) 3500ft
EGCC (10mi, 245°) 277ft
(3206mi, 178°) 660ft
(turn) 3500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DALE1FDALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DALE1GDALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DALE2ADALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DALE2BDALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DALE2EDALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DALE4DDALEYVHFleft328 (148)°7000ft - 14000ftDME 4.7miICAO rules
DAYN1BDAYNEVHFright132 (312)°> 7000ftDME 3.0miICAO rules
DAYN2ADAYNEVHFright132 (312)°> 7000ftDME 3.0miICAO rules
MIRS1AMIRSIVHFright241 (61)°6000ft - 14000ftDME 5.0miICAO rules
MIRS2CMIRSIVHFright241 (61)°6000ft - 14000ftDME 5.0miICAO rules
MIRS2DMIRSIVHFright241 (61)°6000ft - 14000ftDME 5.0miICAO rules
MIRS3BMIRSIVHFright241 (61)°6000ft - 14000ftDME 5.0miICAO rules
ROSU1FROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
ROSU1GROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
ROSU2AROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
ROSU2BROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
ROSU2EROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
ROSU4DROSUNVHFright352 (172)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
