Amsterdam - Schiphol

Airport details

Country	Netherlands
State	North Holland
Region	EH
Airspace	Amsterdam Ctr
Municipality	Haarlemmermeer
Elevation	-11ft (-3m)
Timezone	GMT +1
Coordinates	52.30806, 4.76417
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	EHAM
IATA code	AMS
FAA code	n/a

Communication

Schiphol ATIS ARR	132.980
Schiphol ATIS Departure	122.200
Schiphol Clearance DEL	121.975
Schiphol Ground Control	121.900
Schiphol Ground Control	121.700
Schiphol Ground Control	121.800
Schiphol Tower 18C/36C	118.100
Schiphol Tower 06/24	119.900
Schiphol Tower	119.225
Schiphol Approach	119.050
Schiphol Departure	121.205

Approach frequencies

ILS-cat-III	RW06	110.55	18.00mi
ILS-cat-III	RW36C	108.75	18.00mi
ILS-cat-III	RW27	111.55	18.00mi
ILS-cat-III	RW18R	110.1	18.00mi
ILS-cat-III	RW18C	109.5	18.00mi
ILS-cat-III	RW36R	111.95	18.00mi
ILS-cat-I	RW22	109.15	18.00mi
3° GS	RW18C	109.5	18.00mi
3° GS	RW18R	110.1	18.00mi
3° GS	RW22	109.15	18.00mi
3° GS	RW36C	108.75	18.00mi
3° GS	RW06	110.55	18.00mi
3° GS	RW27	111.55	18.00mi
3° GS	RW36R	111.95	18.00mi

Nearby Points of Interest:

Halte Aalsmeer Oost

Bridge 514

Bridge 518

Politiebureautje Sloten

Sint-Franciscus van Saleskerk

Raadhuis van Aalsmeer

Oude Kantongerecht Hoofddorp

Hoofdvaartkerk (Hoofddorp)

Bridge 530

Halte Bovenkerk

Hangbrugmaisonettes

Sint-Annakerk

Bridge 532

Bridge 504

Office buildings in Amstelveen

Bridge 507

Bridge 591

Bridge 592

Piet Römerbrug

Verrijzenis van Onze Heer Jezus Christuskerk

Telefooncentrale Amsterdam-Slotervaart

National Aerospace Laboratory

Sloterhof tower

Bridge 705

Sloterhof

Runway info

Runway 09 / 27
	length	3444m (11299ft)
	bearing	88° / 268°
	width	45m (148ft)
	surface	asphalt
	displ threshold	89m (292ft) / 0m (0ft)
Runway 18L / 36R
	length	3396m (11142ft)
	bearing	185° / 5°
	width	45m (148ft)
	surface	asphalt
	displ threshold	574m (1883ft) / 0m (0ft)
Runway 18C / 36C
	length	3299m (10823ft)
	bearing	185° / 5°
	width	45m (148ft)
	surface	asphalt
	displ threshold	0m (0ft) / 450m (1476ft)
Runway 18R / 36L
	length	3798m (12461ft)
	bearing	185° / 5°
	width	60m (197ft)
	surface	asphalt
	displ threshold	270m (886ft) / 0m (0ft)
Runway 06 / 24
	length	3436m (11273ft)
	bearing	69° / 249°
	width	45m (148ft)
	surface	asphalt
	displ threshold	250m (820ft) / 0m (0ft)
Runway 04 / 22
	length	2021m (6631ft)
	bearing	55° / 235°
	width	45m (148ft)
	surface	asphalt
	blast zone	0m (0ft) / 255m (837ft)

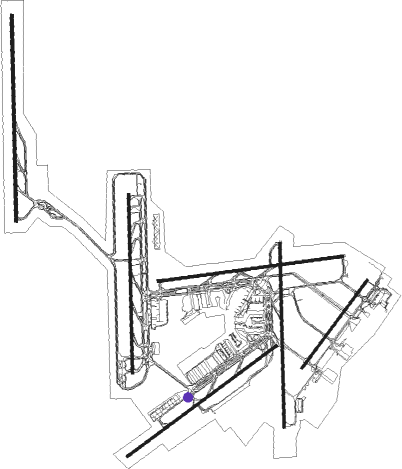

Airport layout - taxiway location R

Taxiway locations

Parking locations

Recommended scenery file

Type	3D
Author	Julian
Released	26 Feb 2024
Included since	X-Plane v12.1.2
Features	› has ATC flow › has taxi route › has ground routes

Nearby beacons

code	identifier	dist	bearing	frequency
SPL	SCHIPHOL (AMSTERDAM) VOR/DME	1.5	329°	108.40
AMS	DME	2.6	293°	113.95
PAM	PAMPUS VOR/DME	12.1	85°	117.80
SPY	DME	14.3	21°	113.30
FRT	DME	18.2	179°	117.15
RTM	ROTTERDAM VOR/DME	22.6	220°	110.40
FRO	DME	28.6	79°	111.40
HDR	HELDER DME	35.9	0°	115.55
GZR	GILZE-RIJEN TACAN	45	167°	116.40
VKL	VOLKEL TACAN	52.4	125°	108.30
WDT	WOENSDRECHT TACAN	53.9	206°	115
EHV	EINDHOVEN TACAN	56.3	145°	117.20
LWD	LEEUWARDEN TACAN	65.6	47°	114.70

Departure and arrival routes

Transition altitude

3000ft

SID end points		distance	outbound heading
RW04
	ANDI3F	32mi	50°
	ARNE3F	50mi	99°
	REND2F	44mi	107°
	LOPI2F	26mi	136°
	KUDA2F	56mi	204°
	VOLA2F	50mi	256°
	BERG2F	30mi	317°
RW06
	ANDI3R, ANDI2T	32mi	50°
	ARNE3R, ARNE3T	50mi	99°
	REND2T, REND2R	44mi	107°
	LOPI2R	26mi	136°
	KUDA2T, KUDA2R	56mi	204°
	VOLA2R	50mi	256°
	BERG3R	30mi	317°
RW09
	ANDI2N	32mi	50°
	ARNE3N	50mi	99°
	REND2N	44mi	107°
	LOPI2N	26mi	136°
	KUDA2N	56mi	204°
	VALK5M, IDRI2N	50mi	256°
	BERG3N	30mi	317°
RW18C
	TORG2X, BETU5Y	32mi	50°
	ELPA3X	50mi	99°
	EDUP3X	44mi	107°
	ROVE3X	26mi	136°
	LARA2X	56mi	204°
	DENA6X	50mi	256°
	WISP3X	30mi	317°
RW18L
	ANDI3E	32mi	50°
	ARNE4E	50mi	99°
	REND2E	44mi	107°
	LOPI4E	26mi	136°
	KUDA2E	56mi	204°
	VALK5E	50mi	256°
	BERG4E	30mi	317°
RW22
	ANDI3G	32mi	50°
	ARNE4G	50mi	99°
	REND2G	44mi	107°
	LOPI2G	26mi	136°
	KUDA2G	56mi	204°
	VALK3G	50mi	256°
	BERG2G	30mi	317°
RW24
	AND2SY, ANDI2S, SPY4KY, SPY4K	32mi	50°
	ARNE3S, ARN3SY	50mi	99°
	REN2SY, REND2S	44mi	107°
	LOP3SY, LOPI3S	26mi	136°
	KUD3SY, KUDA3S	56mi	204°
	VALK3S	50mi	256°
	BERG2S	30mi	317°
RW27
	SPY2P	32mi	50°
	ARNE3P	50mi	99°
	REND2P	44mi	107°
	LOPI2P	26mi	136°
	KUDA2P	56mi	204°
	VOLA2P	50mi	256°
	BERG2P	30mi	317°
RW36C
	NOPS3W	32mi	50°
	NYKE5W	50mi	99°
	IVLU4W	44mi	107°
	OGIN4W	26mi	136°
	WOOD3W	56mi	204°
RW36L
	SPY4V	32mi	50°
	ARNE2Z, ARNE2V	50mi	99°
	REND2V, REND2Z	44mi	107°
	LOPI4V, LOPI2Z	26mi	136°
	KUDA2V, KUDA2Z	56mi	204°
	VOLA2Z, VOLA3V	50mi	256°
	BERG5V, BERG2Z	30mi	317°

STAR starting points		distance	inbound heading
ALL
	HELE2A	72.4	40°
	DENU3A	76.3	46°
	REDF1A	84.5	85°
	LAMS2A	69.5	103°
	MOLI2A	69.1	107°
	TOPA2A	78.8	132°
	EEL1A, EEL1B	86.1	246°
	NORK2B, NORK2A	81.5	272°
	RKN2A, RKN2B	74.3	275°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW04	ARTIP (256°)	ARTIP SPL (32mi, 258°) AM201 (10mi, 174°) AM202 (4mi, 235°) AM203 (3mi, 298°) NELFE (2mi, 346°) 2000ft
RW04	RIVER (58°)	RIVER SPL (34mi, 56°) SPL (turn) AM201 (10mi, 174°) AM202 (4mi, 235°) AM203 (3mi, 298°) NELFE (2mi, 346°) 2000ft
RW04	SUGOL (105°)	SUGOL SPL (31mi, 104°) AM201 (10mi, 174°) AM202 (4mi, 235°) AM203 (3mi, 298°) NELFE (2mi, 346°) 2000ft
	RNAV	NELFE 2000ft AM204 (3mi, 55°) 2000ft EHAM (6mi, 47°) 37ft AM205 (13mi, 59°) 2000ft
RW06	ARTIP (256°)	ARTIP SPL (32mi, 258°) AM101 (4mi, 278°) AM102 (10mi, 249°) AM103 (3mi, 134°) OSRON (2mi, 101°) 2000ft
RW06	RIVER (58°)	RIVER SPL (34mi, 56°) AM101 (4mi, 278°) AM102 (10mi, 249°) AM103 (3mi, 134°) OSRON (2mi, 101°) 2000ft
RW06	SUGOL (105°)	SUGOL SPL (31mi, 104°) SPL (turn) AM101 (4mi, 278°) AM102 (10mi, 249°) AM103 (3mi, 134°) OSRON (2mi, 101°) 2000ft
	RNAV	OSRON 2000ft AM609 (3mi, 69°) 2000ft EHAM (8mi, 66°) 39ft AM104 (6mi, 72°) AM105 (5mi, 69°) 2000ft
RW09	ARTIP (256°)	ARTIP SPL (32mi, 258°) AM220 (6mi, 299°) AM221 (7mi, 268°) AM222 (3mi, 175°) IFTAZ (2mi, 123°) 2000ft
RW09	RIVER (58°)	RIVER SPL (34mi, 56°) SPL (turn) AM220 (6mi, 299°) AM221 (7mi, 268°) AM222 (3mi, 175°) IFTAZ (2mi, 123°) 2000ft
RW09	SUGOL (105°)	SUGOL SPL (31mi, 104°) SPL (turn) AM220 (6mi, 299°) AM221 (7mi, 268°) AM222 (3mi, 175°) IFTAZ (2mi, 123°) 2000ft
	RNAV	IFTAZ 2000ft AM223 (3mi, 88°) 2000ft EHAM (7mi, 91°) 38ft AM224 (12mi, 87°) 2000ft
RW18C	ALINA (179°)	ALINA SIDNI (5mi, 185°) 2000ft AM630 (3mi, 185°) 2000ft
RW18C	ART5B (5°)	ARTIP AM601 (28mi, 284°) AM602 (6mi, 270°) AM603 (6mi, 270°) NIRSI (6mi, 180°) AM607 (5mi, 90°) AM126 (3mi, 115°) 3400ft AM128 (3mi, 157°) AM130 (3mi, 171°) AM630 (2mi, 155°) 2000ft
RW18C	ARTIP (256°)	ARTIP SPL (32mi, 258°) SPL (turn) AM120 (6mi, 61°) AM121 (6mi, 6°) AM122 (3mi, 272°) SIDNI (2mi, 246°) 2000ft AM630 (3mi, 185°) 2000ft
RW18C	NIR2D (5°)	NIRSI AM607 (5mi, 90°) AM126 (3mi, 115°) 3400ft AM128 (3mi, 157°) AM130 (3mi, 171°) AM630 (2mi, 155°) 2000ft
RW18C	RIV5B (5°)	RIVER AM605 (9mi, 354°) NIRSI (34mi, 38°) AM607 (5mi, 90°) AM126 (3mi, 115°) 3400ft AM128 (3mi, 157°) AM130 (3mi, 171°) AM630 (2mi, 155°) 2000ft
RW18C	RIVER (58°)	RIVER SPL (34mi, 56°) AM120 (6mi, 61°) AM121 (6mi, 6°) AM122 (3mi, 272°) SIDNI (2mi, 246°) 2000ft AM630 (3mi, 185°) 2000ft
RW18C	SUG5B (5°)	SUGOL AM606 (17mi, 104°) NIRSI (11mi, 38°) AM607 (5mi, 90°) AM126 (3mi, 115°) 3400ft AM128 (3mi, 157°) AM130 (3mi, 171°) AM630 (2mi, 155°) 2000ft
RW18C	SUGOL (105°)	SUGOL SPL (31mi, 104°) AM120 (6mi, 61°) AM121 (6mi, 6°) AM122 (3mi, 272°) SIDNI (2mi, 246°) 2000ft AM630 (3mi, 185°) 2000ft
	RNAV	AM630 2000ft EHAM (8mi, 173°) 38ft AM123 (12mi, 193°) 2000ft
RW18R	ART5B (5°)	ARTIP AM601 (28mi, 284°) AM602 (6mi, 270°) AM603 (6mi, 270°) NIRSI (6mi, 180°) AM607 (5mi, 90°) AM133 (3mi, 119°) 3400ft AM135 (3mi, 160°) AM137 (turn) AM621 (1mi, 185°) 2000ft
RW18R	ARTIP (256°)	ARTIP SPL (32mi, 258°) AM240 (9mi, 304°) AM241 (6mi, 5°) AM242 (3mi, 92°) PEVOS (2mi, 120°) 2000ft AM621 (3mi, 185°) 2000ft
RW18R	DIBRU (173°)	DIBRU PEVOS (4mi, 185°) 2000ft AM621 (3mi, 185°) 2000ft
RW18R	NIR1R (5°)	NIRSI AM607 (5mi, 90°) AM133 (3mi, 119°) 3400ft AM135 (3mi, 160°) AM137 (turn) AM621 (1mi, 185°) 2000ft
RW18R	RIV5B (5°)	RIVER AM605 (9mi, 354°) NIRSI (34mi, 38°) AM607 (5mi, 90°) AM133 (3mi, 119°) 3400ft AM135 (3mi, 160°) AM137 (turn) AM621 (1mi, 185°) 2000ft
RW18R	RIVER (58°)	RIVER SPL (34mi, 56°) AM240 (9mi, 304°) AM241 (6mi, 5°) AM242 (3mi, 92°) PEVOS (2mi, 120°) 2000ft AM621 (3mi, 185°) 2000ft
RW18R	SUG5B (5°)	SUGOL AM606 (17mi, 104°) NIRSI (11mi, 38°) AM607 (5mi, 90°) AM133 (3mi, 119°) 3400ft AM135 (3mi, 160°) AM137 (turn) AM621 (1mi, 185°) 2000ft
RW18R	SUGOL (105°)	SUGOL SPL (31mi, 104°) SPL (turn) AM240 (9mi, 304°) AM241 (6mi, 5°) AM242 (3mi, 92°) PEVOS (2mi, 120°) 2000ft AM621 (3mi, 185°) 2000ft
	RNAV	AM621 2000ft EHAM (9mi, 164°) 37ft EHAM (turn) 500ft AM624 (8mi, 282°) 2000ft AM624 (turn) 2000ft
RW22	AGOGO (217°)	AGOGO 3000ft AM671 (3mi, 114°) BLUSY (2mi, 174°) 2000ft
RW22	AMEGA (253°)	AMEGA 3000ft AM672 (3mi, 289°) BLUSY (2mi, 268°) 2000ft
RW22	ARTIP (256°)	ARTIP SPL (32mi, 258°) SPL (turn) PAM (13mi, 90°) AMEGA (5mi, 7°) 3000ft AM672 (3mi, 289°) BLUSY (2mi, 268°) 2000ft
RW22	RIVER (58°)	RIVER SPL (34mi, 56°) PAM (13mi, 90°) AMEGA (5mi, 7°) 3000ft AM672 (3mi, 289°) BLUSY (2mi, 268°) 2000ft
RW22	SUGOL (105°)	SUGOL SPL (31mi, 104°) PAM (13mi, 90°) AMEGA (5mi, 7°) 3000ft AM672 (3mi, 289°) BLUSY (2mi, 268°) 2000ft
	RNAV	BLUSY 2000ft AM661 (4mi, 235°) 2000ft EHAM (7mi, 241°) 36ft (3151mi, 185°) 400ft AM675 (3141mi, 5°) 2000ft
RW24	ARTIP (256°)	ARTIP SPL (32mi, 258°) AM140 (4mi, 21°) AM141 (8mi, 69°) AM142 (3mi, 134°) ARWIN (2mi, 193°) 2000ft
RW24	RIVER (58°)	RIVER SPL (34mi, 56°) AM140 (4mi, 21°) AM141 (8mi, 69°) AM142 (3mi, 134°) ARWIN (2mi, 193°) 2000ft
RW24	SUGOL (105°)	SUGOL SPL (31mi, 104°) AM140 (4mi, 21°) AM141 (8mi, 69°) AM142 (3mi, 134°) ARWIN (2mi, 193°) 2000ft
	RNAV	ARWIN 2000ft AM143 (3mi, 249°) 2000ft EHAM (6mi, 252°) 38ft AM144 (13mi, 247°) 2000ft
RW27	ARTIP (256°)	ARTIP SPL (32mi, 258°) SPL (turn) AM260 (6mi, 56°) AM261 (8mi, 88°) AM262 (3mi, 175°) TIDVO (2mi, 231°) 2000ft
RW27	RIVER (58°)	RIVER SPL (34mi, 56°) AM260 (6mi, 56°) AM261 (8mi, 88°) AM262 (3mi, 175°) TIDVO (2mi, 231°) 2000ft
RW27	SUGOL (105°)	SUGOL SPL (31mi, 104°) AM260 (6mi, 56°) AM261 (8mi, 88°) AM262 (3mi, 175°) TIDVO (2mi, 231°) 2000ft
	RNAV	TIDVO 2000ft AM639 (3mi, 268°) 2000ft EHAM (7mi, 265°) 38ft AM263 (18mi, 269°) 3000ft
RW36C	ARTIP (256°)	ARTIP SPL (32mi, 258°) AM280 (8mi, 241°) AM281 (7mi, 185°) AM282 (3mi, 92°) OLGAX (2mi, 65°) 2000ft
RW36C	BOVCO (10°)	BOVCO OLGAX (8mi, 5°) 2000ft
RW36C	RIVER (58°)	RIVER SPL (34mi, 56°) SPL (turn) AM280 (8mi, 241°) AM281 (7mi, 185°) AM282 (3mi, 92°) OLGAX (2mi, 65°) 2000ft
RW36C	SUGOL (105°)	SUGOL SPL (31mi, 104°) AM280 (8mi, 241°) AM281 (7mi, 185°) AM282 (3mi, 92°) OLGAX (2mi, 65°) 2000ft
	RNAV	OLGAX 2000ft AM632 (3mi, 5°) 2000ft EHAM (6mi, 19°) 38ft AM283 (13mi, 358°) 2000ft
RW36R	ARTIP (256°)	ARTIP SPL (32mi, 258°) AM160 (9mi, 125°) AM161 (7mi, 185°) AM162 (3mi, 272°) NEWCO (2mi, 300°) 2000ft
RW36R	KAROF (2°)	KAROF NEWCO (8mi, 5°) 2000ft
RW36R	RIVER (58°)	RIVER SPL (34mi, 56°) AM160 (9mi, 125°) AM161 (7mi, 185°) AM162 (3mi, 272°) NEWCO (2mi, 300°) 2000ft
RW36R	SUGOL (105°)	SUGOL SPL (31mi, 104°) AM160 (9mi, 125°) AM161 (7mi, 185°) AM162 (3mi, 272°) NEWCO (2mi, 300°) 2000ft
	RNAV	NEWCO 2000ft AM636 (3mi, 5°) 2000ft EHAM (7mi, 358°) 39ft AM637 (4mi, 18°) 1500ft AM163 (8mi, 5°) 2000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
DENU3A	RIVER	VHF	right	221 (41)°	> 7000ft	1.0min timed	250
EEL1A	ARTIP	VHF	right	72 (252)°	> 7000ft	1.0min timed	250
EEL1B	ARTIP	VHF	right	72 (252)°	> 7000ft	1.0min timed	250
EEL1B	NARSO	VHF	left	175 (355)°	> 20000ft	1.0min timed	220
HELE2A	RIVER	VHF	right	221 (41)°	> 7000ft	1.0min timed	250
LAMS2A	SUGOL	VHF	right	290 (110)°	> 7000ft	1.0min timed	250
MOLI2A	SUGOL	VHF	right	290 (110)°	> 7000ft	1.0min timed	250
NORK2A	ARTIP	VHF	right	72 (252)°	> 7000ft	1.0min timed	250
NORK2B	ARTIP	VHF	right	72 (252)°	> 7000ft	1.0min timed	250
NORK2B	NARSO	VHF	left	175 (355)°	> 20000ft	1.0min timed	220
PESE3A	RIVER	VHF	right	221 (41)°	> 7000ft	1.0min timed	250
REDF1A	SUGOL	VHF	right	290 (110)°	> 7000ft	1.0min timed	250
RKN2A	ARTIP	VHF	right	72 (252)°	> 7000ft	1.0min timed	250
RKN2B	ARTIP	VHF	right	72 (252)°	> 7000ft	1.0min timed	250
RKN2B	NARSO	VHF	left	175 (355)°	> 20000ft	1.0min timed	220
TOPA2A	SUGOL	VHF	right	290 (110)°	> 7000ft	1.0min timed	250
*) magnetic outbound (inbound) holding course

Actual weather data

METAR EHAM 291225Z 05005KT 010V100 CAVOK 20/08 Q1027 NOSIG

TAF EHAM 291055Z 2912/3018 04006KT CAVOK PROB30 TEMPO 3003/3006 6000 MIFG
