Airports for X-Plane

Trondheim - Trondheim Vaernes

Airport details

CountryNorway
StateNord-Trøndelag
RegionEN
AirspacePolaris Ctr
MunicipalityStjørdal
Elevation56ft (17m)
TimezoneGMT +1
Coordinates63.45750, 10.92417
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeENVA
IATA codeTRD
FAA coden/a

Communication

Trondheim Vaernes ATIS127.550
Trondheim Vaernes Ground Control121.600
Trondheim Vaernes Tower119.400
Trondheim Vaernes Approach118.600
Trondheim Vaernes Approach119.150

Approach frequencies

ILS-cat-IRW27109.918.00mi
ILS-cat-IRW09110.318.00mi
3.4° GSRW27109.918.00mi
3° GSRW09110.318.00mi
Nearby Points of Interest:
Villa Kvernbakken
-
Leangen Gård
-
Reitgjerdet sykehus
-
Lade Mansion
-
Persaunet leir
-
Moholt substation
-
Brattøra Bridge
-
Brattørvakta
-
Trondheim gamle rådhus
-
Lerchendal gård
-
Brovakten
-
Bastion Prins Carl
-
Hovedbygningen
-
Domkirkegården, Trondheim
-
Holtåsin kalliopiirrokset
-
Sukkerhuset
-
Nidarholm Abbey
-
Møllehaugen
-
Hindrum kirke
-
Zinkrennan

Runway info

Runway 09 / 27
 length2989m (9806ft)
 bearing90° / 270°
 width45m (148ft)
 surfaceasphalt
 displ threshold252m (827ft) / 228m (748ft)

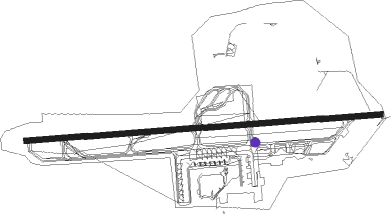

Airport layout - taxiway location Y


Taxiway locations

 A4  A5  A6  A8  B1  B2  Y
Parking locations

 Gate  General  M4  M5  M6

Nearby beacons

codeidentifierdistbearingfrequency
VNSVAERNES NDB0.168°385
VAEVAERNES TACAN0.6264°109.60
RSROROS NDB53.8155°336
RBURAMBU NDB59.6146°401
LVKLEIRVIKA NDB59.720°284
TGATOLGA VOR/DME59.8183°117.40

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW09
 NIGE1A, NIGE1X63mi49°
 SOLK1A31mi96°
 EVNE1A34mi123°
 UTUN1A38mi199°
 OSMU1A44mi234°
 GOGO1A33mi266°
RW27
 NIGE1W, NIGE1B63mi49°
 SOLK1W, SOLK2B31mi96°
 EVNE2B, EVNE1W34mi123°
 UTUN1B, UTUN1W38mi199°
 OSMU1B44mi234°
 GOGO1B33mi266°

STAR starting pointsdistanceinbound heading
RW09
 NELS1L40.775°
 MIVS1L72.082°
 NUPG2L45.1228°
 VEVO1L38.9330°
RW27
 NELS2M40.775°
 MIVS1M72.082°
 NUPG2M45.1228°
 VEVO1M38.9330°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09-ZBAMPU (81°)BAMPU 4000ft
LANBO (4mi, 39°) 2900ft
RW09-ZIRKIX (99°)IRKIX 4000ft
LANBO (4mi, 141°) 2900ft
 RNAVLANBO 2900ft
DITUN (4mi, 90°) 1800ft
ENVA (6mi, 90°) 66ft
VA605 (16mi, 90°)
IRKIX (28mi, 274°) 4200ft
RW27-ZINSOD (264°)INSOD 6000ft
TIKMU (5mi, 220°) 4700ft
RW27-ZXILDA (277°)XILDA 6000ft
TIKMU (5mi, 322°) 4700ft
 RNAVTIKMU 4700ft
NEVOS (4mi, 270°) 4000ft
ENVA (11mi, 270°) 106ft
VA554 (19mi, 270°)
VA554 (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
MIVS1LBAMPUVHFleft196 (16)°> 4000ft1.0min timedICAO rules
MIVS1LBEDVIVHFright206 (26)°> 6000ft1.0min timedICAO rules
MIVS1MADEXAVHFleft197 (17)°> 7000ft1.0min timedICAO rules
NELS1LBAMPUVHFleft196 (16)°> 4000ft1.0min timedICAO rules
NELS1LBEDVIVHFright206 (26)°> 6000ft1.0min timedICAO rules
NELS1LNELSUVHFright253 (73)°> 7000ft1.0min timedICAO rules
NELS2MADEXAVHFleft197 (17)°> 7000ft1.0min timedICAO rules
NELS2MNELSUVHFright253 (73)°> 7000ft1.0min timedICAO rules
NUPG2LIRKIXVHFleft336 (156)°> 4000ft1.0min timedICAO rules
NUPG2LNUPGOVHFleft17 (197)°> 12000ft1.0min timedICAO rules
NUPG2LTUDLUVHFleft16 (196)°> 5000ft1.0min timedICAO rules
NUPG2MALENUVHFleft336 (156)°> 7000ft1.0min timedICAO rules
NUPG2MNUPGOVHFleft17 (197)°> 12000ft1.0min timedICAO rules
VEVO1LBAMPUVHFleft196 (16)°> 4000ft1.0min timedICAO rules
VEVO1LBEDVIVHFright206 (26)°> 6000ft1.0min timedICAO rules
VEVO1LVEVODVHFleft174 (354)°> 10000ft1.0min timedICAO rules
VEVO1MADEXAVHFleft197 (17)°> 7000ft1.0min timedICAO rules
VEVO1MVEVODVHFleft174 (354)°> 10000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
