Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

Dakar - Dakar Leopold Sedar Senghor Intl

Airport details

Country	Senegal
State	Dakar Region
Region	GO
Airspace	Dakar Ctr
Municipality	Dakar
Elevation	84ft (26m)
Timezone	GMT +0
Coordinates	14.74389, -17.47944
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	GOOY
IATA code	DKR
FAA code	n/a

Communication

Dakar Leopold Sedar Senghor Intl DAKAR INFO	129.500
Dakar Leopold Sedar Senghor Intl DAKAR INFO	127.300
Dakar Leopold Sedar Senghor Intl DAKAR Tower	118.100
Dakar Leopold Sedar Senghor Intl DAKAR CON	120.500
Dakar Leopold Sedar Senghor Intl DAKAR CON	118.100

Nearby Points of Interest:

Primature du Sénégal

Îles des Madeleines National Park

Rufisque

Runway info

Runway 18 / 36
	length	3506m (11503ft)
	bearing	172° / 352°
	width	45m (148ft)
	surface	asphalt
	displ threshold	163m (535ft) / 0m (0ft)
	blast zone	57m (187ft) / 66m (217ft)
Runway 03 / 21
	length	1500m (4921ft)
	bearing	23° / 203°
	width	30m (98ft)
	surface	asphalt
	blast zone	0m (0ft) / 255m (837ft)

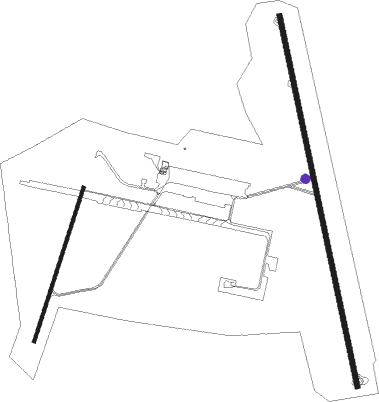

Airport layout - taxiway location S2

Taxiway locations

D	E	G	M	P	R	S	S1
S2	T

Nearby beacons

code	identifier	dist	bearing	frequency
SDS	DAKAR NDB	1.6	188°	323
DS	DAKAR-DIASS VOR/DME	24.3	104°	115.40

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW18	DESAX (197°)	DESAX 2100ft TASUT (5mi, 263°) 2100ft
RW18	GUTAR (147°)	GUTAR 2100ft TASUT (5mi, 83°) 2100ft
RW18	TASUT (172°)	TASUT 2100ft
	RNAV	TASUT 2100ft OY501 (4mi, 172°) 2100ft GOOY (7mi, 172°) 141ft OY502 (4mi, 172°) GUTAR (16mi, 334°) 2100ft
RW36	KODUS (15°)	KODUS 2100ft SIBIG (5mi, 83°) 2100ft
	RNAV	SIBIG 2100ft OY503 (5mi, 352°) 2100ft GOOY (7mi, 352°) 125ft OY504 (4mi, 352°) KODUS (17mi, 190°) 2100ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
