Airports for X-Plane

Dakar - Dakar Leopold Sedar Senghor Intl

Airport details

CountrySenegal
StateDakar Region
RegionGO
AirspaceDakar Ctr
MunicipalityDakar
Elevation84ft (26m)
TimezoneGMT +0
Coordinates14.74389, -17.47944
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGOOY
IATA codeDKR
FAA coden/a

Communication

Dakar Leopold Sedar Senghor Intl DAKAR INFO129.500
Dakar Leopold Sedar Senghor Intl DAKAR INFO127.300
Dakar Leopold Sedar Senghor Intl DAKAR Tower118.100
Dakar Leopold Sedar Senghor Intl DAKAR CON120.500
Dakar Leopold Sedar Senghor Intl DAKAR CON118.100

Runway info

Runway 18 / 36
 length3506m (11503ft)
 bearing172° / 352°
 width45m (148ft)
 surfaceasphalt
 displ threshold163m (535ft) / 0m (0ft)
 blast zone57m (187ft) / 66m (217ft)
Runway 03 / 21
 length1500m (4921ft)
 bearing23° / 203°
 width30m (98ft)
 surfaceasphalt
 blast zone0m (0ft) / 255m (837ft)

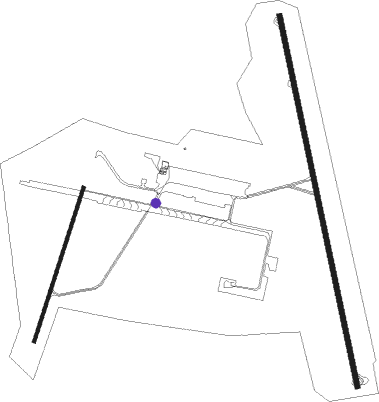

Airport layout - taxiway location T


Taxiway locations

 D  E  G  M  P  R  S  S1
 S2  T

Nearby beacons

codeidentifierdistbearingfrequency
SDSDAKAR NDB1.6188°323
DSDAKAR-DIASS VOR/DME24.3104°115.40

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18DESAX (197°)DESAX 2100ft
TASUT (5mi, 263°) 2100ft
RW18GUTAR (147°)GUTAR 2100ft
TASUT (5mi, 83°) 2100ft
RW18TASUT (172°)TASUT 2100ft
 RNAVTASUT 2100ft
OY501 (4mi, 172°) 2100ft
GOOY (7mi, 172°) 141ft
OY502 (4mi, 172°)
GUTAR (16mi, 334°) 2100ft
RW36KODUS (15°)KODUS 2100ft
SIBIG (5mi, 83°) 2100ft
 RNAVSIBIG 2100ft
OY503 (5mi, 352°) 2100ft
GOOY (7mi, 352°) 125ft
OY504 (4mi, 352°)
KODUS (17mi, 190°) 2100ft
