Airports for X-Plane

Souda - Chania Ioannis Daskalogiannis

Airport details

CountryGreece
StateRegion of Crete
RegionLG
AirspaceAthens Ctr
MunicipalityChania
Elevation490ft (149m)
TimezoneGMT +2
Coordinates35.53139, 24.15111
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLGSA
IATA codeCHQ
FAA coden/a

Communication

Chania Ioannis Daskalogiannis Ground Control121.700
Chania Ioannis Daskalogiannis Tower118.125
Chania Ioannis Daskalogiannis Approach122.100
Chania Ioannis Daskalogiannis Departure118.125
Nearby Points of Interest:
Monastery of Agios Ioannis the Merciful
-
Myriokefalon monastery
-
Samariá Gorge
-
Anopolis
-
Phalasarna
-
Naos Panagias

Runway info

Runway 11 / 29
 length3344m (10971ft)
 bearing108° / 288°
 width42m (138ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 11R / 29L
 length3344m (10971ft)
 bearing108° / 288°
 width30m (98ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)

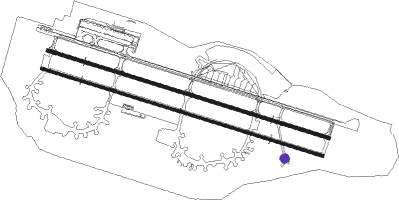

Airport layout - parking location Alert


Taxiway locations

 CHANIA|AIR
Parking locations

 Alert  H  HAF  Hellenic  New  Ramp  S1  S2
 US

Nearby beacons

codeidentifierdistbearingfrequency
SUDCHANIA NDB0.6139°409
SUDCHANIA VOR/DME1.2109°108.60
PLHPALEOCHORA VOR/DME29.3237°114.60

Departure and arrival routes

Transition altitude11000ft
SID end pointsdistanceoutbound heading
RW11
 RUSO2B, RUSO2H, RUSO1T42mi18°
 BAVE1T, BAVE1J, BAVE1B29mi100°
 OTRE1J, OTRE5B45mi116°
 TIPU1T32mi126°
 PLH1T, PLH1D, PLH1J29mi237°
 SOKR1T, SOKR2H, SOKR5B55mi317°
RW29
 RUSO2A, RUSO2K, RUSO1S42mi18°
 BAVE1S, BAVE1A, BAVE1L29mi100°
 OTRE5A, OTRE1L45mi116°
 TIPU1S32mi126°
 PLH1S, PLH1L, PLH1C29mi237°
 SOKR1K, SOKR1S, SOKR5A55mi317°

STAR starting pointsdistanceinbound heading
RW11
 PLH1V, PLH1U, PLH1R, PLH1M, PLH1W, PLH2E29.357°
 SOKR1U, SOKR1V, SOKR2E, SOKR2W, SOKR1R54.7137°
 MANO2W, MANO2E, MANO1V52.7173°
 RUSO2W, RUSO2E, RUSO1V, RUSO1R41.9198°
 BAVE1R, BAVE1V, BAVE1W, BAVE1E28.8280°
 OTRE1V, OTRE1W, OTRE2E44.7296°
 TIPU1R32.0306°
RW29
 PLH1Q, PLH1X, PLH2F, PLH1G29.357°
 SOKR1Q, SOKR2F, SOKR2G, SOKR2X54.7137°
 MANO2F, MANO2X, MANO2G52.7173°
 RUSO1Q, RUSO2X, RUSO2G, RUSO2F41.9198°
 BAVE1Q, BAVE1G, BAVE1F, BAVE1X28.8280°
 OTRE2F, OTRE1G, OTRE1X44.7296°
 TIPU1Q32.0306°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAVE1ESUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
BAVE1FSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
BAVE1QSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
BAVE1RSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
BAVE1WBEBUSVHFleft288 (108)°> 4000ftDME 5.0miICAO rules
BAVE1XXANADVHFright65 (245)°> 4000ftDME 5.0mi230
MANO2ESUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
MANO2FSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
MANO2WBEBUSVHFleft288 (108)°> 4000ftDME 5.0miICAO rules
MANO2XXANADVHFright65 (245)°> 4000ftDME 5.0mi230
OTRE1WBEBUSVHFleft288 (108)°> 4000ftDME 5.0miICAO rules
OTRE1XXANADVHFright65 (245)°> 4000ftDME 5.0mi230
OTRE2ESUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
OTRE2FSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
PLH1MBEBUSVHFleft288 (108)°> 4000ftDME 5.0miICAO rules
PLH1QSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
PLH1RSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
PLH1WBEBUSVHFleft288 (108)°> 4000ftDME 5.0miICAO rules
PLH1XXANADVHFright65 (245)°> 4000ftDME 5.0mi230
PLH2ESUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
PLH2FSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
RUSO1QSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
RUSO1RSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
RUSO2ESUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
RUSO2FSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
RUSO2WBEBUSVHFleft288 (108)°> 4000ftDME 5.0miICAO rules
RUSO2XXANADVHFright65 (245)°> 4000ftDME 5.0mi230
SOKR1QSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
SOKR1RSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
SOKR2ESUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
SOKR2FSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
SOKR2WBEBUSVHFleft288 (108)°> 4000ftDME 5.0miICAO rules
SOKR2XXANADVHFright65 (245)°> 4000ftDME 5.0mi230
TIPU1QSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
TIPU1RSUDNDBright89 (269)°> 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
