Airports for X-Plane

Tel Aviv - Tel Aviv Ben Gurion

Airport details

CountryIsrael
StateCenter District
RegionLL
AirspaceTel Aviv Ctr
MunicipalityRamla Subdistrict
Elevation132ft (40m)
TimezoneGMT +2
Coordinates32.00945, 34.88556
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLLBG
IATA codeTLV
FAA coden/a

Communication

Tel Aviv Ben Gurion ATIS132.500
Tel Aviv Ben Gurion Clearance DEL119.350
Tel Aviv Ben Gurion Ground Control EAST129.200
Tel Aviv Ben Gurion Ground Control WEST118.050
Tel Aviv Ben Gurion Tower118.300
Tel Aviv Ben Gurion Approach120.500
Tel Aviv Ben Gurion TMA119.500
Tel Aviv Ben Gurion Departure120.500

Approach frequencies

ILS-cat-IRW08110.918.00mi
ILS-cat-IRW12110.318.00mi
ILS-cat-IRW21109.718.00mi
ILS-cat-IRW26108.718.00mi
IGSRW30111.918.00mi
3.2° GSRW30111.918.00mi
3° GSRW21109.718.00mi
3° GSRW12110.318.00mi
3° GSRW08110.918.00mi
3° GSRW26108.718.00mi
Nearby Points of Interest:
Wilhelma
-
Tel Litvinsky
-
Swatitzky House
-
The Security Road
-
London Hotel
-
Freimann House
-
Rishon LeZion old water tower
-
White mosque
-
Bet HaTavshil
-
Mikveh Israel
-
Avraham Krinitzi Museum
-
Borochov school
-
Orda cinema
-
Beit Shniderman
-
Mamluk pharmacy in Borochov neighborhood
-
Sheik Murad House
-
Yarkon cinema (Rosh Ha'ayin)
-
The Yemenite Jewry Heritage Center
-
Shimon Levi house
-
Moses Montefiore water tower

Runway info

Runway 12 / 30
 length3103m (10180ft)
 bearing117° / 297°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 70m (230ft)
 blast zone255m (837ft) / 242m (794ft)
Runway 08 / 26
 length4055m (13304ft)
 bearing81° / 261°
 width45m (148ft)
 surfaceasphalt
 displ threshold404m (1325ft) / 599m (1965ft)
 blast zone255m (837ft) / 63m (207ft)
Runway 03 / 21
 length2776m (9108ft)
 bearing33° / 213°
 width60m (197ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

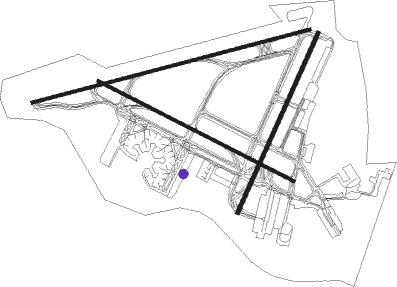

Airport layout - taxiway location EH4B


Taxiway locations

 B2  B3  B4  B5  B6  B7  B8  B9
 C2  C3  C4  C5  C6  C7  C8  C9
 D2  D3  D4  D5  D6  D7  D8  D9
 E  E1  E2  E2G  E3  E3G  E4  E4G
 E5  E5G  E6G  E7G  E8G  E9G  EH1  EH1A
 EH2  EH2A  EH2B  EH3  EH4  EH4A  EH4B  EH5
 EH5B  EH6  EH6A  EH6B  EH7  EH7A  EH7B  EH8
 EH8A  EH9  EH9A  EH9B  H  H11  H12  H13
 H14  H15  H16  H17  H18  H19  K  K4
 K5  L  L1  L2  L3  L4  L4A  L4B
 M  N  N11  N12  N13  N14  N15  N16
 N17  N18  N19  N20  N21  N22  N23  N24
 Q  R  S  SKF  T  T1  T2  T3
 T4  V  V11  V12  V13  V14  V15  V16
 V17  V18  V19  V21  V22  V23  V24  V25
 V26  V27  V28  V29  V6  V7  V8  V9
 VB  VC  W1  W2  W3  W4  WH1  WH1A
 WH2  WH2A  WH2B  WH3  WH3A  WH4  WH4A  WH4B
 WH5  WH5B  WH6  WH6A  WH6B  WH7  WH7A  WH7B
 WH8  WH8A  WH9  WH9A  WH9B  X20  X21  X22
 Y  Z
Parking locations

 EH1  EH1A  EH2  EH2A  EH2B  EH3  EH4  EH4A
 EH4B  EH5  EH5B  EH6  EH6A  EH6B  EH7  EH7A
 EH7B  EH8  EH8A  EH9  EH9A  EH9B  Gate  H11
 H12  H13  H14  H15  H16  H17  H18  H19
 J1  J10  J11  J12  J13  J2  J3  J4
 J5  J6  J7  J8  J9  K1  K3  K5
 L1  L2  L3  L4  L4A  L4B  L5  L5A
 L6  N11  N12  N13  N14  N15  N16  N17
 N18  N19  N20  N21  N22  N23  N24  V11
 V12  V13  V14  V15  V16  V17  V18  V19
 V21  V22  V23  V24  V25  V26  V27  V28
 V29  V6  V7  V8  V9  WH1  WH1A  WH2
 WH2A  WH2B  WH3  WH3A  WH4  WH4A  WH4B  WH5
 WH5B  WH6  WH6A  WH6B  WH7  WH7A  WH7B  WH8
 WH8A  WH9  WH9A  WH9B  X20  X21  X22

Nearby beacons

codeidentifierdistbearingfrequency
BGNBEN GURION (TEL AVIV) VOR/DME0.5290°113.50
NATNATANIA VOR/DME19.914°112.40
RMDRAMAT DAVID NDB42.224°368
BSABEER SHEBA VOR/DME44.2193°114.30
MZDMETZADA VOR/DME48.2143°115
MDBMADABA NDB52.4107°399
ROPROSH-PINA VOR/DME6835°115.30

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW03
 NAT1A20mi14°
RW08
 NAT1B20mi14°
 SALA4B32mi97°
 TOMA4B35mi114°
 SUVA1B46mi280°
 DAFN1B46mi309°
 MERV2B50mi336°
RW12
 NAT1D20mi14°
 SALA5C32mi97°
 TOMA5C35mi114°
 ORLE1C13mi274°
 SUVA2C46mi280°
 DAFN2C46mi309°
 PIDE2C, MERV3C50mi336°
RW21
 SUVA1G46mi280°
RW26
 SALA4E32mi97°
 TOMA4E, RIPU1E35mi114°
 ORLE1E13mi274°
 SUVA1E46mi280°
 DAFN1E46mi309°
 MERV2E, PIDE1E50mi336°
RW30
 SALA4F32mi97°
 TOMA4F, RIPU1F35mi114°
 ORLE1F13mi274°
 SUVA1F46mi280°
 DAFN1F46mi309°
 PIDE1F, MERV2F50mi336°

STAR starting pointsdistanceinbound heading
RW08
 PURLA157.9121°
RW12
 GODED257.9121°
 SALA2B32.4277°
 AMIT1B37.2304°
RW21
 AMOS1A, AMOS1B57.9121°
 SALA2A32.4277°
 AMIT1A37.2304°
RW26
 AMOS1C, AMOS1D57.9121°
 SALA2C32.4277°
 AMIT1C37.2304°
RW30
 NINET1, AMOS1F, AMOS1E57.9121°
 SALA3E32.4277°
 AMIT1E37.2304°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08TAPUZ (94°)TAPUZ 3000ft
BG800 (7mi, 111°) 2400ft
 RNAVBG800 2400ft
BG71W (4mi, 87°) 2400ft
LLBG (8mi, 84°) 147ft
BG810 (2mi, 70°)
NOGAH (4mi, 222°) 3000ft
BG065 (7mi, 284°) 5000ft
BG065 (turn)
RW12GODED (116°)GODED 5000ft
BG13W (4mi, 116°) 3000ft
BG09W (4mi, 117°) 2500ft
 RNAVBG09W 2500ft
BG07W (2mi, 117°) 2500ft
LLBG (8mi, 116°) 153ft
BG060 (3mi, 123°)
BG065 (10mi, 276°) 3000ft
BG065 (turn) 3000ft
RW21-VTADOV (161°)TADOV
VATAT (7mi, 105°) 3500ft
NAMIM (4mi, 181°) 2500ft
IBATI (5mi, 181°) 1300ft
 RNAVIBATI 1300ft
LLBG (4mi, 218°) 184ft
DER21 (turn) 1000ft
(2758mi, 227°) 1000ft
GEMDA (2764mi, 48°) 5000ft
GEMDA (turn) 5000ft
RW21-XTADOV (161°)TADOV
VATAT (7mi, 105°) 3500ft
NAMIM (4mi, 181°) 2500ft
 RNAVNAMIM 2500ft
IBATI (5mi, 181°) 1300ft
LLBG (4mi, 218°) 184ft
DER21 (turn) 1000ft
(2758mi, 227°) 1000ft
GEMDA (2764mi, 48°) 5000ft
GEMDA (turn) 5000ft
RW21-YTADOV (161°)TADOV
VATAT (7mi, 105°) 3500ft
BG218 (4mi, 180°) 2500ft
 RNAVBG218 2500ft
BG217 (4mi, 180°) 1200ft
BG216 (1mi, 197°) 1200ft
LLBG (4mi, 219°) 184ft
BG215 (2mi, 201°)
GEMDA (8mi, 56°) 5000ft
GEMDA (turn) 5000ft
RW26RABIN (244°)RABIN 3800ft
GINTU (4mi, 136°) 3800ft
LASRI (3mi, 235°) 3400ft
 RNAVLASRI 3400ft
BG07E (5mi, 261°) 2500ft
LLBG (8mi, 259°) 174ft
(2758mi, 227°) 600ft
BG070 (2753mi, 47°) 3000ft
BG070 (turn) 3000ft
RW30-RHADAS (209°)HADAS 6000ft
MORIA (11mi, 167°) 3600ft
ROMIE (4mi, 181°) 2400ft
 RNAVROMIE 2400ft
BG005 (3mi, 271°) 1800ft
LLBG (6mi, 300°) 179ft
DER30 (turn) 700ft
(2758mi, 227°) 700ft
BG050 (2752mi, 47°) 3000ft
BG050 (turn) 3000ft
RW30-VLIMKO (115°)LIMKO 5000ft
REBDO (5mi, 149°) 4500ft
GAVRI (9mi, 127°) 2500ft
BG075 (3mi, 65°) 2100ft
BG040 (3mi, 327°) 1700ft
 RNAVBG040 1700ft
LLBG (5mi, 300°) 179ft
DER30 (turn) 700ft
(2758mi, 227°) 700ft
BG050 (2752mi, 47°) 3000ft
BG050 (turn) 3000ft
RW30-WHADAS (209°)HADAS 6000ft
MORIA (11mi, 167°) 3600ft
ROMIE (4mi, 181°) 2400ft
 RNAVROMIE 2400ft
BG005 (3mi, 271°) 1800ft
LLBG (6mi, 300°) 179ft
DER30 (turn) 700ft
(2758mi, 227°) 700ft
BG050 (2752mi, 47°) 3000ft
BG050 (turn) 3000ft
RW30-XLIMKO (115°)LIMKO 5000ft
REBDO (5mi, 149°) 4500ft
GAVRI (9mi, 127°) 2500ft
BG075 (3mi, 65°) 2100ft
 RNAVBG075 2100ft
BG040 (3mi, 327°) 1700ft
LLBG (5mi, 300°) 179ft
DER30 (turn) 700ft
(2758mi, 227°) 700ft
BG050 (2752mi, 47°) 3000ft
BG050 (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMIT1AGATVUVHFleft113 (293)°6000ft - 9000ft1.0min timed250
AMIT1BGATVUVHFleft113 (293)°6000ft - 9000ft1.0min timed250
AMIT1CGATVUVHFleft113 (293)°6000ft - 9000ft1.0min timed250
AMIT1EGATVUVHFleft113 (293)°6000ft - 9000ft1.0min timed250
AMOS1ADIVLAVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1AKONFOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1AVETEKVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1AZUKKOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1BDIVLAVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1BKONFOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1BVETEKVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1BZUKKOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1CDIVLAVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1CKONFOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1CVETEKVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1CZUKKOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1DDIVLAVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1DKONFOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1DVETEKVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1DZUKKOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1EDIVLAVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1EKONFOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1EVETEKVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1EZUKKOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1FDIVLAVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1FKONFOVHFright308 (128)°5000ft - 14000ft1.0min timed230
AMOS1FVETEKVHFright288 (108)°5000ft - 8000ft1.0min timedICAO rules
AMOS1FZUKKOVHFright308 (128)°5000ft - 14000ft1.0min timed230
GODED2DIRANVHFleft299 (119)°5000ft - 7000ft1.0min timed250
GODED2GODEDVHFleft299 (119)°5000ft - 7000ft1.0min timed250
GODED2KONFOVHFright308 (128)°5000ft - 14000ft1.0min timed230
GODED2ZUKKOVHFright308 (128)°5000ft - 14000ft1.0min timed230
NINET1DIRANVHFleft299 (119)°5000ft - 7000ft1.0min timed250
NINET1GODEDVHFleft299 (119)°5000ft - 7000ft1.0min timed250
NINET1KONFOVHFright308 (128)°5000ft - 14000ft1.0min timed230
NINET1ZUKKOVHFright308 (128)°5000ft - 14000ft1.0min timed230
PURLA1BAVLIVHFleft269 (89)°5000ft - 5000ft1.0min timedICAO rules
PURLA1KONFOVHFright308 (128)°5000ft - 14000ft1.0min timed230
PURLA1PURLAVHFleft269 (89)°6000ft - 6000ft1.0min timedICAO rules
PURLA1TAPUZVHFleft269 (89)°3000ft - 3000ft1.0min timedICAO rules
PURLA1ZUKKOVHFright308 (128)°5000ft - 14000ft1.0min timed230
SALA2AGATVUVHFleft113 (293)°6000ft - 9000ft1.0min timed250
SALA2BGATVUVHFleft113 (293)°6000ft - 9000ft1.0min timed250
SALA2CGATVUVHFleft113 (293)°6000ft - 9000ft1.0min timed250
SALA3EGATVUVHFleft113 (293)°6000ft - 9000ft1.0min timed250
*) magnetic outbound (inbound) holding course
