Tel Aviv - Tel Aviv Ben Gurion

Airport details

Country	Israel
State	Center District
Region	LL
Airspace	Tel Aviv Ctr
Municipality	Ramla Subdistrict
Elevation	132ft (40m)
Timezone	GMT +2
Coordinates	32.00945, 34.88556
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	LLBG
IATA code	TLV
FAA code	n/a

Communication

Tel Aviv Ben Gurion ATIS	132.500
Tel Aviv Ben Gurion Clearance DEL	119.350
Tel Aviv Ben Gurion Ground Control EAST	129.200
Tel Aviv Ben Gurion Ground Control WEST	118.050
Tel Aviv Ben Gurion Tower	118.300
Tel Aviv Ben Gurion Approach	120.500
Tel Aviv Ben Gurion TMA	119.500
Tel Aviv Ben Gurion Departure	120.500

Approach frequencies

ILS-cat-I	RW08	110.9	18.00mi
ILS-cat-I	RW12	110.3	18.00mi
ILS-cat-I	RW21	109.7	18.00mi
ILS-cat-I	RW26	108.7	18.00mi
IGS	RW30	111.9	18.00mi
3.2° GS	RW30	111.9	18.00mi
3° GS	RW21	109.7	18.00mi
3° GS	RW12	110.3	18.00mi
3° GS	RW08	110.9	18.00mi
3° GS	RW26	108.7	18.00mi

Runway info

Runway 12 / 30
	length	3103m (10180ft)
	bearing	117° / 297°
	width	45m (148ft)
	surface	asphalt
	displ threshold	0m (0ft) / 70m (230ft)
	blast zone	255m (837ft) / 242m (794ft)
Runway 08 / 26
	length	4055m (13304ft)
	bearing	81° / 261°
	width	45m (148ft)
	surface	asphalt
	displ threshold	404m (1325ft) / 599m (1965ft)
	blast zone	255m (837ft) / 63m (207ft)
Runway 03 / 21
	length	2776m (9108ft)
	bearing	33° / 213°
	width	60m (197ft)
	surface	asphalt
	blast zone	255m (837ft) / 255m (837ft)

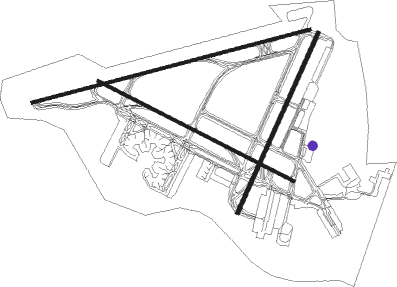

Airport layout - parking location V9

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
BGN	BEN GURION (TEL AVIV) VOR/DME	0.5	290°	113.50
NAT	NATANIA VOR/DME	19.9	14°	112.40
RMD	RAMAT DAVID NDB	42.2	24°	368
BSA	BEER SHEBA VOR/DME	44.2	193°	114.30
MZD	METZADA VOR/DME	48.2	143°	115
MDB	MADABA NDB	52.4	107°	399
ROP	ROSH-PINA VOR/DME	68	35°	115.30

Departure and arrival routes

Transition altitude

10000ft

Transition level

11000ft

SID end points		distance	outbound heading
RW03
	NAT1A	20mi	14°
RW08
	NAT1B	20mi	14°
	SALA4B	32mi	97°
	TOMA4B	35mi	114°
	SUVA1B	46mi	280°
	DAFN1B	46mi	309°
	MERV2B	50mi	336°
RW12
	NAT1D	20mi	14°
	SALA5C	32mi	97°
	TOMA5C	35mi	114°
	ORLE1C	13mi	274°
	SUVA2C	46mi	280°
	DAFN2C	46mi	309°
	PIDE2C, MERV3C	50mi	336°
RW21
	SUVA1G	46mi	280°
RW26
	SALA4E	32mi	97°
	TOMA4E, RIPU1E	35mi	114°
	ORLE1E	13mi	274°
	SUVA1E	46mi	280°
	DAFN1E	46mi	309°
	MERV2E, PIDE1E	50mi	336°
RW30
	SALA4F	32mi	97°
	TOMA4F, RIPU1F	35mi	114°
	ORLE1F	13mi	274°
	SUVA1F	46mi	280°
	DAFN1F	46mi	309°
	PIDE1F, MERV2F	50mi	336°

STAR starting points		distance	inbound heading
RW08
	PURLA1	57.9	121°
RW12
	GODED2	57.9	121°
	SALA2B	32.4	277°
	AMIT1B	37.2	304°
RW21
	AMOS1A, AMOS1B	57.9	121°
	SALA2A	32.4	277°
	AMIT1A	37.2	304°
RW26
	AMOS1C, AMOS1D	57.9	121°
	SALA2C	32.4	277°
	AMIT1C	37.2	304°
RW30
	NINET1, AMOS1F, AMOS1E	57.9	121°
	SALA3E	32.4	277°
	AMIT1E	37.2	304°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW08	TAPUZ (94°)	TAPUZ 3000ft BG800 (7mi, 111°) 2400ft
	RNAV	BG800 2400ft BG71W (4mi, 87°) 2400ft LLBG (8mi, 84°) 147ft BG810 (2mi, 70°) NOGAH (4mi, 222°) 3000ft BG065 (7mi, 284°) 5000ft BG065 (turn)
RW12	GODED (116°)	GODED 5000ft BG13W (4mi, 116°) 3000ft BG09W (4mi, 117°) 2500ft
	RNAV	BG09W 2500ft BG07W (2mi, 117°) 2500ft LLBG (8mi, 116°) 153ft BG060 (3mi, 123°) BG065 (10mi, 276°) 3000ft BG065 (turn) 3000ft
RW21-V	TADOV (161°)	TADOV VATAT (7mi, 105°) 3500ft NAMIM (4mi, 181°) 2500ft IBATI (5mi, 181°) 1300ft
	RNAV	IBATI 1300ft LLBG (4mi, 218°) 184ft DER21 (turn) 1000ft (2758mi, 227°) 1000ft GEMDA (2764mi, 48°) 5000ft GEMDA (turn) 5000ft
RW21-X	TADOV (161°)	TADOV VATAT (7mi, 105°) 3500ft NAMIM (4mi, 181°) 2500ft
	RNAV	NAMIM 2500ft IBATI (5mi, 181°) 1300ft LLBG (4mi, 218°) 184ft DER21 (turn) 1000ft (2758mi, 227°) 1000ft GEMDA (2764mi, 48°) 5000ft GEMDA (turn) 5000ft
RW21-Y	TADOV (161°)	TADOV VATAT (7mi, 105°) 3500ft BG218 (4mi, 180°) 2500ft
	RNAV	BG218 2500ft BG217 (4mi, 180°) 1200ft BG216 (1mi, 197°) 1200ft LLBG (4mi, 219°) 184ft BG215 (2mi, 201°) GEMDA (8mi, 56°) 5000ft GEMDA (turn) 5000ft
RW26	RABIN (244°)	RABIN 3800ft GINTU (4mi, 136°) 3800ft LASRI (3mi, 235°) 3400ft
	RNAV	LASRI 3400ft BG07E (5mi, 261°) 2500ft LLBG (8mi, 259°) 174ft (2758mi, 227°) 600ft BG070 (2753mi, 47°) 3000ft BG070 (turn) 3000ft
RW30-R	HADAS (209°)	HADAS 6000ft MORIA (11mi, 167°) 3600ft ROMIE (4mi, 181°) 2400ft
	RNAV	ROMIE 2400ft BG005 (3mi, 271°) 1800ft LLBG (6mi, 300°) 179ft DER30 (turn) 700ft (2758mi, 227°) 700ft BG050 (2752mi, 47°) 3000ft BG050 (turn) 3000ft
RW30-V	LIMKO (115°)	LIMKO 5000ft REBDO (5mi, 149°) 4500ft GAVRI (9mi, 127°) 2500ft BG075 (3mi, 65°) 2100ft BG040 (3mi, 327°) 1700ft
	RNAV	BG040 1700ft LLBG (5mi, 300°) 179ft DER30 (turn) 700ft (2758mi, 227°) 700ft BG050 (2752mi, 47°) 3000ft BG050 (turn) 3000ft
RW30-W	HADAS (209°)	HADAS 6000ft MORIA (11mi, 167°) 3600ft ROMIE (4mi, 181°) 2400ft
	RNAV	ROMIE 2400ft BG005 (3mi, 271°) 1800ft LLBG (6mi, 300°) 179ft DER30 (turn) 700ft (2758mi, 227°) 700ft BG050 (2752mi, 47°) 3000ft BG050 (turn) 3000ft
RW30-X	LIMKO (115°)	LIMKO 5000ft REBDO (5mi, 149°) 4500ft GAVRI (9mi, 127°) 2500ft BG075 (3mi, 65°) 2100ft
	RNAV	BG075 2100ft BG040 (3mi, 327°) 1700ft LLBG (5mi, 300°) 179ft DER30 (turn) 700ft (2758mi, 227°) 700ft BG050 (2752mi, 47°) 3000ft BG050 (turn) 3000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
AMIT1A	GATVU	VHF	left	113 (293)°	6000ft - 9000ft	1.0min timed	250
AMIT1B	GATVU	VHF	left	113 (293)°	6000ft - 9000ft	1.0min timed	250
AMIT1C	GATVU	VHF	left	113 (293)°	6000ft - 9000ft	1.0min timed	250
AMIT1E	GATVU	VHF	left	113 (293)°	6000ft - 9000ft	1.0min timed	250
AMOS1A	DIVLA	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1A	KONFO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1A	VETEK	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1A	ZUKKO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1B	DIVLA	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1B	KONFO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1B	VETEK	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1B	ZUKKO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1C	DIVLA	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1C	KONFO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1C	VETEK	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1C	ZUKKO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1D	DIVLA	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1D	KONFO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1D	VETEK	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1D	ZUKKO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1E	DIVLA	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1E	KONFO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1E	VETEK	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1E	ZUKKO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1F	DIVLA	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1F	KONFO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
AMOS1F	VETEK	VHF	right	288 (108)°	5000ft - 8000ft	1.0min timed	ICAO rules
AMOS1F	ZUKKO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
GODED2	DIRAN	VHF	left	299 (119)°	5000ft - 7000ft	1.0min timed	250
GODED2	GODED	VHF	left	299 (119)°	5000ft - 7000ft	1.0min timed	250
GODED2	KONFO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
GODED2	ZUKKO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
NINET1	DIRAN	VHF	left	299 (119)°	5000ft - 7000ft	1.0min timed	250
NINET1	GODED	VHF	left	299 (119)°	5000ft - 7000ft	1.0min timed	250
NINET1	KONFO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
NINET1	ZUKKO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
PURLA1	BAVLI	VHF	left	269 (89)°	5000ft - 5000ft	1.0min timed	ICAO rules
PURLA1	KONFO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
PURLA1	PURLA	VHF	left	269 (89)°	6000ft - 6000ft	1.0min timed	ICAO rules
PURLA1	TAPUZ	VHF	left	269 (89)°	3000ft - 3000ft	1.0min timed	ICAO rules
PURLA1	ZUKKO	VHF	right	308 (128)°	5000ft - 14000ft	1.0min timed	230
SALA2A	GATVU	VHF	left	113 (293)°	6000ft - 9000ft	1.0min timed	250
SALA2B	GATVU	VHF	left	113 (293)°	6000ft - 9000ft	1.0min timed	250
SALA2C	GATVU	VHF	left	113 (293)°	6000ft - 9000ft	1.0min timed	250
SALA3E	GATVU	VHF	left	113 (293)°	6000ft - 9000ft	1.0min timed	250
*) magnetic outbound (inbound) holding course

Actual weather data

METAR LLBG 111050Z 31011KT 280V340 CAVOK 31/09 Q1009 NOSIG

TAF LLBG 110507Z 1106/1206 VRB04KT 8000 SCT010 BECMG 1107/1109 31010KT CAVOK BECMG 1114/1116 02005KT BECMG 1118/1120 VRB04KT BECMG 1202/1204 24012KT PROB30 1204/1206 24015G25KT 5000 HZ TX32/1113Z TN22/1204Z

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
