Airports for X-Plane

Linz - Linz Hoersching

Airport details

CountryAustria
StateUpper Austria
RegionLO
AirspaceVienna Ctr
MunicipalityHörsching
Elevation978ft (298m)
TimezoneGMT +1
Coordinates48.23094, 14.19756
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLOWL
IATA codeLNZ
FAA coden/a

Communication

Linz Hoersching ATIS128.125
Linz Hoersching Tower118.800
Linz Hoersching RADAR129.625

Approach frequencies

ILS-cat-IIIRW26109.318.00mi
ILS-cat-IRW08110.5518.00mi
3° GSRW26109.318.00mi
3° GSRW08110.5518.00mi

Runway info

Runway 07 / 25
 length301m (988ft)
 bearing88° / 268°
 width46m (151ft)
 surfacehard surface
Runway 8L / 26R
 length572m (1877ft)
 bearing88° / 268°
 width50m (164ft)
 surfacegrass
Runway 08 / 26
 length2992m (9816ft)
 bearing88° / 268°
 width60m (198ft)
 surfaceasphalt
 displ threshold250m (820ft) / 154m (505ft)
 blast zone31m (102ft) / 28m (92ft)

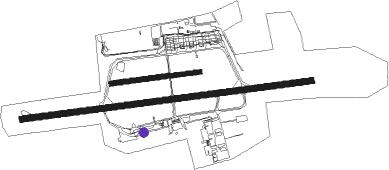

Airport layout - parking location MI13


Taxiway locations

 A  B  C  D  F  G  V  Z
Parking locations

 F16  F17  G11  G12  G21  G22  G23  Gate
 Helo  MI11  MI13  MI15  Mil

Nearby beacons

codeidentifierdistbearingfrequency
LNZLINZ VOR/DME3.7269°116.60
LNZLINZ NDB4.987°327
FREDME12.3341°113.50

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW08
 PERO1E11mi88°
 LIMR1E22mi142°
 LIDS1E12mi268°
 PETE1E11mi353°
RW26
 PERO1W11mi88°
 LIMR1W22mi142°
 LIDS1W12mi268°
 PETE1W11mi353°

STAR starting pointsdistanceinbound heading
ALL
 NUBR1K31.128°
 NEMA1K33.766°
 SBG1K54.080°
 AKIM1K37.0102°
 DEXI1K37.3137°
 ADLE1K20.6197°
 STO2K73.5264°
 SITN1K27.6286°
 LIMR1K21.6322°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08ARA1C (16°)ARASA 8000ft
WL812 (6mi, 356°) 5000ft
WL802 (12mi, 268°) 4000ft
WL807 (5mi, 268°) 4000ft
WL808 (5mi, 355°) 4000ft
LIDSI (5mi, 88°) 4000ft
RW08PET1C (16°)PETEN 6000ft
WL811 (6mi, 176°) 5000ft
WL801 (12mi, 268°) 4000ft
WL806 (5mi, 268°) 4000ft
WL808 (5mi, 175°) 4000ft
LIDSI (5mi, 88°) 4000ft
RW08WL801 (104°)WL801 4000ft
LIDSI (5mi, 175°) 4000ft
RW08WL802 (73°)WL802 4000ft
LIDSI (5mi, 355°) 4000ft
 RNAVLIDSI 4000ft
WL803 (5mi, 88°) 3000ft
LOWL (7mi, 89°) 1031ft
WL623 (5mi, 87°)
LIDSI (17mi, 268°) 4000ft
LIDSI (turn)
RW26ARA1D (16°)ARASA 8000ft
WL812 (6mi, 356°) 5000ft
WL822 (12mi, 88°) 4000ft
WL827 (5mi, 88°) 4000ft
WL828 (5mi, 356°) 4000ft
PEROL (5mi, 268°) 4000ft
RW26PET1D (16°)PETEN 6000ft
WL811 (6mi, 176°) 5000ft
WL821 (12mi, 88°) 5000ft
WL826 (5mi, 88°) 4000ft
WL828 (5mi, 176°) 4000ft
PEROL (5mi, 268°) 4000ft
RW26WL821 (251°)WL821 5000ft
PEROL (5mi, 176°) 4000ft
RW26WL822 (284°)WL822 4000ft
PEROL (5mi, 356°) 4000ft
 RNAVPEROL 4000ft
WL823 (5mi, 268°) 3000ft
LOWL (7mi, 267°) 1016ft
WL824 (5mi, 269°)
PEROL (16mi, 88°) 4000ft
PEROL (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADLE1KPETENVHFright353 (173)°> 6000ft1.0min timedICAO rules
AKIM1KPETENVHFright353 (173)°> 6000ft1.0min timedICAO rules
DEXI1KPETENVHFright353 (173)°> 6000ft1.0min timedICAO rules
LIMR1KARASAVHFright173 (353)°> 8000ft1.0min timedICAO rules
LNZ1KPETENVHFright353 (173)°> 6000ft1.0min timedICAO rules
NEMA1KARASAVHFright173 (353)°> 8000ft1.0min timedICAO rules
NUBR1KARASAVHFright173 (353)°> 8000ft1.0min timedICAO rules
SBG1KARASAVHFright173 (353)°> 8000ft1.0min timedICAO rules
SITN1KARASAVHFright173 (353)°> 8000ft1.0min timedICAO rules
STO2KPETENVHFright353 (173)°> 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
