Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

aerodrome traffic commuter corporation customs aviation nation gravel seaplanes ferry air traffic control airdrome airspeed runway passengers regional tarmac arrival jetliner pilot

Airports for X-Plane

Linz - Linz Hoersching

Airport details

CountryAustria
StateUpper Austria
RegionLO
AirspaceVienna Ctr
MunicipalityHörsching
Elevation978ft (298m)
TimezoneGMT +1
Coordinates48.23094, 14.19756
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLOWL
IATA codeLNZ
FAA coden/a

Communication

Linz Hoersching ATIS128.125
Linz Hoersching Tower118.800
Linz Hoersching RADAR129.625

Approach frequencies

ILS-cat-IIIRW26109.318.00mi
ILS-cat-IRW08110.5518.00mi
3° GSRW26109.318.00mi
3° GSRW08110.5518.00mi
Nearby Points of Interest:
Vogler Aerodrome
-
Pfarrkirche Hörsching
-
Neue Pfarrkirche Pasching
-
Katholische Pfarrkirche Traun
-
Evangelische Pfarrkirche Traun
-
Sankt Michael
-
Katholische Pfarrkirche Leonding-Doppl
-
Pfarrkirche Dörnbach
-
Sankt Leonhard
-
Pfarrkirche Heiliger Vitus (Berg an der Krems)
-
Pfarrkirche Leonding-Hart
-
Kinderdorfanlage St. Isidor
-
Landwirtschaftliche Berufs- und Fachschule Ritzlhof
-
parish church Saint Michael (Leonding)
-
Sankt Valentin (Ansfelden)
-
Sankt Vitus
-
Pfarrkirche St. Konrad Linz
-
Ehem. Schul- und Gemeindehaus
-
Pfarrkirche Mariä Himmelfahrt
-
Pfarrkirche Kleinmünchen
-
Neuromed Campus
-
Jaukermühle
-
Jägermayrhof
-
Pfarrkirche Puchenau
-
Grillmayr Schlößl

Runway info

Runway 07 / 25
 length301m (988ft)
 bearing88° / 268°
 width46m (151ft)
 surfacehard surface
Runway 8L / 26R
 length572m (1877ft)
 bearing88° / 268°
 width50m (164ft)
 surfacegrass
Runway 08 / 26
 length2992m (9816ft)
 bearing88° / 268°
 width60m (198ft)
 surfaceasphalt
 displ threshold250m (820ft) / 154m (505ft)
 blast zone31m (102ft) / 28m (92ft)

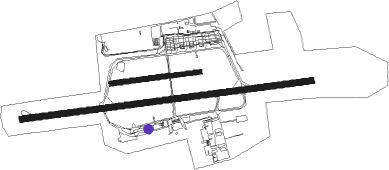

Airport layout - parking location MI15


Taxiway locations

 A  B  C  D  F  G  V  Z
Parking locations

 F16  F17  G11  G12  G21  G22  G23  Gate
 Helo  MI11  MI13  MI15  Mil

Nearby beacons

codeidentifierdistbearingfrequency
LNZLINZ VOR/DME3.7269°116.60
LNZLINZ NDB4.987°327
FREDME12.3341°113.50

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW08
 PERO1E11mi88°
 LIMR1E22mi142°
 LIDS1E12mi268°
 PETE1E11mi353°
RW26
 PERO1W11mi88°
 LIMR1W22mi142°
 LIDS1W12mi268°
 PETE1W11mi353°

STAR starting pointsdistanceinbound heading
ALL
 NUBR1K31.128°
 NEMA1K33.766°
 SBG1K54.080°
 AKIM1K37.0102°
 DEXI1K37.3137°
 ADLE1K20.6197°
 STO2K73.5264°
 SITN1K27.6286°
 LIMR1K21.6322°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08ARA1C (16°)ARASA 8000ft
WL812 (6mi, 356°) 5000ft
WL802 (12mi, 268°) 4000ft
WL807 (5mi, 268°) 4000ft
WL808 (5mi, 355°) 4000ft
LIDSI (5mi, 88°) 4000ft
RW08PET1C (16°)PETEN 6000ft
WL811 (6mi, 176°) 5000ft
WL801 (12mi, 268°) 4000ft
WL806 (5mi, 268°) 4000ft
WL808 (5mi, 175°) 4000ft
LIDSI (5mi, 88°) 4000ft
RW08WL801 (104°)WL801 4000ft
LIDSI (5mi, 175°) 4000ft
RW08WL802 (73°)WL802 4000ft
LIDSI (5mi, 355°) 4000ft
 RNAVLIDSI 4000ft
WL803 (5mi, 88°) 3000ft
LOWL (7mi, 89°) 1031ft
WL623 (5mi, 87°)
LIDSI (17mi, 268°) 4000ft
LIDSI (turn)
RW26ARA1D (16°)ARASA 8000ft
WL812 (6mi, 356°) 5000ft
WL822 (12mi, 88°) 4000ft
WL827 (5mi, 88°) 4000ft
WL828 (5mi, 356°) 4000ft
PEROL (5mi, 268°) 4000ft
RW26PET1D (16°)PETEN 6000ft
WL811 (6mi, 176°) 5000ft
WL821 (12mi, 88°) 5000ft
WL826 (5mi, 88°) 4000ft
WL828 (5mi, 176°) 4000ft
PEROL (5mi, 268°) 4000ft
RW26WL821 (251°)WL821 5000ft
PEROL (5mi, 176°) 4000ft
RW26WL822 (284°)WL822 4000ft
PEROL (5mi, 356°) 4000ft
 RNAVPEROL 4000ft
WL823 (5mi, 268°) 3000ft
LOWL (7mi, 267°) 1016ft
WL824 (5mi, 269°)
PEROL (16mi, 88°) 4000ft
PEROL (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADLE1KPETENVHFright353 (173)°> 6000ft1.0min timedICAO rules
AKIM1KPETENVHFright353 (173)°> 6000ft1.0min timedICAO rules
DEXI1KPETENVHFright353 (173)°> 6000ft1.0min timedICAO rules
LIMR1KARASAVHFright173 (353)°> 8000ft1.0min timedICAO rules
LNZ1KPETENVHFright353 (173)°> 6000ft1.0min timedICAO rules
NEMA1KARASAVHFright173 (353)°> 8000ft1.0min timedICAO rules
NUBR1KARASAVHFright173 (353)°> 8000ft1.0min timedICAO rules
SBG1KARASAVHFright173 (353)°> 8000ft1.0min timedICAO rules
SITN1KARASAVHFright173 (353)°> 8000ft1.0min timedICAO rules
STO2KPETENVHFright353 (173)°> 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
