Airports4XP | OMAA | Abu Dhabi

Abu Dhabi - Abu Dhabi Intl

Airport details

Country	United Arab Emirates
State	Abu Dhabi Emirate
Region	OM
Airspace	Emirates Ctr
Municipality	Al Matar
Elevation	83ft (25m)
Timezone	GMT +4
Coordinates	24.43306, 54.65111
Magnetic var
Type	land
Available since	X-Plane v10.30
ICAO code	OMAA
IATA code	AUH
FAA code	n/a

Communication

Abu Dhabi Intl ATIS	119.975
Abu Dhabi Intl DEL	125.100
Abu Dhabi Intl Ground Control North	121.950
Abu Dhabi Intl Ground Control South	123.975
Abu Dhabi Intl Tower North	118.675
Abu Dhabi Intl Tower South	119.200
Abu Dhabi Intl Approach East	132.675
Abu Dhabi Intl Approach West	128.100
Abu Dhabi Intl Approach Central	124.400
Abu Dhabi Intl Approach North	135.150
Abu Dhabi Intl Departure	120.425

Approach frequencies

ILS-cat-III	RW31L	109.3	18.00mi
ILS-cat-I	RW13R	109.15	18.00mi
ILS-cat-I	RW31R	108.75	18.00mi
ILS-cat-I	RW13L	110.3	18.00mi
3° GS	RW13R	109.15	18.00mi
3° GS	RW31R	108.75	18.00mi
3° GS	RW13L	110.3	18.00mi
3° GS	RW31L	109.3	18.00mi

Runway info

Runway 13L / 31R
	length	4101m (13455ft)
	bearing	125° / 305°
	width	60m (197ft)
	surface	asphalt
	blast zone	131m (430ft) / 132m (433ft)
Runway 13R / 31L
	length	4104m (13465ft)
	bearing	125° / 305°
	width	60m (197ft)
	surface	asphalt
	blast zone	122m (400ft) / 126m (413ft)

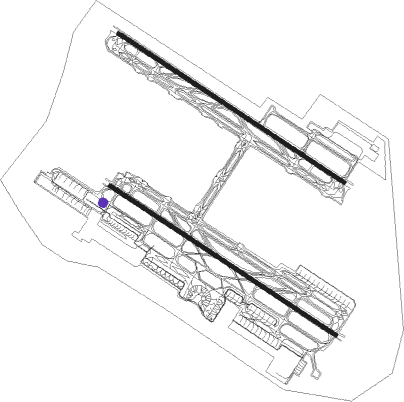

Airport layout - taxiway location E

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
ADV	ABU DHABI VOR/DME	1.4	122°	114.25
ALB	AL BATEEN (ABU DHABI) VOR/DME	11.2	272°	114
ALN	AL AIN VOR/DME	53.2	100°	112.60
ALA	AL AIN VOR/DME	53.5	99°	115.90
MIN	MINHAD VOR/DME	54	51°	115.20

Departure and arrival routes

Transition altitude

13000ft

Transition level

15000ft

SID end points		distance	outbound heading
RW13L
	TULO1F	30mi	16°
	KANI3F	41mi	110°
	ORNE1F	44mi	119°
	MEKR1F	41mi	277°
	BOSE1F	39mi	305°
	DAXI1F	40mi	314°
	LORI1F	30mi	360°
RW13R
	TULO1G	30mi	16°
	KANI3G	41mi	110°
	ORNE1G	44mi	119°
	MEKR1G	41mi	277°
	BOSE1G	39mi	305°
	DAXI1G	40mi	314°
	LORI1G	30mi	360°
RW31L
	TULO2K	30mi	16°
	KANI4K, KANI2U	41mi	110°
	ORNE1U, ORNE2K	44mi	119°
	MEKR2K	41mi	277°
	BOSE1K	39mi	305°
	DAXI1K	40mi	314°
	LORI2K	30mi	360°
RW31R
	TULO1P	30mi	16°
	KANI1N, KANI3P	41mi	110°
	ORNE1P	44mi	119°
	MEKR1P	41mi	277°
	BOSE1P	39mi	305°
	DAXI1P	40mi	314°
	LORI1P	30mi	360°

STAR starting points		distance	inbound heading
RW13 (ALL)
	UKIL1B, UKIL2A	40.5	106°
	GIDO3A, GIDO2B	40.3	116°
	ELOV2B, ELOV3A	35.7	149°
	EMER2A, EMER1B	31.3	227°
	ROVO5A, ROVO4B, ROVO3H	39.6	280°
	NOBT7A, NOBT6B, NOBT3H	47.3	308°
RW31 (ALL)
	UKIL3D, UKIL4C, UKIL2J	40.5	106°
	GIDO1D, GIDO2C, GIDO2M, GIDO3J	40.3	116°
	ELOV3C, ELOV2D	35.7	149°
	EMER3C, EMER2D	31.3	227°
	ROVO3J, ROVO5D, ROVO6C	39.6	280°
	NOBT6D, NOBT4J, NOBT7C	47.3	308°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW13LY	NOPNU (343°)	NOPNU 9000ft AA623 (13mi, 298°) 4000ft AA622 (4mi, 332°) 4000ft AA621 (3mi, 39°) 3000ft MENDU (4mi, 96°) 1900ft
RW13LY	PEKAX (107°)	PEKAX 8000ft AA612 (15mi, 91°) AA611 (2mi, 108°) 3000ft MENDU (4mi, 125°) 1900ft
RW13LY	RIBUV (160°)	RIBUV AA613 (5mi, 188°) AA601 (3mi, 190°) 3000ft MENDU (4mi, 156°) 1900ft
RW13LY	RIDIB (244°)	RIDIB 9000ft AA701 (4mi, 253°) ELEPO (4mi, 280°) AA603 (8mi, 308°) AA602 (4mi, 277°) AA601 (3mi, 219°) 3000ft MENDU (4mi, 156°) 1900ft
RW13LY	SISUG (259°)	SISUG 8000ft ELEPO (7mi, 305°) AA603 (8mi, 308°) AA602 (4mi, 277°) AA601 (3mi, 219°) 3000ft MENDU (4mi, 156°) 1900ft
RW13LY	TUMEX (208°)	TUMEX AA604 (6mi, 333°) AA603 (1mi, 320°) AA602 (4mi, 277°) AA601 (3mi, 219°) 3000ft MENDU (4mi, 156°) 1900ft
	RNAV	MENDU 1900ft LOVUB (2mi, 125°) 1300ft OMAA (6mi, 136°) 112ft AA415 (2mi, 93°) AA631 (2mi, 108°) DASNU (10mi, 92°) ALSOV (10mi, 124°) 4000ft ALSOV (turn) 6000ft
RW13LZ	IMSIG (125°)	IMSIG 5000ft PUVOD (8mi, 118°) 3000ft
RW13LZ	ORDAK (128°)	ORDAK 4000ft AA408 (4mi, 125°) 3000ft PUVOD (4mi, 125°) 3000ft
	RNAV	PUVOD 3000ft DERVA (6mi, 125°) 2000ft OMAA (8mi, 133°) 118ft AA415 (2mi, 93°) DASNU (11mi, 95°) ALSOV (10mi, 124°) 4000ft ALSOV (turn) 6000ft
RW13RY	NOPNU (343°)	NOPNU 9000ft AA653 (12mi, 293°) 4000ft AA652 (4mi, 330°) 4000ft AA651 (3mi, 42°) 3000ft RETUX (3mi, 97°) 1900ft
RW13RY	PEKAX (107°)	PEKAX 8000ft AA672 (16mi, 95°) AA671 (2mi, 110°) 3000ft RETUX (4mi, 125°) 1900ft
RW13RY	RIBUV (160°)	RIBUV AA673 (6mi, 196°) AA641 (3mi, 180°) 3000ft RETUX (3mi, 152°) 1900ft
RW13RY	RIDIB (244°)	RIDIB 9000ft AA701 (4mi, 253°) ELEPO (4mi, 280°) AA643 (7mi, 307°) AA642 (5mi, 269°) AA641 (3mi, 206°) 3000ft RETUX (3mi, 152°) 1900ft
RW13RY	SISUG (259°)	SISUG 8000ft ELEPO (7mi, 305°) AA643 (7mi, 307°) AA642 (5mi, 269°) AA641 (3mi, 206°) 3000ft RETUX (3mi, 152°) 1900ft
RW13RY	TUMEX (208°)	TUMEX AA644 (5mi, 335°) AA643 (2mi, 320°) AA642 (5mi, 269°) AA641 (3mi, 206°) 3000ft RETUX (3mi, 152°) 1900ft
	RNAV	RETUX 1900ft ORSOB (2mi, 125°) 1300ft OMAA (5mi, 125°) 128ft ITKOV (14mi, 125°) 4000ft ITKOV (turn) 6000ft
RW13RZ	IMSIG (125°)	IMSIG 5000ft AA428 (4mi, 125°) 4000ft KINIL (4mi, 125°) 3000ft
RW13RZ	ORDAK (128°)	ORDAK 4000ft KINIL (8mi, 133°) 3000ft
	RNAV	KINIL 3000ft ELEXU (3mi, 125°) 3000ft OMAA (11mi, 125°) 134ft ITKOV (14mi, 125°) 4000ft ITKOV (turn) 6000ft
RW31LY	GEXOD (275°)	GEXOD 6000ft AA772 (12mi, 248°) AA771 (4mi, 277°) 3000ft KUSOK (4mi, 305°) 1900ft
RW31LY	ITUGO (218°)	ITUGO 9000ft AA713 (6mi, 106°) AA712 (6mi, 145°) 4000ft AA711 (5mi, 225°) 3000ft KUSOK (4mi, 282°) 1900ft
RW31LY	MERPU (315°)	MERPU 6500ft ITREN (10mi, 337°) 5000ft AA771 (11mi, 306°) 3000ft KUSOK (4mi, 305°) 1900ft
RW31LY	ORMED (84°)	ORMED AA723 (12mi, 136°) AA722 (5mi, 99°) AA721 (3mi, 36°) 3000ft KUSOK (4mi, 336°) 1900ft
RW31LY	TUGVA (239°)	TUGVA 10000ft AA712 (11mi, 189°) 4000ft AA711 (5mi, 225°) 3000ft KUSOK (4mi, 282°) 1900ft
	RNAV	KUSOK 1900ft KATIG (2mi, 305°) 1300ft OMAA (5mi, 305°) 133ft VEDEX (13mi, 305°) 4000ft VUTOK (10mi, 265°) 4000ft VUTOK (turn) 6000ft
RW31LZ	ITREN (305°)	ITREN 5000ft AA430 (4mi, 306°) 4000ft LUBIK (4mi, 306°) 3000ft
RW31LZ	PEGUM (303°)	PEGUM 4000ft LUBIK (8mi, 298°) 3000ft
	RNAV	LUBIK 3000ft ASMUP (3mi, 305°) 3000ft OMAA (11mi, 305°) 138ft VEDEX (13mi, 305°) 4000ft VUTOK (10mi, 265°) 4000ft VUTOK (turn) 6000ft
RW31RY	GEXOD (275°)	GEXOD 6000ft AA762 (12mi, 253°) AA761 (4mi, 279°) 3000ft IVEGU (4mi, 305°) 1900ft
RW31RY	ITUGO (218°)	ITUGO 9000ft AA733 (5mi, 95°) AA732 (6mi, 139°) 4000ft AA731 (5mi, 225°) 3000ft IVEGU (4mi, 282°) 1900ft
RW31RY	MERPU (315°)	MERPU 6500ft PEGUM (10mi, 343°) AA761 (12mi, 306°) 3000ft IVEGU (4mi, 305°) 1900ft
RW31RY	ORMED (84°)	ORMED AA743 (11mi, 134°) AA742 (5mi, 94°) AA741 (3mi, 29°) 3000ft IVEGU (4mi, 333°) 1900ft
RW31RY	TUGVA (239°)	TUGVA 10000ft AA732 (9mi, 188°) 4000ft AA731 (5mi, 225°) 3000ft IVEGU (4mi, 282°) 1900ft
	RNAV	IVEGU 1900ft RUDON (2mi, 305°) 1300ft OMAA (5mi, 292°) 122ft AA416 (2mi, 332°) AA751 (2mi, 323°) TADBU (8mi, 341°) LUBUS (10mi, 313°) 4000ft LUBUS (turn) 6000ft
RW31RZ	ITREN (305°)	ITREN 5000ft SETRU (8mi, 313°) 3000ft
RW31RZ	PEGUM (303°)	PEGUM 4000ft AA420 (4mi, 306°) 3000ft SETRU (4mi, 306°) 3000ft
	RNAV	SETRU 3000ft GIPNA (7mi, 305°) 2000ft OMAA (7mi, 297°) 128ft AA416 (2mi, 332°) TADBU (10mi, 338°) LUBUS (10mi, 313°) 4000ft LUBUS (turn) 6000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
ATUD2A	OVOLA	VHF	right	126 (306)°	4000ft - 13000ft	1.0min timed	230
ATUD2C	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
ATUD4D	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
ELOV2D	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
ELOV3A	OVOLA	VHF	right	126 (306)°	4000ft - 13000ft	1.0min timed	230
ELOV3C	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
EMER2A	OVOLA	VHF	right	126 (306)°	4000ft - 13000ft	1.0min timed	230
EMER2D	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
EMER3C	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
GIDO1D	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
GIDO1D	ORGAD	VHF	left	295 (115)°	6000ft - 13000ft	1.0min timed	230
GIDO2C	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
GIDO2C	ORGAD	VHF	left	295 (115)°	6000ft - 13000ft	1.0min timed	230
GIDO2M	ORGAD	VHF	left	295 (115)°	6000ft - 13000ft	1.0min timed	230
GIDO2M	TAPTO	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
GIDO3A	OVOLA	VHF	right	126 (306)°	4000ft - 13000ft	1.0min timed	230
GIDO3J	ORGAD	VHF	left	295 (115)°	6000ft - 13000ft	1.0min timed	230
GIDO3J	TAPTO	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
NOBT3H	OVOLA	VHF	right	126 (306)°	4000ft - 13000ft	1.0min timed	230
NOBT3H	SITIB	VHF	right	115 (295)°	6000ft - 13000ft	1.0min timed	ICAO rules
NOBT4J	GEXOD	VHF	left	107 (287)°	6000ft - 13000ft	1.0min timed	ICAO rules
NOBT4J	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
NOBT4J	SITIB	VHF	right	115 (295)°	6000ft - 13000ft	1.0min timed	ICAO rules
NOBT6B	SITIB	VHF	right	115 (295)°	6000ft - 13000ft	1.0min timed	ICAO rules
NOBT6D	SITIB	VHF	right	115 (295)°	6000ft - 13000ft	1.0min timed	ICAO rules
NOBT7A	PAXIK	VHF	left	126 (306)°	4000ft - 13000ft	1.0min timed	230
NOBT7A	SITIB	VHF	right	115 (295)°	6000ft - 13000ft	1.0min timed	ICAO rules
NOBT7C	SITIB	VHF	right	115 (295)°	6000ft - 13000ft	1.0min timed	ICAO rules
ROVO3H	PAXIK	VHF	left	126 (306)°	4000ft - 13000ft	1.0min timed	230
ROVO4B	GEXOD	VHF	left	107 (287)°	6000ft - 13000ft	1.0min timed	ICAO rules
ROVO5A	GEXOD	VHF	left	107 (287)°	6000ft - 13000ft	1.0min timed	ICAO rules
ROVO5A	OVOLA	VHF	right	126 (306)°	4000ft - 13000ft	1.0min timed	230
ROVO5D	GEXOD	VHF	left	107 (287)°	6000ft - 13000ft	1.0min timed	ICAO rules
ROVO5D	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
ROVO6C	GEXOD	VHF	left	107 (287)°	6000ft - 13000ft	1.0min timed	ICAO rules
ROVO6C	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
UKIL2A	PAXIK	VHF	left	126 (306)°	4000ft - 13000ft	1.0min timed	230
UKIL2J	LOXIX	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
UKIL2J	ORGAD	VHF	left	295 (115)°	6000ft - 13000ft	1.0min timed	230
UKIL3D	TAPTO	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
UKIL4C	TAPTO	VHF	left	306 (126)°	4000ft - 6000ft	1.0min timed	210
*) magnetic outbound (inbound) holding course

Actual weather data

METAR OMAA 072200Z 27008KT CAVOK 27/15 Q1004 NOSIG

TAF OMAA 071700Z 0718/0900 31015KT 8000 NSC PROB30 TEMPO 0805/0814 31018G28KT 4000 BLDU BECMG 0816/0818 23008KT

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
