Airports for X-Plane

Abu Dhabi - Abu Dhabi Intl

Airport details

CountryUnited Arab Emirates
StateAbu Dhabi Emirate
RegionOM
AirspaceEmirates Ctr
MunicipalityAl Matar
Elevation83ft (25m)
TimezoneGMT +4
Coordinates24.43306, 54.65111
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeOMAA
IATA codeAUH
FAA coden/a

Communication

Abu Dhabi Intl ATIS119.975
Abu Dhabi Intl DEL125.100
Abu Dhabi Intl Ground Control North121.950
Abu Dhabi Intl Ground Control South123.975
Abu Dhabi Intl Tower North118.675
Abu Dhabi Intl Tower South119.200
Abu Dhabi Intl Approach East132.675
Abu Dhabi Intl Approach West128.100
Abu Dhabi Intl Approach Central124.400
Abu Dhabi Intl Approach North135.150
Abu Dhabi Intl Departure120.425

Approach frequencies

ILS-cat-IIIRW31L109.318.00mi
ILS-cat-IRW13R109.1518.00mi
ILS-cat-IRW31R108.7518.00mi
ILS-cat-IRW13L110.318.00mi
3° GSRW13R109.1518.00mi
3° GSRW31R108.7518.00mi
3° GSRW13L110.318.00mi
3° GSRW31L109.318.00mi

Runway info

Runway 13L / 31R
 length4101m (13455ft)
 bearing125° / 305°
 width60m (197ft)
 surfaceasphalt
 blast zone131m (430ft) / 132m (433ft)
Runway 13R / 31L
 length4104m (13465ft)
 bearing125° / 305°
 width60m (197ft)
 surfaceasphalt
 blast zone122m (400ft) / 126m (413ft)

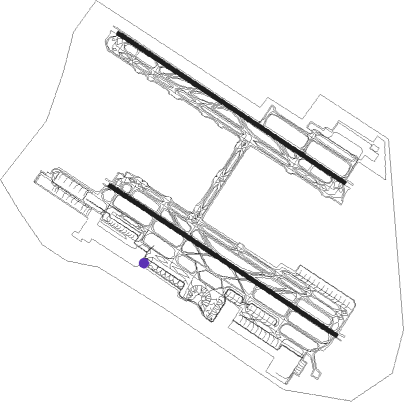

Airport layout - parking location 301


Taxiway locations

 A  A1  A10  A11  A13  A14  A16  A17
 A18  A2  A3  A5  A6  A8  B  B4
 C  D  D1  D10  D11  D2  D3  D4
 D5  D6  D7  D8  D9  E  E10  E12
 E13  E14  E15  E2  E3  E4  E4N  E4S
 E6  E7  E8  F  G  H  N  Z1
 Z2  Z3
Parking locations

 101  102  103  104  111  112  113  121
 122  123  131  132  133  135  136  201
 202  203  204  205  206  207  208  209
 221  222  301  302  303  304  305  306
 307  308  309  401  402  403  404  405
 406  407  408  409  410  411  412  413
 414  415  416  417  418  419  508  509
 510  511  512  513  514  515  516  704
 705  706  707  708  709  710  711  712
 713  714  715  801  802  803  804  805
 GA  Heli  Mil  President

Nearby beacons

codeidentifierdistbearingfrequency
ADVABU DHABI VOR/DME1.4122°114.25
ALBAL BATEEN (ABU DHABI) VOR/DME11.2272°114
ALNAL AIN VOR/DME53.2100°112.60
ALAAL AIN VOR/DME53.599°115.90
MINMINHAD VOR/DME5451°115.20

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW13L
 TULO1F30mi16°
 KANI3F41mi110°
 ORNE1F44mi119°
 MEKR1F41mi277°
 BOSE1F39mi305°
 DAXI1F40mi314°
 LORI1F30mi360°
RW13R
 TULO1G30mi16°
 KANI3G41mi110°
 ORNE1G44mi119°
 MEKR1G41mi277°
 BOSE1G39mi305°
 DAXI1G40mi314°
 LORI1G30mi360°
RW31L
 TULO2K30mi16°
 KANI4K, KANI2U41mi110°
 ORNE1U, ORNE2K44mi119°
 MEKR2K41mi277°
 BOSE1K39mi305°
 DAXI1K40mi314°
 LORI2K30mi360°
RW31R
 TULO1P30mi16°
 KANI1N, KANI3P41mi110°
 ORNE1P44mi119°
 MEKR1P41mi277°
 BOSE1P39mi305°
 DAXI1P40mi314°
 LORI1P30mi360°

STAR starting pointsdistanceinbound heading
RW13 (ALL)
 UKIL1B, UKIL2A40.5106°
 GIDO3A, GIDO2B40.3116°
 ELOV2B, ELOV3A35.7149°
 EMER2A, EMER1B31.3227°
 ROVO5A, ROVO4B, ROVO3H39.6280°
 NOBT7A, NOBT6B, NOBT3H47.3308°
RW31 (ALL)
 UKIL3D, UKIL4C, UKIL2J40.5106°
 GIDO1D, GIDO2C, GIDO2M, GIDO3J40.3116°
 ELOV3C, ELOV2D35.7149°
 EMER3C, EMER2D31.3227°
 ROVO3J, ROVO5D, ROVO6C39.6280°
 NOBT6D, NOBT4J, NOBT7C47.3308°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13LYNOPNU (343°)NOPNU 9000ft
AA623 (13mi, 298°) 4000ft
AA622 (4mi, 332°) 4000ft
AA621 (3mi, 39°) 3000ft
MENDU (4mi, 96°) 1900ft
RW13LYPEKAX (107°)PEKAX 8000ft
AA612 (15mi, 91°)
AA611 (2mi, 108°) 3000ft
MENDU (4mi, 125°) 1900ft
RW13LYRIBUV (160°)RIBUV
AA613 (5mi, 188°)
AA601 (3mi, 190°) 3000ft
MENDU (4mi, 156°) 1900ft
RW13LYRIDIB (244°)RIDIB 9000ft
AA701 (4mi, 253°)
ELEPO (4mi, 280°)
AA603 (8mi, 308°)
AA602 (4mi, 277°)
AA601 (3mi, 219°) 3000ft
MENDU (4mi, 156°) 1900ft
RW13LYSISUG (259°)SISUG 8000ft
ELEPO (7mi, 305°)
AA603 (8mi, 308°)
AA602 (4mi, 277°)
AA601 (3mi, 219°) 3000ft
MENDU (4mi, 156°) 1900ft
RW13LYTUMEX (208°)TUMEX
AA604 (6mi, 333°)
AA603 (1mi, 320°)
AA602 (4mi, 277°)
AA601 (3mi, 219°) 3000ft
MENDU (4mi, 156°) 1900ft
 RNAVMENDU 1900ft
LOVUB (2mi, 125°) 1300ft
OMAA (6mi, 136°) 112ft
AA415 (2mi, 93°)
AA631 (2mi, 108°)
DASNU (10mi, 92°)
ALSOV (10mi, 124°) 4000ft
ALSOV (turn) 6000ft
RW13LZIMSIG (125°)IMSIG 5000ft
PUVOD (8mi, 118°) 3000ft
RW13LZORDAK (128°)ORDAK 4000ft
AA408 (4mi, 125°) 3000ft
PUVOD (4mi, 125°) 3000ft
 RNAVPUVOD 3000ft
DERVA (6mi, 125°) 2000ft
OMAA (8mi, 133°) 118ft
AA415 (2mi, 93°)
DASNU (11mi, 95°)
ALSOV (10mi, 124°) 4000ft
ALSOV (turn) 6000ft
RW13RYNOPNU (343°)NOPNU 9000ft
AA653 (12mi, 293°) 4000ft
AA652 (4mi, 330°) 4000ft
AA651 (3mi, 42°) 3000ft
RETUX (3mi, 97°) 1900ft
RW13RYPEKAX (107°)PEKAX 8000ft
AA672 (16mi, 95°)
AA671 (2mi, 110°) 3000ft
RETUX (4mi, 125°) 1900ft
RW13RYRIBUV (160°)RIBUV
AA673 (6mi, 196°)
AA641 (3mi, 180°) 3000ft
RETUX (3mi, 152°) 1900ft
RW13RYRIDIB (244°)RIDIB 9000ft
AA701 (4mi, 253°)
ELEPO (4mi, 280°)
AA643 (7mi, 307°)
AA642 (5mi, 269°)
AA641 (3mi, 206°) 3000ft
RETUX (3mi, 152°) 1900ft
RW13RYSISUG (259°)SISUG 8000ft
ELEPO (7mi, 305°)
AA643 (7mi, 307°)
AA642 (5mi, 269°)
AA641 (3mi, 206°) 3000ft
RETUX (3mi, 152°) 1900ft
RW13RYTUMEX (208°)TUMEX
AA644 (5mi, 335°)
AA643 (2mi, 320°)
AA642 (5mi, 269°)
AA641 (3mi, 206°) 3000ft
RETUX (3mi, 152°) 1900ft
 RNAVRETUX 1900ft
ORSOB (2mi, 125°) 1300ft
OMAA (5mi, 125°) 128ft
ITKOV (14mi, 125°) 4000ft
ITKOV (turn) 6000ft
RW13RZIMSIG (125°)IMSIG 5000ft
AA428 (4mi, 125°) 4000ft
KINIL (4mi, 125°) 3000ft
RW13RZORDAK (128°)ORDAK 4000ft
KINIL (8mi, 133°) 3000ft
 RNAVKINIL 3000ft
ELEXU (3mi, 125°) 3000ft
OMAA (11mi, 125°) 134ft
ITKOV (14mi, 125°) 4000ft
ITKOV (turn) 6000ft
RW31LYGEXOD (275°)GEXOD 6000ft
AA772 (12mi, 248°)
AA771 (4mi, 277°) 3000ft
KUSOK (4mi, 305°) 1900ft
RW31LYITUGO (218°)ITUGO 9000ft
AA713 (6mi, 106°)
AA712 (6mi, 145°) 4000ft
AA711 (5mi, 225°) 3000ft
KUSOK (4mi, 282°) 1900ft
RW31LYMERPU (315°)MERPU 6500ft
ITREN (10mi, 337°) 5000ft
AA771 (11mi, 306°) 3000ft
KUSOK (4mi, 305°) 1900ft
RW31LYORMED (84°)ORMED
AA723 (12mi, 136°)
AA722 (5mi, 99°)
AA721 (3mi, 36°) 3000ft
KUSOK (4mi, 336°) 1900ft
RW31LYTUGVA (239°)TUGVA 10000ft
AA712 (11mi, 189°) 4000ft
AA711 (5mi, 225°) 3000ft
KUSOK (4mi, 282°) 1900ft
 RNAVKUSOK 1900ft
KATIG (2mi, 305°) 1300ft
OMAA (5mi, 305°) 133ft
VEDEX (13mi, 305°) 4000ft
VUTOK (10mi, 265°) 4000ft
VUTOK (turn) 6000ft
RW31LZITREN (305°)ITREN 5000ft
AA430 (4mi, 306°) 4000ft
LUBIK (4mi, 306°) 3000ft
RW31LZPEGUM (303°)PEGUM 4000ft
LUBIK (8mi, 298°) 3000ft
 RNAVLUBIK 3000ft
ASMUP (3mi, 305°) 3000ft
OMAA (11mi, 305°) 138ft
VEDEX (13mi, 305°) 4000ft
VUTOK (10mi, 265°) 4000ft
VUTOK (turn) 6000ft
RW31RYGEXOD (275°)GEXOD 6000ft
AA762 (12mi, 253°)
AA761 (4mi, 279°) 3000ft
IVEGU (4mi, 305°) 1900ft
RW31RYITUGO (218°)ITUGO 9000ft
AA733 (5mi, 95°)
AA732 (6mi, 139°) 4000ft
AA731 (5mi, 225°) 3000ft
IVEGU (4mi, 282°) 1900ft
RW31RYMERPU (315°)MERPU 6500ft
PEGUM (10mi, 343°)
AA761 (12mi, 306°) 3000ft
IVEGU (4mi, 305°) 1900ft
RW31RYORMED (84°)ORMED
AA743 (11mi, 134°)
AA742 (5mi, 94°)
AA741 (3mi, 29°) 3000ft
IVEGU (4mi, 333°) 1900ft
RW31RYTUGVA (239°)TUGVA 10000ft
AA732 (9mi, 188°) 4000ft
AA731 (5mi, 225°) 3000ft
IVEGU (4mi, 282°) 1900ft
 RNAVIVEGU 1900ft
RUDON (2mi, 305°) 1300ft
OMAA (5mi, 292°) 122ft
AA416 (2mi, 332°)
AA751 (2mi, 323°)
TADBU (8mi, 341°)
LUBUS (10mi, 313°) 4000ft
LUBUS (turn) 6000ft
RW31RZITREN (305°)ITREN 5000ft
SETRU (8mi, 313°) 3000ft
RW31RZPEGUM (303°)PEGUM 4000ft
AA420 (4mi, 306°) 3000ft
SETRU (4mi, 306°) 3000ft
 RNAVSETRU 3000ft
GIPNA (7mi, 305°) 2000ft
OMAA (7mi, 297°) 128ft
AA416 (2mi, 332°)
TADBU (10mi, 338°)
LUBUS (10mi, 313°) 4000ft
LUBUS (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ATUD2AOVOLAVHFright126 (306)°4000ft - 13000ft1.0min timed230
ATUD2CLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
ATUD4DLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
ELOV2DLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
ELOV3AOVOLAVHFright126 (306)°4000ft - 13000ft1.0min timed230
ELOV3CLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
EMER2AOVOLAVHFright126 (306)°4000ft - 13000ft1.0min timed230
EMER2DLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
EMER3CLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
GIDO1DLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
GIDO1DORGADVHFleft295 (115)°6000ft - 13000ft1.0min timed230
GIDO2CLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
GIDO2CORGADVHFleft295 (115)°6000ft - 13000ft1.0min timed230
GIDO2MORGADVHFleft295 (115)°6000ft - 13000ft1.0min timed230
GIDO2MTAPTOVHFleft306 (126)°4000ft - 6000ft1.0min timed210
GIDO3AOVOLAVHFright126 (306)°4000ft - 13000ft1.0min timed230
GIDO3JORGADVHFleft295 (115)°6000ft - 13000ft1.0min timed230
GIDO3JTAPTOVHFleft306 (126)°4000ft - 6000ft1.0min timed210
NOBT3HOVOLAVHFright126 (306)°4000ft - 13000ft1.0min timed230
NOBT3HSITIBVHFright115 (295)°6000ft - 13000ft1.0min timedICAO rules
NOBT4JGEXODVHFleft107 (287)°6000ft - 13000ft1.0min timedICAO rules
NOBT4JLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
NOBT4JSITIBVHFright115 (295)°6000ft - 13000ft1.0min timedICAO rules
NOBT6BSITIBVHFright115 (295)°6000ft - 13000ft1.0min timedICAO rules
NOBT6DSITIBVHFright115 (295)°6000ft - 13000ft1.0min timedICAO rules
NOBT7APAXIKVHFleft126 (306)°4000ft - 13000ft1.0min timed230
NOBT7ASITIBVHFright115 (295)°6000ft - 13000ft1.0min timedICAO rules
NOBT7CSITIBVHFright115 (295)°6000ft - 13000ft1.0min timedICAO rules
ROVO3HPAXIKVHFleft126 (306)°4000ft - 13000ft1.0min timed230
ROVO4BGEXODVHFleft107 (287)°6000ft - 13000ft1.0min timedICAO rules
ROVO5AGEXODVHFleft107 (287)°6000ft - 13000ft1.0min timedICAO rules
ROVO5AOVOLAVHFright126 (306)°4000ft - 13000ft1.0min timed230
ROVO5DGEXODVHFleft107 (287)°6000ft - 13000ft1.0min timedICAO rules
ROVO5DLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
ROVO6CGEXODVHFleft107 (287)°6000ft - 13000ft1.0min timedICAO rules
ROVO6CLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
UKIL2APAXIKVHFleft126 (306)°4000ft - 13000ft1.0min timed230
UKIL2JLOXIXVHFleft306 (126)°4000ft - 6000ft1.0min timed210
UKIL2JORGADVHFleft295 (115)°6000ft - 13000ft1.0min timed230
UKIL3DTAPTOVHFleft306 (126)°4000ft - 6000ft1.0min timed210
UKIL4CTAPTOVHFleft306 (126)°4000ft - 6000ft1.0min timed210
*) magnetic outbound (inbound) holding course
