Airports for X-Plane

Muscat - Muscat Intl

Airport details

CountryOman
StateMuscat
RegionOO
AirspaceMuscat Ctr
Elevation23ft (7m)
TimezoneGMT +4
Coordinates23.59013, 58.27323
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOOMS
IATA codeMCT
FAA coden/a

Communication

Muscat Intl ATIS126.800
Muscat Intl DEL125.575
Muscat Intl Ground Control127.875
Muscat Intl Ground Control121.800
Muscat Intl Tower118.825
Muscat Intl Approach121.200
Muscat Intl Departure118.825

Approach frequencies

ILS-cat-IRW08L108.918.00mi
ILS-cat-IRW26R110.718.00mi
3° GSRW08L108.918.00mi
3° GSRW26R110.718.00mi
Nearby Points of Interest:
Muttrah Fort
-
Ad Dimaniyat Islands

Runway info

Runway 08L / 26R
 length4001m (13127ft)
 bearing85° / 265°
 width60m (197ft)
 surfaceasphalt
 displ threshold0m (0ft) / 165m (541ft)
 blast zone121m (397ft) / 116m (381ft)
Runway 08R / 26L
 length3580m (11745ft)
 bearing85° / 265°
 width45m (148ft)
 surfaceasphalt
 displ threshold418m (1371ft) / 0m (0ft)
 blast zone62m (203ft) / 61m (200ft)

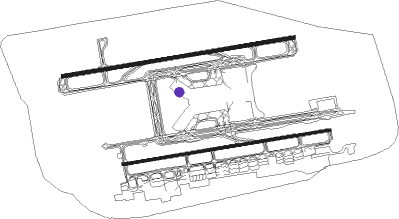

Airport layout - parking location 312


Taxiway locations

 A  A1  A2  AR1  AR2  AR3  AR4  B
 C  D  E  E1  E4  F  G  H
 K  KC  KD  KE  L  N  R  S
 T  U  UC  UD  UE  V  W  WA
 Y1  Y2  Y3  Y4  Y5  Y6  Y7  Y8
 Z1
Parking locations

 1  10  101  103  104  105  106  11
 12  14  15  151  152  16  2  201
 202  203  21  22  23  24  25  26
 27  29  3  30  301  302  303  304
 305  306  307  308  309  31  310  311
 312  313  4  401  402  403  404  405
 406  407  408  409  410  411  412  413
 414  415  416  5  501  502  503  504
 6  601  602  603  604  605  606  651
 652  7  8  9  901  902  903  B1
 B2  C1  C2  C3  C4  Police  Royal

Nearby beacons

codeidentifierdistbearingfrequency
MCTMUSCAT VOR/DME0.7274°114.50
IZKIZKI VOR/DME50.7216°113.50

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW08L
 VUSE1W, VUSE2S52mi69°
 SODE2S69mi81°
 MURM1N13mi81°
 SEVL2S, SEVL1W50mi92°
 MUSR1W, MUSR2S69mi116°
 EMUR1W, EMUR2S88mi155°
 IZK2S, IZK1W51mi216°
 TULB2S64mi239°
 IVET2S64mi270°
 DAPO2S49mi298°
 GERA2S48mi307°
RW26R
 VUSE2P52mi69°
 SODE2P69mi81°
 SEVL2P50mi92°
 MUSR2P, MUSR1X69mi116°
 EMUR2P, EMUR1X88mi155°
 IZK1X, IZK2P51mi216°
 TULB2P64mi239°
 ITLA1N13mi270°
 IVET1X, IVET2P64mi270°
 DAPO1X, DAPO2P49mi298°
 GERA2P48mi307°

STAR starting pointsdistanceinbound heading
RW08L
 RADA1V88.29°
 TULB1V63.959°
 LAKL1V, LAKL1T67.680°
 MUSU1T, MUSU1V50.698°
 GERA1V, GERA1T47.8127°
 VUSE1V, VUSE1T51.6249°
 ELIG1V, ELIG1T49.2281°
 TUME1V117.6306°
 EMUR1V88.4335°
RW26R
 RADA1U88.29°
 TULB1U63.959°
 LAKL1U, LAKL1R67.680°
 MUSU1U, MUSU1R50.698°
 GERA1U, GERA1R47.8127°
 VUSE1U, VUSE1R51.6249°
 ELIG1R, ELIG1U49.2281°
 TUME1U117.6306°
 EMUR1U88.4335°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08LBUB1V (68°)BUBIL
M20WL (6mi, 89°) 5400ft
ITLAK (8mi, 85°) 3400ft
RW08LKAN1V (68°)KANOL
M20WL (20mi, 154°) 5400ft
ITLAK (8mi, 85°) 3400ft
RW08LLAD1V (68°)LADBA 12000ft
MS500 (23mi, 253°) 12000ft
MS505 (14mi, 261°) 11000ft
MS510 (10mi, 261°) 10000ft
MS515 (5mi, 314°)
MS520 (5mi, 245°)
M20WL (5mi, 175°) 5400ft
ITLAK (8mi, 85°) 3400ft
RW08LMIG1V (68°)MIGMO 12000ft
MS500 (28mi, 299°) 12000ft
MS505 (14mi, 261°) 11000ft
MS510 (10mi, 261°) 10000ft
MS515 (5mi, 314°)
MS520 (5mi, 245°)
M20WL (5mi, 175°) 5400ft
ITLAK (8mi, 85°) 3400ft
RW08LNON1V (68°)NONKA 12000ft
MS500 (16mi, 334°) 12000ft
MS505 (14mi, 261°) 11000ft
MS510 (10mi, 261°) 10000ft
MS515 (5mi, 314°)
MS520 (5mi, 245°)
M20WL (5mi, 175°) 5400ft
ITLAK (8mi, 85°) 3400ft
 RNAVITLAK 3400ft
M07WL (6mi, 85°) 2200ft
OOMS (7mi, 93°) 75ft
MS700 (2mi, 63°)
MS705 (12mi, 68°)
MS710 (7mi, 353°)
MS715 (6mi, 275°)
MCT (15mi, 207°)
MCT (turn) 6000ft
RW26RBUB1U (68°)BUBIL 11000ft
MS600 (10mi, 73°)
MS605 (16mi, 81°) 11000ft
MS615 (7mi, 78°) 10000ft
MS620 (9mi, 85°) 7000ft
M15ER (5mi, 175°) 4500ft
MURMA (3mi, 266°) 3400ft
RW26RKAN1U (68°)KANOL 12000ft
MS610 (30mi, 106°) 12000ft
MS615 (7mi, 106°) 10000ft
MS620 (9mi, 85°) 7000ft
M15ER (5mi, 175°) 4500ft
MURMA (3mi, 266°) 3400ft
RW26RLAD1U (68°)LADBA
M15ER (20mi, 236°) 4500ft
MURMA (3mi, 266°) 3400ft
RW26RMIG1U (68°)MIGMO
M15ER (21mi, 297°) 4500ft
MURMA (3mi, 266°) 3400ft
RW26RNON1U (68°)NONKA
M15ER (10mi, 355°) 4500ft
MURMA (3mi, 266°) 3400ft
 RNAVMURMA 3400ft
M07ER (5mi, 265°) 2200ft
OOMS (8mi, 259°) 69ft
MS750 (3mi, 285°)
MS755 (13mi, 289°)
MS760 (7mi, 23°)
MS765 (8mi, 86°)
MCT (13mi, 162°)
MCT (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ELIG1RMIGMOVHFleft101 (281)°> 12000ft1.0min timed230
ELIG1TMCTNDBright84 (264)°> 6000ft1.0min timed210
ELIG1TMIGMOVHFleft101 (281)°> 12000ft1.0min timed230
ELIG1UMIGMOVHFleft101 (281)°> 12000ft1.0min timed230
ELIG1VMIGMOVHFleft101 (281)°> 12000ft1.0min timed230
EMUR1UNONKAVHFleft165 (345)°> 12000ft1.0min timed230
EMUR1VNONKAVHFleft165 (345)°> 12000ft1.0min timed230
GERA1RKANOLVHFright301 (121)°7000ft - 9000ft1.0min timed230
GERA1RMCTNDBright84 (264)°> 6000ft1.0min timed210
GERA1TKANOLVHFright301 (121)°7000ft - 9000ft1.0min timed230
GERA1UKANOLVHFright301 (121)°7000ft - 9000ft1.0min timed230
GERA1VKANOLVHFright301 (121)°7000ft - 9000ft1.0min timed230
LAKL1RBUBILVHFright267 (87)°8000ft - 9000ft1.0min timed230
LAKL1RMCTNDBright84 (264)°> 6000ft1.0min timed210
LAKL1TBUBILVHFright267 (87)°8000ft - 9000ft1.0min timed230
LAKL1UBUBILVHFright267 (87)°8000ft - 9000ft1.0min timed230
LAKL1VBUBILVHFright267 (87)°8000ft - 9000ft1.0min timed230
MUSU1RBUBILVHFright267 (87)°8000ft - 9000ft1.0min timed230
MUSU1RMCTNDBright84 (264)°> 6000ft1.0min timed210
MUSU1TBUBILVHFright267 (87)°8000ft - 9000ft1.0min timed230
MUSU1UBUBILVHFright267 (87)°8000ft - 9000ft1.0min timed230
MUSU1VBUBILVHFright267 (87)°8000ft - 9000ft1.0min timed230
RADA1UNONKAVHFleft165 (345)°> 12000ft1.0min timed230
RADA1VNONKAVHFleft165 (345)°> 12000ft1.0min timed230
TULB1UBUBILVHFright267 (87)°8000ft - 9000ft1.0min timed230
TULB1VBUBILVHFright267 (87)°8000ft - 9000ft1.0min timed230
TUME1UNONKAVHFleft165 (345)°> 12000ft1.0min timed230
TUME1VNONKAVHFleft165 (345)°> 12000ft1.0min timed230
VUSE1RLADBAVHFright66 (246)°> 12000ft1.0min timed230
VUSE1TLADBAVHFright66 (246)°> 12000ft1.0min timed230
VUSE1TMCTNDBright84 (264)°> 6000ft1.0min timed210
VUSE1ULADBAVHFright66 (246)°> 12000ft1.0min timed230
VUSE1VLADBAVHFright66 (246)°> 12000ft1.0min timed230
*) magnetic outbound (inbound) holding course
