Baghdad - Baghdad Intl

Airport details

Country	Iraq
State	Baghdad Governorate
Region	OR
Airspace	Baghdad Ctr
Municipality	Baghdad
Elevation	112ft (34m)
Timezone	GMT +3
Coordinates	33.27639, 44.23254
Magnetic var
Type	land
Available since	X-Plane v10.32
ICAO code	ORBI
IATA code	BGW
FAA code	n/a

Communication

Baghdad Intl ATIS	126.925
Baghdad Intl Ground Control	121.400
Baghdad Intl Tower	118.900
Baghdad Intl Approach	122.400
Baghdad Intl Departure	128.200

Approach frequencies

ILS-cat-I	RW33R	110.1	18.00mi
ILS-cat-I	RW15L	110.7	18.00mi
3° GS	RW33R	110.1	18.00mi
3° GS	RW15L	110.7	18.00mi

Runway info

Runway 15L / 33R
	length	4008m (13150ft)
	bearing	146° / 326°
	width	60m (197ft)
	surface	concrete
	blast zone	120m (394ft) / 122m (400ft)
Runway 15R / 33L
	length	3307m (10850ft)
	bearing	146° / 326°
	width	45m (148ft)
	surface	concrete
	blast zone	60m (197ft) / 60m (197ft)

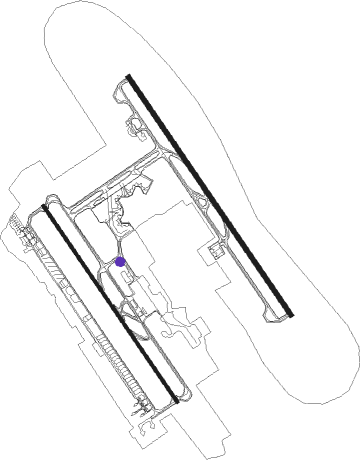

Airport layout - taxiway location A

Taxiway locations

A	K	M6	P	P2	P4	P6	Q
S	S1	S2	S3	S4	S5	S6	T
W	Y

Parking locations

B21	B22	B23	B24	B25	B26	C31	C32
C33	C34	C35	C36	D41	D42	D43	D44
D45	D46	K1	K2	K3	Mil	Parking	R21
R22	R23	R24	VIP

Nearby beacons

code	identifier	dist	bearing	frequency
BGD	BAGHDAD VOR/DME	1	335°	112.90

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW15R	BOVAB (142°)	BOVAB NORSU (5mi, 145°) 2700ft CR15R (3mi, 145°) 2700ft
RW15R	LONOR (307°)	LONOR TOKPI (48mi, 296°) KUPDU (24mi, 325°) NORSU (5mi, 64°) 2700ft CR15R (3mi, 145°) 2700ft
RW15R	PARAP (128°)	PARAP NORSU (5mi, 103°) 2700ft CR15R (3mi, 145°) 2700ft
	RNAV	CR15R 2700ft GIDOM (3mi, 145°) 1800ft ORBI (5mi, 135°) 164ft DATUK (13mi, 150°) 5000ft
RW33L	DATIX (343°)	DATIX DATUK (5mi, 18°) 2700ft CR33L (3mi, 326°) 2700ft
RW33L	LONOR (307°)	LONOR MEKBU (41mi, 298°) DATUK (5mi, 326°) 2700ft CR33L (3mi, 326°) 2700ft
RW33L	TOKPI (354°)	TOKPI DATUK (5mi, 64°) 2700ft CR33L (3mi, 326°) 2700ft
	RNAV	CR33L 2700ft DEBNI (3mi, 326°) 1800ft ORBI (7mi, 334°) 161ft NORSU (11mi, 320°) 5000ft
