Baghdad - Baghdad Intl

Airport details

Country	Iraq
State	Baghdad Governorate
Region	OR
Airspace	Baghdad Ctr
Municipality	Baghdad
Elevation	112ft (34m)
Timezone	GMT +3
Coordinates	33.27639, 44.23254
Magnetic var
Type	land
Available since	X-Plane v10.32
ICAO code	ORBI
IATA code	BGW
FAA code	n/a

Communication

Baghdad Intl ATIS	126.925
Baghdad Intl Ground Control	121.400
Baghdad Intl Tower	118.900
Baghdad Intl Approach	122.400
Baghdad Intl Departure	128.200

Approach frequencies

ILS-cat-I	RW33R	110.1	18.00mi
ILS-cat-I	RW15L	110.7	18.00mi
3° GS	RW33R	110.1	18.00mi
3° GS	RW15L	110.7	18.00mi

Runway info

Runway 15L / 33R
	length	4008m (13150ft)
	bearing	146° / 326°
	width	60m (197ft)
	surface	concrete
	blast zone	120m (394ft) / 122m (400ft)
Runway 15R / 33L
	length	3307m (10850ft)
	bearing	146° / 326°
	width	45m (148ft)
	surface	concrete
	blast zone	60m (197ft) / 60m (197ft)

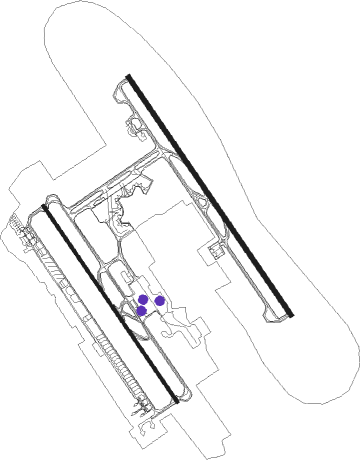

Airport layout - parking location Parking

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
BGD	BAGHDAD VOR/DME	1	335°	112.90

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW15R	BOVAB (142°)	BOVAB NORSU (5mi, 145°) 2700ft CR15R (3mi, 145°) 2700ft
RW15R	LONOR (307°)	LONOR TOKPI (48mi, 296°) KUPDU (24mi, 325°) NORSU (5mi, 64°) 2700ft CR15R (3mi, 145°) 2700ft
RW15R	PARAP (128°)	PARAP NORSU (5mi, 103°) 2700ft CR15R (3mi, 145°) 2700ft
	RNAV	CR15R 2700ft GIDOM (3mi, 145°) 1800ft ORBI (5mi, 135°) 164ft DATUK (13mi, 150°) 5000ft
RW33L	DATIX (343°)	DATIX DATUK (5mi, 18°) 2700ft CR33L (3mi, 326°) 2700ft
RW33L	LONOR (307°)	LONOR MEKBU (41mi, 298°) DATUK (5mi, 326°) 2700ft CR33L (3mi, 326°) 2700ft
RW33L	TOKPI (354°)	TOKPI DATUK (5mi, 64°) 2700ft CR33L (3mi, 326°) 2700ft
	RNAV	CR33L 2700ft DEBNI (3mi, 326°) 1800ft ORBI (7mi, 334°) 161ft NORSU (11mi, 320°) 5000ft
