Airports for X-Plane

Baghdad - Baghdad Intl

Airport details

CountryIraq
StateBaghdad Governorate
RegionOR
AirspaceBaghdad Ctr
MunicipalityBaghdad
Elevation112ft (34m)
TimezoneGMT +3
Coordinates33.27639, 44.23254
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeORBI
IATA codeBGW
FAA coden/a

Communication

Baghdad Intl ATIS126.925
Baghdad Intl Ground Control121.400
Baghdad Intl Tower118.900
Baghdad Intl Approach122.400
Baghdad Intl Departure128.200

Approach frequencies

ILS-cat-IRW33R110.118.00mi
ILS-cat-IRW15L110.718.00mi
3° GSRW33R110.118.00mi
3° GSRW15L110.718.00mi

Runway info

Runway 15L / 33R
 length4008m (13150ft)
 bearing146° / 326°
 width60m (197ft)
 surfaceconcrete
 blast zone120m (394ft) / 122m (400ft)
Runway 15R / 33L
 length3307m (10850ft)
 bearing146° / 326°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)

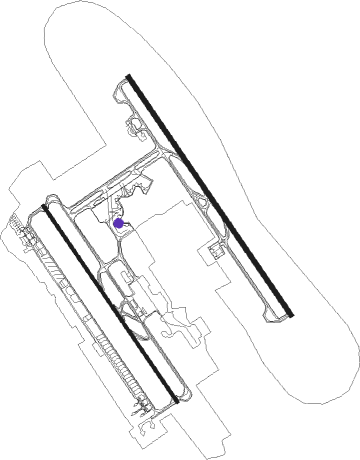

Airport layout - parking location D44


Taxiway locations

 A  K  M6  P  P2  P4  P6  Q
 S  S1  S2  S3  S4  S5  S6  T
 W  Y
Parking locations

 B21  B22  B23  B24  B25  B26  C31  C32
 C33  C34  C35  C36  D41  D42  D43  D44
 D45  D46  K1  K2  K3  Mil  Parking  R21
 R22  R23  R24  VIP

Nearby beacons

codeidentifierdistbearingfrequency
BGDBAGHDAD VOR/DME1335°112.90

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15RBOVAB (142°)BOVAB
NORSU (5mi, 145°) 2700ft
CR15R (3mi, 145°) 2700ft
RW15RLONOR (307°)LONOR
TOKPI (48mi, 296°)
KUPDU (24mi, 325°)
NORSU (5mi, 64°) 2700ft
CR15R (3mi, 145°) 2700ft
RW15RPARAP (128°)PARAP
NORSU (5mi, 103°) 2700ft
CR15R (3mi, 145°) 2700ft
 RNAVCR15R 2700ft
GIDOM (3mi, 145°) 1800ft
ORBI (5mi, 135°) 164ft
DATUK (13mi, 150°) 5000ft
RW33LDATIX (343°)DATIX
DATUK (5mi, 18°) 2700ft
CR33L (3mi, 326°) 2700ft
RW33LLONOR (307°)LONOR
MEKBU (41mi, 298°)
DATUK (5mi, 326°) 2700ft
CR33L (3mi, 326°) 2700ft
RW33LTOKPI (354°)TOKPI
DATUK (5mi, 64°) 2700ft
CR33L (3mi, 326°) 2700ft
 RNAVCR33L 2700ft
DEBNI (3mi, 326°) 1800ft
ORBI (7mi, 334°) 161ft
NORSU (11mi, 320°) 5000ft
