Airports for X-Plane

São Paulo - Sao Paulo Congonhas

Airport details

CountryBrazil
StateSão Paulo
RegionSB
AirspaceCuritiba Ctr
Elevation2626ft (800m)
TimezoneGMT -3
Coordinates-23.62611, -46.65639
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBSP
IATA codeCGH
FAA coden/a

Communication

Sao Paulo Congonhas ATIS127.650
Sao Paulo Congonhas Clearance DEL120.600
Sao Paulo Congonhas Ground Control121.900
Sao Paulo Congonhas SAO PAULO Tower127.150
Sao Paulo Congonhas SAO PAULO Tower+ Departure118.050

Approach frequencies

ILS-cat-IRW35L109.718.00mi
ILS-cat-IRW17R109.318.00mi
3° GSRW35L109.718.00mi
2.9° GSRW17R109.318.00mi
Nearby Points of Interest:
Congonhas-São Paulo Airport
-
Residência Vilanova Artigas II
-
Casa do Sítio da Ressaca
-
Jardim Lusitânia
-
A pega do porco
-
Centro de Memória do Corpo de Bombeiros
-
Casa Modernista
-
Pavilhão Padre Manual da Nóbrega
-
Instituto Biológico
-
Ayrton Senna Monument
-
Capela do Cristo Operário
-
Monumento aos Fundadores de São Paulo
-
Conjunto Jardim Ana Rosa
-
Residência Castor Delgado Perez
-
Mercado Municipal de Santo Amaro
-
Sociedade Harmonia de Tênis
-
Casa da Fazenda do Morumbi
-
Conjunto Nacional
-
Residence of Maestro Furio Franceschini
-
Jardins
-
Jockey Club de São Paulo
-
Chácara Tangará
-
Condomínio Edifício Paulicéia e São Carlos do Pinhal
-
Casa Daphnis de Freitas Valle
-
Bela Vista

Runway info

Runway 17R / 35L
 length1943m (6375ft)
 bearing145° / 325°
 width45m (148ft)
 surfaceasphalt
 displ threshold130m (427ft) / 55m (180ft)
Runway 17L / 35R
 length1505m (4938ft)
 bearing145° / 325°
 width45m (148ft)
 surfaceasphalt
 displ threshold65m (213ft) / 0m (0ft)
 blast zone0m (0ft) / 3m (10ft)

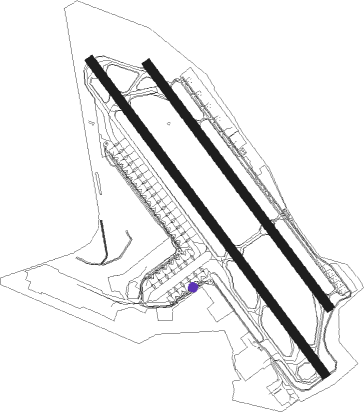

Airport layout - parking location 27


Taxiway locations

 A  APRON3  B  C  D  E  H  H|MAIN|APR
 I  J  K  L  MAIN|APRON  O  T
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  2  20  21  22  23
 24  25  26  27  28  29  3  4
 5  6  7  8  9  Cargo  Gate  Hangar
 LATAM  North  RAMP  TAM

Nearby beacons

codeidentifierdistbearingfrequency
CGOCONGONHAS (SAO PAULO) VOR/DME0.1128°116.90
DADDIADEMA (SAO PAULO) NDB5.6145°200
IGTUCA (SAO PAULO) NDB10.827°410
EMBEMBUGUACU (SAO PAULO) NDB16215°525
STNSANTANA (SAO PAULO TMA) VOR/DME16.8297°114.30
RDEREDE (SAO PAULO) VOR/DME17.3154°116.70
BCOBONSUCESSO (SAO PAULO) VOR/DME19.951°116
SCBSOROCABA (SAO PAULO TMA) VOR/DME40.3279°115.20
BGCBRAGANCA (BRAGANCA PAULIS VOR/DME40.77°116.20
CPNCAMPINAS VOR/DME45.3323°112
SCPSAO JOSE (SAO JOSE DOS CA VOR/DME49.864°115.40
IKBENTO (CAMPINAS) NDB50.2321°370

Departure and arrival routes

Transition altitude8000ft
SID end pointsdistanceoutbound heading
RW17 (ALL)
 BAIA1A58mi43°
 OMNI25mi57°
 UTKO1A47mi218°
 LESA1A, UGTI1A80mi289°
RW35 (ALL)
 BAIA1B58mi43°
 OMNI25mi57°
 SEDL1A47mi218°
 LESA1B, UGTI1B80mi289°

STAR starting pointsdistanceinbound heading
RW17 (ALL)
 DOSP1A50.6143°
 OGTA1A13.9352°
RW35 (ALL)
 DOSP1B50.6143°
 IBDA1A78.7275°
 ANIS1A58.6358°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17LTKOMGU (110°)KOMGU 5500ft
SP048 (6mi, 61°) 4700ft
RW17LTLUVDI (132°)LUVDI 5500ft
SP048 (4mi, 105°) 4700ft
 RNAVSP048 4700ft
SP049 (3mi, 145°) 4040ft
SP052 (2mi, 145°) 3404ft
SBSP (3mi, 147°) 2640ft
(3065mi, 63°) 4000ft
KOMGU (3073mi, 243°) 5500ft
KOMGU (turn) 5500ft
RW17RXSP003 (70°)SP003 7000ft
SP131 (2mi, 325°) 6000ft
 RNAVSP131 6000ft
SP132 (6mi, 41°) 4240ft
SP078 (2mi, 126°) 3595ft
SBSP (3mi, 145°) 2640ft
SP137 (10mi, 145°) 5000ft
RDE (8mi, 165°)
RDE (turn) 7000ft
RW17RYKOMGU (110°)KOMGU 5500ft
GERSU (6mi, 60°) 4700ft
RW17RYLUVDI (132°)LUVDI 5500ft
GERSU (4mi, 105°) 4700ft
 RNAVGERSU 4700ft
URUTA (3mi, 145°) 4070ft
SP139 (1mi, 145°) 3593ft
SP017 (turn) 3307ft
SBSP (2mi, 145°) 2640ft
(3065mi, 63°) 3400ft
KOMGU (3073mi, 243°) 5500ft
KOMGU (turn) 5500ft
RW35LXSP121 (47°)SP121 7000ft
SP124 (2mi, 145°) 6000ft
 RNAVSP124 6000ft
SP128 (6mi, 78°) 4280ft
SP129 (2mi, 345°) 3635ft
SBSP (4mi, 326°) 2680ft
RENIT (5mi, 325°)
SP122 (6mi, 297°)
SP123 (5mi, 212°)
SP121 (10mi, 136°) 7000ft
SP121 (turn) 7000ft
RW35LZNAXUP (318°)NAXUP 6000ft
USITO (6mi, 304°) 5300ft
RW35LZOGTAL (352°)OGTAL 6000ft
USITO (6mi, 54°) 5300ft
 RNAVUSITO 5300ft
SURBU (6mi, 325°) 4290ft
SBSP (6mi, 326°) 2680ft
(3065mi, 63°) 3500ft
OGTAL (3068mi, 243°) 6000ft
OGTAL (turn) 6000ft
RW35RSNAXUP (318°)NAXUP 6000ft
SP044 (6mi, 306°) 5300ft
RW35RSOGTAL (352°)OGTAL 6000ft
SP044 (6mi, 51°) 5300ft
 RNAVSP044 5300ft
SP046 (6mi, 325°) 4280ft
SP047 (2mi, 325°) 3507ft
SBSP (3mi, 323°) 2679ft
(3065mi, 63°) 3500ft
OGTAL (3068mi, 243°) 6000ft
OGTAL (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANIS1AANISEVHFright201 (21)°1.0min timedICAO rules
ANIS1ASP111VHFright201 (21)°1.0min timedICAO rules
DOSP1AENTITVHFright65 (245)°1.0min timedICAO rules
DOSP1AIROPUVHFright10 (190)°1.0min timedICAO rules
DOSP1ASP094VHFleft65 (245)°1.0min timedICAO rules
DOSP1ASP096VHFright10 (190)°1.0min timedICAO rules
DOSP1ASP109VHFright326 (146)°1.0min timedICAO rules
DOSP1AUTLOTVHFright326 (146)°1.0min timedICAO rules
DOSP1BENTITVHFright65 (245)°1.0min timedICAO rules
DOSP1BIROPUVHFright10 (190)°1.0min timedICAO rules
DOSP1BSP094VHFleft65 (245)°1.0min timedICAO rules
DOSP1BSP096VHFright10 (190)°1.0min timedICAO rules
DOSP1BSP109VHFright326 (146)°1.0min timedICAO rules
DOSP1BUTLOTVHFright326 (146)°1.0min timedICAO rules
IBDA1AIBDALVHFleft99 (279)°1.0min timedICAO rules
IBDA1AUKDANVHFleft99 (279)°1.0min timedICAO rules
OGTA1AANISEVHFright201 (21)°1.0min timedICAO rules
OGTA1AIBDALVHFleft99 (279)°1.0min timedICAO rules
OGTA1ASP111VHFright201 (21)°1.0min timedICAO rules
OGTA1AUKDANVHFleft99 (279)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
