Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

drome road newark air traffic control city military tarmac heliport aircraft downtown airdock airplane nearby airspeed aircraft carrier flown airport terminal aviation gravel customs

Airports for X-Plane

São Paulo - Sao Paulo Congonhas

Airport details

CountryBrazil
StateSão Paulo
RegionSB
AirspaceCuritiba Ctr
Elevation2626ft (800m)
TimezoneGMT -3
Coordinates-23.62611, -46.65639
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeSBSP
IATA codeCGH
FAA coden/a

Communication

Sao Paulo Congonhas ATIS127.650
Sao Paulo Congonhas Clearance DEL120.600
Sao Paulo Congonhas Ground Control121.900
Sao Paulo Congonhas SAO PAULO Tower127.150
Sao Paulo Congonhas SAO PAULO Tower+ Departure118.050

Approach frequencies

ILS-cat-IRW35L109.718.00mi
ILS-cat-IRW17R109.318.00mi
3° GSRW35L109.718.00mi
2.9° GSRW17R109.318.00mi
Nearby Points of Interest:
Congonhas-São Paulo Airport
-
Residência Vilanova Artigas II
-
Casa do Sítio da Ressaca
-
Jardim Lusitânia
-
A pega do porco
-
Centro de Memória do Corpo de Bombeiros
-
Casa Modernista
-
Pavilhão Padre Manual da Nóbrega
-
Instituto Biológico
-
Ayrton Senna Monument
-
Capela do Cristo Operário
-
Monumento aos Fundadores de São Paulo
-
Conjunto Jardim Ana Rosa
-
Residência Castor Delgado Perez
-
Mercado Municipal de Santo Amaro
-
Sociedade Harmonia de Tênis
-
Casa da Fazenda do Morumbi
-
Conjunto Nacional
-
Residence of Maestro Furio Franceschini
-
Jardins
-
Jockey Club de São Paulo
-
Chácara Tangará
-
Condomínio Edifício Paulicéia e São Carlos do Pinhal
-
Casa Daphnis de Freitas Valle
-
Bela Vista

Runway info

Runway 17R / 35L
 length1943m (6375ft)
 bearing145° / 325°
 width45m (148ft)
 surfaceasphalt
 displ threshold130m (427ft) / 55m (180ft)
Runway 17L / 35R
 length1505m (4938ft)
 bearing145° / 325°
 width45m (148ft)
 surfaceasphalt
 displ threshold65m (213ft) / 0m (0ft)
 blast zone0m (0ft) / 3m (10ft)

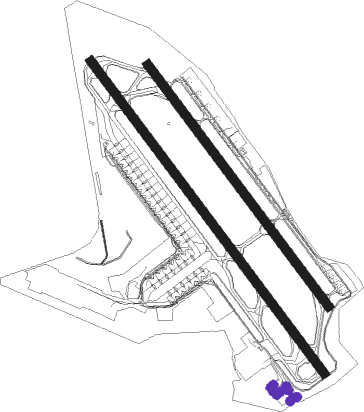

Airport layout - parking location TAM


Taxiway locations

 A  APRON3  B  C  D  E  H  H|MAIN|APR
 I  J  K  L  MAIN|APRON  O  T
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  2  20  21  22  23
 24  25  26  27  28  29  3  4
 5  6  7  8  9  Cargo  Gate  Hangar
 LATAM  North  RAMP  TAM

Nearby beacons

codeidentifierdistbearingfrequency
CGOCONGONHAS (SAO PAULO) VOR/DME0.1128°116.90
DADDIADEMA (SAO PAULO) NDB5.6145°200
IGTUCA (SAO PAULO) NDB10.827°410
EMBEMBUGUACU (SAO PAULO) NDB16215°525
STNSANTANA (SAO PAULO TMA) VOR/DME16.8297°114.30
RDEREDE (SAO PAULO) VOR/DME17.3154°116.70
BCOBONSUCESSO (SAO PAULO) VOR/DME19.951°116
SCBSOROCABA (SAO PAULO TMA) VOR/DME40.3279°115.20
BGCBRAGANCA (BRAGANCA PAULIS VOR/DME40.77°116.20
CPNCAMPINAS VOR/DME45.3323°112
SCPSAO JOSE (SAO JOSE DOS CA VOR/DME49.864°115.40
IKBENTO (CAMPINAS) NDB50.2321°370

Departure and arrival routes

Transition altitude8000ft
SID end pointsdistanceoutbound heading
RW17 (ALL)
 BAIA1A58mi43°
 OMNI25mi57°
 UTKO1A47mi218°
 LESA1A, UGTI1A80mi289°
RW35 (ALL)
 BAIA1B58mi43°
 OMNI25mi57°
 SEDL1A47mi218°
 LESA1B, UGTI1B80mi289°

STAR starting pointsdistanceinbound heading
RW17 (ALL)
 DOSP1A50.6143°
 OGTA1A13.9352°
RW35 (ALL)
 DOSP1B50.6143°
 IBDA1A78.7275°
 ANIS1A58.6358°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17LTKOMGU (110°)KOMGU 5500ft
SP048 (6mi, 61°) 4700ft
RW17LTLUVDI (132°)LUVDI 5500ft
SP048 (4mi, 105°) 4700ft
 RNAVSP048 4700ft
SP049 (3mi, 145°) 4040ft
SP052 (2mi, 145°) 3404ft
SBSP (3mi, 147°) 2640ft
(3065mi, 63°) 4000ft
KOMGU (3073mi, 243°) 5500ft
KOMGU (turn) 5500ft
RW17RXSP003 (70°)SP003 7000ft
SP131 (2mi, 325°) 6000ft
 RNAVSP131 6000ft
SP132 (6mi, 41°) 4240ft
SP078 (2mi, 126°) 3595ft
SBSP (3mi, 145°) 2640ft
SP137 (10mi, 145°) 5000ft
RDE (8mi, 165°)
RDE (turn) 7000ft
RW17RYKOMGU (110°)KOMGU 5500ft
GERSU (6mi, 60°) 4700ft
RW17RYLUVDI (132°)LUVDI 5500ft
GERSU (4mi, 105°) 4700ft
 RNAVGERSU 4700ft
URUTA (3mi, 145°) 4070ft
SP139 (1mi, 145°) 3593ft
SP017 (turn) 3307ft
SBSP (2mi, 145°) 2640ft
(3065mi, 63°) 3400ft
KOMGU (3073mi, 243°) 5500ft
KOMGU (turn) 5500ft
RW35LXSP121 (47°)SP121 7000ft
SP124 (2mi, 145°) 6000ft
 RNAVSP124 6000ft
SP128 (6mi, 78°) 4280ft
SP129 (2mi, 345°) 3635ft
SBSP (4mi, 326°) 2680ft
RENIT (5mi, 325°)
SP122 (6mi, 297°)
SP123 (5mi, 212°)
SP121 (10mi, 136°) 7000ft
SP121 (turn) 7000ft
RW35LZNAXUP (318°)NAXUP 6000ft
USITO (6mi, 304°) 5300ft
RW35LZOGTAL (352°)OGTAL 6000ft
USITO (6mi, 54°) 5300ft
 RNAVUSITO 5300ft
SURBU (6mi, 325°) 4290ft
SBSP (6mi, 326°) 2680ft
(3065mi, 63°) 3500ft
OGTAL (3068mi, 243°) 6000ft
OGTAL (turn) 6000ft
RW35RSNAXUP (318°)NAXUP 6000ft
SP044 (6mi, 306°) 5300ft
RW35RSOGTAL (352°)OGTAL 6000ft
SP044 (6mi, 51°) 5300ft
 RNAVSP044 5300ft
SP046 (6mi, 325°) 4280ft
SP047 (2mi, 325°) 3507ft
SBSP (3mi, 323°) 2679ft
(3065mi, 63°) 3500ft
OGTAL (3068mi, 243°) 6000ft
OGTAL (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANIS1AANISEVHFright201 (21)°1.0min timedICAO rules
ANIS1ASP111VHFright201 (21)°1.0min timedICAO rules
DOSP1AENTITVHFright65 (245)°1.0min timedICAO rules
DOSP1AIROPUVHFright10 (190)°1.0min timedICAO rules
DOSP1ASP094VHFleft65 (245)°1.0min timedICAO rules
DOSP1ASP096VHFright10 (190)°1.0min timedICAO rules
DOSP1ASP109VHFright326 (146)°1.0min timedICAO rules
DOSP1AUTLOTVHFright326 (146)°1.0min timedICAO rules
DOSP1BENTITVHFright65 (245)°1.0min timedICAO rules
DOSP1BIROPUVHFright10 (190)°1.0min timedICAO rules
DOSP1BSP094VHFleft65 (245)°1.0min timedICAO rules
DOSP1BSP096VHFright10 (190)°1.0min timedICAO rules
DOSP1BSP109VHFright326 (146)°1.0min timedICAO rules
DOSP1BUTLOTVHFright326 (146)°1.0min timedICAO rules
IBDA1AIBDALVHFleft99 (279)°1.0min timedICAO rules
IBDA1AUKDANVHFleft99 (279)°1.0min timedICAO rules
OGTA1AANISEVHFright201 (21)°1.0min timedICAO rules
OGTA1AIBDALVHFleft99 (279)°1.0min timedICAO rules
OGTA1ASP111VHFright201 (21)°1.0min timedICAO rules
OGTA1AUKDANVHFleft99 (279)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
