Airports for X-Plane

Baku - Heydar Aliyev Intl

Airport details

CountryAzerbaijan
StateBaku
RegionUB
AirspaceBaku Ctr
MunicipalityBaku City
Elevation8ft (2m)
TimezoneGMT +4
Coordinates40.46972, 50.05139
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeUBBB
IATA codeGYD
FAA coden/a

Communication

Heydar Aliyev Intl BAKU ATIS126.800
Heydar Aliyev Intl BAKU DLV135.700
Heydar Aliyev Intl BAKU DLV127.900
Heydar Aliyev Intl BAKU Ground Control121.700
Heydar Aliyev Intl BAKU Ground Control135.100
Heydar Aliyev Intl BAKU Tower119.200
Heydar Aliyev Intl BAKU Tower118.100
Heydar Aliyev Intl BAKU Approach129.300
Heydar Aliyev Intl BAKU Approach120.800

Approach frequencies

ILS-cat-IIIRW35109.318.00mi
ILS-cat-IIIRW16109.518.00mi
ILS-cat-IIIRW34111.718.00mi
ILS-cat-IIIRW17110.518.00mi
3° GSRW35109.318.00mi
3° GSRW16109.518.00mi
3° GSRW34111.718.00mi
3° GSRW17110.518.00mi
Nearby Points of Interest:
Molla Ahmad Mosque
-
Baku
-
Madrasa mosque (Ichery Sheher)
-
Divankhana
-
House of Sadykhov brothers
-
Binegadi 4th Period Fauna and Flora Deposit

Runway info

Runway 16 / 34
 length4009m (13153ft)
 bearing163° / 343°
 width60m (197ft)
 surfaceasphalt
 blast zone84m (276ft) / 87m (285ft)
Runway 17 / 35
 length3205m (10515ft)
 bearing179° / 359°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 135m (443ft)
 blast zone79m (259ft) / 66m (217ft)

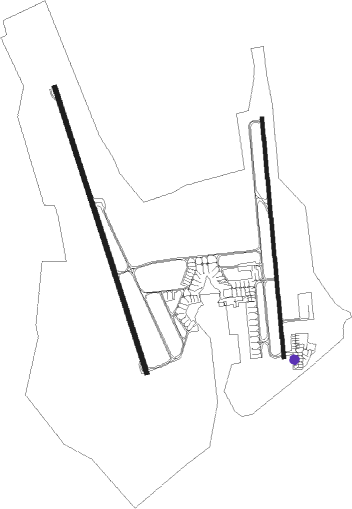

Airport layout - parking location D2


Taxiway locations

 A  B  B1  C  D  E  J  L
 M  P  R  S  T
Parking locations

 A1  A10  A11A  A12  A13  A14  A15  A16
 A17  A18  A19  A2  A20  A3  A4  A5
 A6  A7  A8  A9  B10  B11  B1A  B2
 B3  B4  B5  B6  B7  B8  B9  C1
 C2  C3  C4  C5  C6  C7  C8  C9
 D1  D10  D14  D15  D16  D17  D18  D19
 D2  D20  D21  D22  D23  D24  D25  D3
 D4  D5  D6  D7  D8  D9  F1  F2
 F3  F4  F5  F6  F7  F8  F9

Nearby beacons

codeidentifierdistbearingfrequency
BAKBAKU VOR/DME2.9166°115

Departure and arrival routes

Transition altitude9000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW16
 BETE2A40mi42°
 NAMA1A40mi97°
 BAMA1A40mi173°
 GILA2A40mi250°
 AGDA2A40mi256°
 RASA1A, RASA2A40mi279°
 EKRA1A40mi357°
RW17
 BETE1C40mi42°
 NAMA1C40mi97°
 BAMA1C40mi173°
 GILA1C40mi250°
 AGDA1C40mi256°
 RASA1C, RASA2C40mi279°
 EKRA1C40mi357°
RW34
 BETE1B40mi42°
 NAMA1B40mi97°
 BAMA1B40mi173°
 GILA2B, GILA3B40mi250°
 AGDA3B, AGDA2B40mi256°
 RASA2B40mi279°
 EKRA2B40mi357°
RW35
 BETE1D40mi42°
 NAMA1D40mi97°
 BAMA1D40mi173°
 GILA2D, GILA1D40mi250°
 AGDA2D, AGDA1D40mi256°
 RASA1D40mi279°
 EKRA1D40mi357°

STAR starting pointsdistanceinbound heading
RW16
 KUPA1E39.98°
 INSA2E39.764°
 ERLE2E40.0108°
 NOBV2E40.2157°
 ROPK1E40.1195°
 AMOK2E39.8267°
 ABRO1E39.8288°
 MOSU2E39.8338°
RW17
 KUPA1G39.98°
 INSA1G39.764°
 ERLE1G40.0108°
 NOBV1G40.2157°
 ROPK1G40.1195°
 AMOK1G39.8267°
 ABRO1G39.8288°
 MOSU1G39.8338°
RW34
 KUPA2F39.98°
 INSA2F39.764°
 ERLE1F40.0108°
 NOBV2F40.2157°
 ROPK2F40.1195°
 AMOK1F39.8267°
 ABRO2F39.8288°
 MOSU1F39.8338°
RW35
 KUPA1H39.98°
 INSA1H39.764°
 ERLE1H40.0108°
 NOBV1H40.2157°
 ROPK1H40.1195°
 AMOK1H39.8267°
 ABRO1H39.8288°
 MOSU1H39.8338°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABRO1HBB613VHFleft91 (271)°> 5000ft1.0min timedICAO rules
ABRO2FBB613VHFleft91 (271)°> 5000ft1.0min timedICAO rules
AMOK1FAMOKUVHFright101 (281)°1.0min timedICAO rules
AMOK1FBB613VHFleft91 (271)°> 5000ft1.0min timedICAO rules
AMOK1GAMOKUVHFright101 (281)°1.0min timedICAO rules
AMOK1HAMOKUVHFright101 (281)°1.0min timedICAO rules
AMOK1HBB613VHFleft91 (271)°> 5000ft1.0min timedICAO rules
AMOK2EAMOKUVHFright101 (281)°1.0min timedICAO rules
KUPA1EKUPATVHFleft173 (353)°1.0min timedICAO rules
KUPA1GKUPATVHFleft173 (353)°1.0min timedICAO rules
KUPA1HKUPATVHFleft173 (353)°1.0min timedICAO rules
KUPA2FKUPATVHFleft173 (353)°1.0min timedICAO rules
MOSU1FMOSUMVHFright155 (335)°1.0min timedICAO rules
MOSU1GBB104VHFright174 (354)°> 11000ft1.0min timedICAO rules
MOSU1GMOSUMVHFright155 (335)°1.0min timedICAO rules
MOSU1HMOSUMVHFright155 (335)°1.0min timedICAO rules
MOSU2EBB104VHFright174 (354)°> 11000ft1.0min timedICAO rules
MOSU2EMOSUMVHFright155 (335)°1.0min timedICAO rules
NOBV1GNOBVAVHFright353 (173)°1.0min timedICAO rules
NOBV1HNOBVAVHFright353 (173)°1.0min timedICAO rules
NOBV2ENOBVAVHFright353 (173)°1.0min timedICAO rules
NOBV2FNOBVAVHFright353 (173)°1.0min timedICAO rules
ROPK1EROPKAVHFleft32 (212)°1.0min timedICAO rules
ROPK1GROPKAVHFleft32 (212)°1.0min timedICAO rules
ROPK1HBB615VHFleft355 (175)°> 11000ft1.0min timedICAO rules
ROPK1HROPKAVHFleft32 (212)°1.0min timedICAO rules
ROPK2FBB615VHFleft355 (175)°> 11000ft1.0min timedICAO rules
ROPK2FROPKAVHFleft32 (212)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
