Airports for X-Plane

Dhaka - Hazrat Shahjalal International Airport

Airport details

CountryBangladesh
StateDhaka Division
RegionVG
AirspaceDhaka Ctr
MunicipalityDhaka
Elevation26ft (8m)
TimezoneGMT +6
Coordinates23.84094, 90.41090
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVGHS
IATA codeDAC
FAA coden/a

Communication

Hazrat Shahjalal International Airport DHAKA ATIS127.400
Hazrat Shahjalal International Airport DHAKA Ground Control121.800
Hazrat Shahjalal International Airport DHAKA Tower118.300
Hazrat Shahjalal International Airport DHAKA Approach121.300

Approach frequencies

ILS-cat-IRW32108.518.00mi
ILS-cat-IRW14109.518.00mi
3° GSRW32108.518.00mi
3° GSRW14109.518.00mi

Runway info

Runway 14 / 32
 length3196m (10486ft)
 bearing142° / 322°
 width46m (150ft)
 surfaceasphalt
 blast zone255m (837ft) / 241m (791ft)

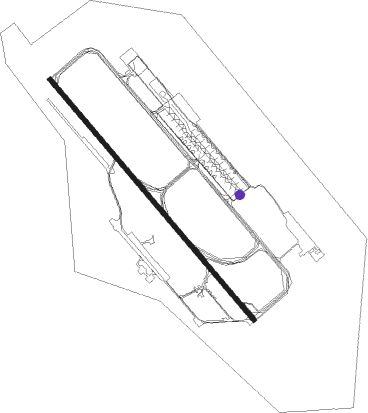

Airport layout - taxiway location RWY


Taxiway locations

 Q  RWY
Parking locations

 BAF  Biman  Cargo  Gate  Maint  New  Parking

Nearby beacons

codeidentifierdistbearingfrequency
DCNDHAKA NDB0.374°298
DACDHAKA VOR/DME1173°112.70
DCTEJGAON NDB3.6203°252
DAHAZRAT SHAHJALAL INTL (DHAKA) NDB7.1318°375
AATAGARTALA VOR/DME45.587°116.10
ATAGARTALA NDB45.887°237
CMLCUMILLA VOR/DME49.3118°115.50

Departure and arrival routes

Transition altitude4000ft
Transition level6000ft
SID end pointsdistanceoutbound heading
RW14
 NIKL1A, NIKLI134mi53°
 ADMIL151mi139°
 NUPU1A, NUPUR151mi148°
 KAKB1A51mi187°
 IKOG1A50mi239°
 IBAN1A50mi243°
 BATE1A48mi288°
 TEGA1A38mi301°
RW32
 NIKLI234mi53°
 ADMIL251mi139°
 NUPUR251mi148°
 KAKBO251mi187°
 IKOGU250mi239°
 IBANU250mi243°
 BATEL248mi288°
 TEGAK238mi301°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14BONSI (111°)BONSI 3000ft
FIRSI (6mi, 56°) 1800ft
RW14HORIN (140°)HORIN 3000ft
FIRSI (6mi, 142°) 1800ft
RW14RAJEN (171°)RAJEN 3000ft
FIRSI (6mi, 236°) 1800ft
 RNAVFIRSI 1800ft
TURAG (4mi, 141°) 1800ft
VGHS (7mi, 137°) 77ft
(5428mi, 255°) 2000ft
KAWLA (5435mi, 75°) 2000ft
KAWLA (turn) 2000ft
RW32BUXIL (292°)BUXIL 4000ft
PIKUL (6mi, 236°) 1800ft
RW32PADMA (358°)PADMA 3000ft
PIKUL (6mi, 56°) 1800ft
RW32TUMPA (323°)TUMPA 3000ft
PIKUL (6mi, 322°) 1800ft
 RNAVPIKUL 1800ft
MEGHA (4mi, 322°) 1800ft
VGHS (6mi, 327°) 77ft
(5428mi, 255°) 3000ft
KAWLA (5435mi, 75°) 3000ft
KAWLA (turn) 3000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
