Airports for X-Plane

Sydney - Sydney Kingsford Smith Intl

Airport details

CountryAustralia
StateNew South Wales
RegionYM
AirspaceMelbourne Ctr
MunicipalitySydney
Elevation20ft (6m)
TimezoneGMT +10
Coordinates-33.93967, 151.19167
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYSSY
IATA codeSYD
FAA coden/a

Communication

Sydney Kingsford Smith Intl ATIS126.250
Sydney Kingsford Smith Intl CLD133.800
Sydney Kingsford Smith Intl Ground Control (E of RWY 16R/34L)121.700
Sydney Kingsford Smith Intl Ground Control (W of RWY 16R/34L)126.500
Sydney Kingsford Smith Intl Tower (RWYs 16R/34L & 07/25)120.500
Sydney Kingsford Smith Intl Tower (RWY 16L/34R)124.700
Sydney Kingsford Smith Intl DIR E125.300
Sydney Kingsford Smith Intl DIR W126.100
Sydney Kingsford Smith Intl Approach N/E124.400
Sydney Kingsford Smith Intl PRM E (Monitor)133.950
Sydney Kingsford Smith Intl Approach S/W128.300
Sydney Kingsford Smith Intl PRM W (Monitor)119.450
Sydney Kingsford Smith Intl Departure N/E123.000
Sydney Kingsford Smith Intl Departure S/W/NW129.700

Approach frequencies

ILS-cat-IIRW16L110.918.00mi
ILS-cat-IIRW34L110.118.00mi
ILS-cat-IIRW16R109.518.00mi
ILS-cat-IIRW34R109.318.00mi
ILS-cat-IRW07109.918.00mi
ILS-cat-IRW25109.718.00mi
3° GSRW07109.918.00mi
3° GSRW34R109.318.00mi
3° GSRW16R109.518.00mi
3° GSRW25109.718.00mi
3° GSRW34L110.118.00mi
3° GSRW16L110.918.00mi
Nearby Points of Interest:
Sydney Airport Air Traffic Control Tower
-
sir joseph banks hotel
-
Timber Slab Cottage, Tempe
-
Kyeemagh Market Gardens
-
Newtown railway station
-
Premier Street Sewer Vent and Cottages
-
Waterloo Town Hall
-
Marrickville Town Hall
-
Eveleigh Railway Workshops
-
Sandgate, Randwick
-
The Ritz Cinema
-
Eveleigh Chief Mechanical Engineer's office
-
Redfern Post Office
-
Ventnor
-
The Women's College building, Newtown
-
Nugal Hall
-
Avonmore Terrace
-
Highbury
-
Randwick Post Office
-
Royal Prince Alfred Hospital - Victoria & Albert Pavilions
-
St Jude's Church, Randwick
-
Fitzroy Terrace, Redfern
-
University Oval, Sydney
-
Petersham Reservoir
-
Centennial Parklands

Runway info

Runway 16R / 34L
 length3973m (13035ft)
 bearing165° / 345°
 width45m (148ft)
 surfaceasphalt
 displ threshold86m (282ft) / 0m (0ft)
 blast zone90m (295ft) / 189m (620ft)
Runway 07 / 25
 length2524m (8281ft)
 bearing77° / 257°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 100m (328ft)
 blast zone148m (486ft) / 60m (197ft)
Runway 16L / 34R
 length2445m (8022ft)
 bearing165° / 345°
 width45m (148ft)
 surfaceasphalt
 displ threshold231m (758ft) / 38m (125ft)
 blast zone90m (295ft) / 90m (295ft)

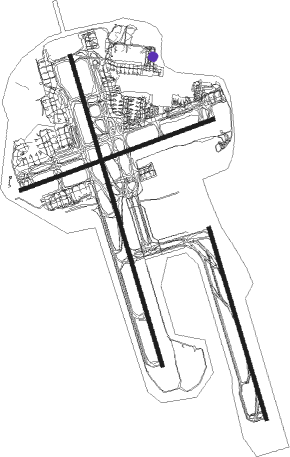

Airport layout - parking location 66


Taxiway locations

 A  A1  A3  A5  A6  B  B1  B10
 B2  B3  B4  B6  B8  C  D  E
 F  G  G1  G2  G4  H  HELI1  INTL1
 INTL4  INTL5  J  K  L  S  T  T2
 T3  T4  T5  T6  U  U1  Y
Parking locations

 1  10  104  105  107  11  12  120A
 120B  13  14  16  17B  18  19  2
 24  25  3  30  31  32  33  34
 35  36  37  38  39A  4  40  41
 43  44  45A  49  4A  5  50  51
 52  53  54  55  56  57  58  59
 6  60  61  63  64  65  66  67
 68  69  70  71  72  73  74  75
 76  77  8  83  84  85  9  90
 91  92  93  94  96B  96C  97A  97B
 98  99  AA  F10  F11  F12  F13  F15
 F16  F2  F3  F4  F5  F6  F8  F9
 GA  H10  H3  H4  H416  H5  H6  H7
 H8  H9  Stand  Stand1

Nearby beacons

codeidentifierdistbearingfrequency
SYDME0.5246°112.10
BKBANKSTOWN (SYDNEY) NDB10.1273°416
RICRICHMOND TACAN27.9310°110.70
RICRICHMOND NDB29.2310°347
WOLWOLLONGONG NDB42.1213°239

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW07
 FISHA842mi213°
RW16L
 KEVIN633mi55°
 ABBEY342mi213°
RW16R
 DEENA742mi213°
RW34L
 WOL242mi213°
 KADOM147mi284°
 RIC528mi310°
RW34R
 ENTRA533mi55°
 MARUB642mi213°

STAR starting pointsdistanceinbound heading
ALL
 ODALE734.777°
 MEPIL332.2182°
RW07
 RIVET320.566°
 BORE3A14.5166°
 MARLN529.5276°
RW16 (ALL)
 RIVET320.566°
 BORE3A14.5166°
 MARLN529.5276°
RW16R
 BORE3P42.8168°
RW25
 RIVET320.566°
 BORE3A14.5166°
 MARLN529.5276°
RW34 (ALL)
 RIVET320.566°
RW34L
 BORE3A14.5166°
 MARLN529.5276°
RW34R
 BORE3A14.5166°
 MARLN529.5276°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16LTONUX (164°)TONUX 4000ft
SSYNI (7mi, 165°) 2560ft
 RNAVSSYNI 2560ft
SSYNF (2mi, 165°) 1930ft
SSYNM (6mi, 166°) 66ft
(8205mi, 283°) 600ft
SSYNH (8205mi, 103°)
(8205mi, 283°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
MEPIL3MEPILVHFright350 (170)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
