Airports for X-Plane

Taiyuan - Taiyuan Wusu Intl'

Airport details

CountryChina
StateShanxi
RegionZB
AirspaceBeijing Ctr
MunicipalityXiaodian
Elevation2579ft (786m)
TimezoneGMT +8
Coordinates37.74833, 112.63000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZBYN
IATA codeTYN
FAA coden/a

Communication

Taiyuan Wusu Intl' ATIS126.450
Taiyuan Wusu Intl' Taiyuan Delivery121.925
Taiyuan Wusu Intl' Taiyuan Apron121.675
Taiyuan Wusu Intl' Taiyuan Ground121.800
Taiyuan Wusu Intl' Taiyuan Tower118.250
Taiyuan Wusu Intl' Taiyuan Approach 02119.550
Taiyuan Wusu Intl' Taiyuan Approach Standby125.550
Taiyuan Wusu Intl' Taiyuan Approach 01119.200

Approach frequencies

ILS-cat-IRW31109.318.00mi
ILS-cat-IRW13110.918.00mi
3° GSRW31109.318.00mi
3° GSRW13110.918.00mi
Nearby Points of Interest:
Taiyuan Ancient Mosque
-
Chang Jing Lou
-
Jinci Temple
-
Longshan Grotto
-
Tianlongshan Grottoes
-
Doudaifuci
-
Former Residence of Kong Xiangxi

Runway info

Runway 13 / 31
 length3603m (11821ft)
 bearing121° / 301°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)

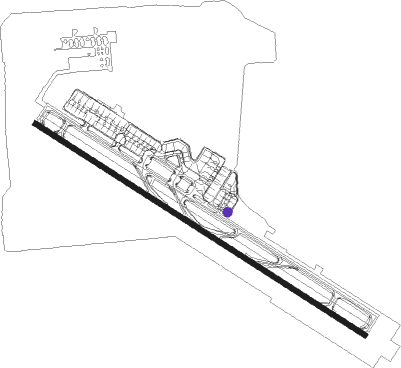

Airport layout - parking location 318


Taxiway locations

 A  A1  A2  A5  A6  A7  A8  B2
 B3  B4  B5  C
Parking locations

 101  102  103  104  105  106  107  108
 109  110  200  201  202  203  204  205
 206  207  208  209  210  211  212  301
 302  303  304  305  307  308  309  310
 311  312  313  314  315  316  317  318
 401  402  403  404  405  406  407  408
 409  410  411  412  413  414  415  416L
 416R  417L  417R

Nearby beacons

codeidentifierdistbearingfrequency
TYNTAIYUAN VOR/DME0.4270°113.10
YFWOLONG (TAIYUAN) NDB12.9300°201

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW13
 TON01D, TON8ZD75mi73°
 ANP8ZD, ANP8YD, ANP01D43mi162°
 BIS8ZD, BIS01D43mi212°
 UGO8ZD, UGO01D101mi252°
 OMK01D, OMK8ZD44mi275°
 TOD8ZD, TOD01D107mi346°
RW31
 TON9YD, TON9ZD, TON11D75mi73°
 ANP9ZD, ANP11D43mi162°
 BIS11D, BIS9ZD43mi212°
 UGO11D, UGO9ZD101mi252°
 OMK9ZD, OMK11D44mi275°
 TOD9ZD, TOD9YD, TOD11D107mi346°

STAR starting pointsdistanceinbound heading
RW13
 BIS01A, BIS8ZA43.332°
 TUT01A, TUT8ZA, TUT02A114.864°
 OMK8ZA, OMK8YA, OMK02A, OMK01A43.695°
 TOD01A, TOD8ZA, TOD8YA, TOD02A106.6166°
 VAG8ZA, VAG01A66.7244°
 ANP8ZA, ANP01A42.9342°
RW31
 BIS9YA, BIS12A, BIS11A, BIS9ZA43.332°
 TUT11A, TUT12A, TUT9ZA, TUT9YA114.864°
 OMK11A, OMK9YA, OMK9ZA43.695°
 TOD11A, TOD9ZA106.6166°
 VAG9ZA, VAG12A, VAG11A66.7244°
 ANP11A, ANP12A, ANP9YA, ANP9ZA42.9342°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANP01ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
ANP11AD170QVHFright170 (350)°> 7880ft1.0min timedICAO rules
ANP12AD170QVHFright170 (350)°> 7880ft1.0min timedICAO rules
ANP12ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
ANP8ZAYN505VHFright235 (55)°> 7880ft1.0min timed205
ANP9YAYN704VHFleft221 (41)°> 6890ft1.0min timed205
ANP9ZAYN704VHFleft221 (41)°> 6890ft1.0min timed205
BIS01ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
BIS12ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
BIS8ZAYN505VHFright235 (55)°> 7880ft1.0min timed205
BIS9YAYN704VHFleft221 (41)°> 6890ft1.0min timed205
BIS9ZAYN704VHFleft221 (41)°> 6890ft1.0min timed205
OMK01AD280QVHFright280 (100)°> 8860ft1.0min timedICAO rules
OMK02AD280QVHFright280 (100)°> 8860ft1.0min timedICAO rules
OMK02ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
OMK11ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
OMK8YAYN505VHFright235 (55)°> 7880ft1.0min timed205
OMK8ZAYN505VHFright235 (55)°> 7880ft1.0min timed205
OMK9YAYN704VHFleft221 (41)°> 6890ft1.0min timed205
OMK9ZAYN704VHFleft221 (41)°> 6890ft1.0min timed205
TOD02ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
TOD11ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
TOD8YAYN504VHFleft41 (221)°> 6890ft1.0min timed205
TOD8ZAYN504VHFleft41 (221)°> 6890ft1.0min timed205
TOD9ZAYN705VHFright41 (221)°> 6890ft1.0min timed205
TUT02ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
TUT12ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
TUT8ZAYN505VHFright235 (55)°> 7880ft1.0min timed205
TUT9YAYN704VHFleft221 (41)°> 6890ft1.0min timed205
TUT9ZAYN704VHFleft221 (41)°> 6890ft1.0min timed205
VAG01ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
VAG12ATYNNDBleft147 (327)°> 6890ft1.0min timedICAO rules
VAG8ZAYN504VHFleft41 (221)°> 6890ft1.0min timed205
VAG9ZAYN705VHFright41 (221)°> 6890ft1.0min timed205
*) magnetic outbound (inbound) holding course
