Airports for X-Plane

Kunming - Kunming Changshui Intl

Airport details

CountryChina
StateYunnan
RegionZP
AirspaceKunming Ctr
MunicipalityKunming
Elevation6900ft (2103m)
TimezoneGMT +8
Coordinates25.10500, 102.94167
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZPPP
IATA codeKMG
FAA coden/a

Communication

Kunming Changshui Intl ATIS128.450
Kunming Changshui Intl Delivery121.700
Kunming Changshui Intl Ground121.650
Kunming Changshui Intl Ground121.950
Kunming Changshui Intl Tower Rwy 04/22118.100
Kunming Changshui Intl Tower Rwy 03/21130.600
Kunming Changshui Intl Approach 4121.150
Kunming Changshui Intl Approach 1119.000
Kunming Changshui Intl Approach 5124.250
Kunming Changshui Intl Approach 2123.800
Kunming Changshui Intl Approach 3120.350

Approach frequencies

ILS-cat-IIRW22108.518.00mi
ILS-cat-IIRW03111.318.00mi
ILS-cat-IRW21110.118.00mi
ILS-cat-IRW04109.318.00mi
3° GSRW21110.118.00mi
3° GSRW04109.318.00mi
3° GSRW22108.518.00mi
3° GSRW03111.318.00mi

Runway info

Runway 04 / 22
 length4512m (14803ft)
 bearing41° / 221°
 width51m (167ft)
 surfaceasphalt
 displ threshold0m (0ft) / 500m (1640ft)
 blast zone120m (394ft) / 120m (394ft)
Runway 03 / 21
 length4014m (13169ft)
 bearing41° / 221°
 width45m (148ft)
 surfaceasphalt
 displ threshold543m (1781ft) / 0m (0ft)
 blast zone120m (394ft) / 120m (394ft)

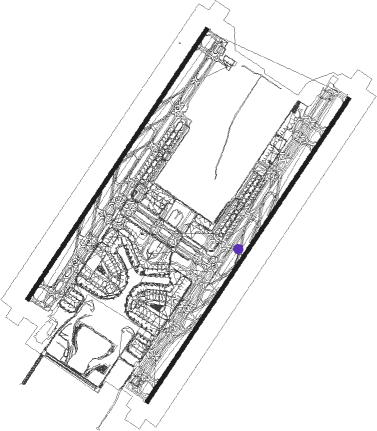

Airport layout - taxiway location C5


Taxiway locations

 C1  C10  C2  C3  C4  C5  C6  C7
 C8  C9  F1  F10  F3  F4  F5  F6
 F7  F8  F9  J
Parking locations

 Gate  Stand

Nearby beacons

codeidentifierdistbearingfrequency
XFAPANLONG VOR/DME17.8358°110.80
SGMXISHAN VOR/DME22.9267°110.60
XSJJINNING VOR/DME26.4199°108.20
DJTMALONG VOR/DME44.157°114.60
LXILUXI VOR/DME55.2125°112.30

Departure and arrival routes

Transition altitude17717ft
Transition level19685ft
SID end pointsdistanceoutbound heading
RW03
 DAD01D, DAD9W86mi14°
 NOD8W, NOD9W, NOD01D74mi58°
 LXI01D, LXI8W, LXI9W55mi125°
 ELA01D, ELA9W92mi226°
 GUL9W, GUL01D80mi251°
RW04
 DAD21D, DAD9X86mi14°
 NOD9X, NOD8X, NOD21D74mi58°
 LXI9X, LXI21D55mi125°
 ELA8X, ELA9X, ELA21D92mi226°
 GUL21D, GUL8X, GUL9X80mi251°
RW21
 DAD9Y, DAD1Y, DAD11D86mi14°
 NOD9Y, NOD11D74mi58°
 LXI11D, LXI9Y55mi125°
 ELA11D, ELA9Y92mi226°
 GUL9Y, GUL11D80mi251°
 NIX11D, NIX9Y65mi347°
RW22
 DAD9Z, DAD31D, DAD1Z86mi14°
 NOD31D, NOD9Z74mi58°
 LXI9Z, LXI31D55mi125°
 ELA31D, ELA9Z92mi226°
 GUL9Z, GUL31D80mi251°
 NIX31D, NIX9Z65mi347°

STAR starting pointsdistanceinbound heading
RW03
 ELA1J60.441°
 ELA01A, ELA02A, ELA3J92.046°
 GUL01A80.471°
 XIS02A, XIS01A73.6228°
 LXI1J, LXI01A55.2305°
RW04
 ELA1J60.441°
 ELA01A, ELA02A, ELA3J92.046°
 GUL01A80.471°
 XIS02A, XIS01A73.6228°
 LXI1J, LXI01A55.2305°
RW21
 ELA11A, LXI11A26.419°
 LXI12A, GUL11A, ELA13A, ELA12A25.262°
 MEB11A54.7210°
 MEB1M75.0213°
 XIS12A, XIS11A63.3226°
 XIS1L52.6228°
 LXI1L, GUL2L, ELA1L18.6245°
RW22
 LXI12A, GUL11A, ELA12A25.262°
 MEB11A54.7210°
 MEB1M75.0213°
 XIS12A, XIS11A63.3226°
 XIS1L52.6228°
 LXI1L, GUL2L, ELA1L18.6245°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ELA01AXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
ELA11AXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
ELA12AXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
ELA1JPP536VHFleft234 (54)°> 11820ft1.0min timedICAO rules
ELA1JXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
ELA1LPP536VHFleft234 (54)°> 11820ft1.0min timedICAO rules
ELA2JPP536VHFleft234 (54)°> 11820ft1.0min timedICAO rules
GUL1JPP537VHFleft268 (88)°> 11820ft1.0min timedICAO rules
GUL1LPP537VHFleft268 (88)°> 11820ft1.0min timedICAO rules
GUL2LPP537VHFleft268 (88)°> 11820ft1.0min timedICAO rules
LXI01AXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
LXI11AXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
LXI12AXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
LXI1JXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
LXI1LXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
LXI2LXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
MEB01AXFA40VHFright40 (220)°> 16740ft1.0min timedICAO rules
MEB11AXFA40VHFright40 (220)°> 16740ft1.0min timedICAO rules
MEB1JPP501VHFright40 (220)°> 16740ft1.5min timedICAO rules
MEB1LPP501VHFright40 (220)°> 16740ft1.5min timedICAO rules
XIS01AXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
XIS1JPP516VHFleft36 (216)°> 13780ft1.0min timedICAO rules
XIS1JXSJNDBright111 (291)°> 11820ft1.0min timedICAO rules
XIS1LPP516VHFleft36 (216)°> 13780ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
