Airports for X-Plane

Berlin - Berlin Brandenburg

Airport details

CountryGermany
StateBrandenburg
RegionED
AirspaceBremen Ctr
MunicipalityDahme-Spreewald
Elevation157ft (48m)
TimezoneGMT +1
Coordinates52.36225, 13.50067
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEDDB
IATA codeSXF
FAA coden/a

Communication

Berlin Brandenburg Schoenefeld ATIS123.780
Berlin Brandenburg Schoenefeld DLV118.850
Berlin Brandenburg Schoenefeld Ground Control129.505
Berlin Brandenburg Schoenefeld APN129.605
Berlin Brandenburg Schoenefeld Tower 1119.575
Berlin Brandenburg Schoenefeld Tower120.030
Berlin Brandenburg Bremen RAD App 1119.630
Berlin Brandenburg Berlin Director121.130
Berlin Brandenburg Bremen RAD App 2126.425
Berlin Brandenburg Bremen RAD App 1 (Fix)119.630
Berlin Brandenburg Bremen RAD120.630

Approach frequencies

ILS-cat-IIIRW07L110.718.00mi
ILS-cat-IIIRW25R109.918.00mi
ILS-cat-IIIRW07R109.718.00mi
ILS-cat-IIIRW25L109.518.00mi
3° GSRW07L110.718.00mi
3° GSRW25R109.918.00mi
3° GSRW07R109.718.00mi
3° GSRW25L109.518.00mi
Nearby Points of Interest:
Dorfkirche Waßmannsdorf
-
Dorfkirche Schulzendorf
-
Kreuzkirche Schulzendorf
-
Werner-Sylten-Kapelle
-
Lichtenrade malt house
-
Aerodynamic Park
-
Gesellschaftshaus Grünau
-
Riviera Grünau
-
Rathaus Johannisthal
-
Dorfkirche Deutsch Wusterhausen
-
Village church Rangsdorf
-
Village church Groß Machnow
-
Flugplatz Rangsdorf
-
Funkerberg
-
Berlin Modernism Housing Estates
-
Gutshaus Groß Machnow
-
Schlossinsel
-
Kietz
-
Wasserwerk Köpenick
-
Bärenquell-Brauerei
-
Amtsgericht Königs Wusterhausen
-
Denkmal der Köpenicker Blutwoche
-
Betriebshof Britz
-
Sporthaus Ziegenhals
-
Marienfelde refugee transit camp

Runway info

Runway 07R / 25L
 length3990m (13091ft)
 bearing77° / 257°
 width60m (197ft)
 surfaceconcrete
Runway 07L / 25R
 length3591m (11781ft)
 bearing77° / 257°
 width45m (148ft)
 surfaceasphalt
 displ threshold297m (974ft) / 297m (974ft)

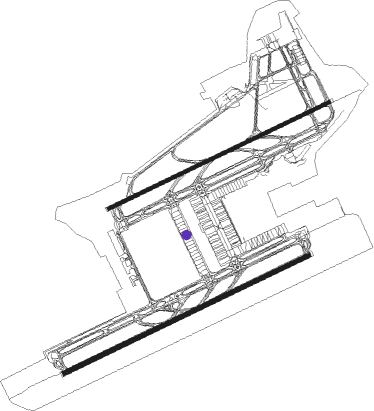

Airport layout - parking location E08


Taxiway locations

 A  B  C  D  E  F  G  H
 K  K1  K2  K3  K4  K5  K6  L1
 L2  L3  L4  L5  L6  L7  L8  M1
 M2  M3  M4  M5  M6  M7  M8  M9
 P1  P2  Q  Q1  Q2  R  S  T
 V1  V2  V3  V4
Parking locations

 19  21  22  24  25  27  28  29
 30  31  33  34  35  36  37  40
 41  42  50  51  52  53  54  55
 59  60  62  63  64  65  70  71
 72  73  74  A  A01  A02  A03  A04
 A05  A06  A07  A08  A09  A10  A11  A12
 Apron  B  B01  B01A  B02  B03  B03A  B04
 B05  B05A  B06  B07  B07A  B07B  B08  B09
 B09A  B10  B11  B11A  B12  B13  B13A  B14
 B15  B15A  B15B  B16  C  C01  C02  C03
 C04  C05  C05A  C06  C07  C07A  C08  C09
 C09A  C10  C11  C11A  C12  C13  C14  C14A
 C15  D01  D02  D03  D03A  D04  D05  D05A
 D05B  D06  D07  D07A  D08  D09  D09A  D10
 D11  D11A  D12  D13  D13A  D13B  D14  D15
 D15A  D16  D17  D17A  D18  D19  D19A  D20
 D21  D21A  D22  E01  E02  E03  E04  E05
 E06  E07  E08  E09  E10  E11  E12  E13
 E14  E15  E16  E17  E18  E19  GA  P1
 P2

Nearby beacons

codeidentifierdistbearingfrequency
SDDDME0.714°114.40
BBIBERLIN BRANDENBURG VOR/DME2247°114.10
KLFKLASDORF VOR/DME20.7170°115.15
FWEFUERSTENWALDE VOR/DME23.286°113.30
LWBLOEWENBERG VOR/DME35.5326°114.55
HOZHOLZDORF TACAN37.4207°117.25
HOZHOLZDORF NDB38.5214°406

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW07L
 GERG1D, GERG1B24mi66°
 ARSA1D, ARSA1B45mi96°
 LURO1D, LURO1B37mi125°
 ODLU1D, ODLU1B, ODLU1K, ODLU1J69mi253°
 MAXA1B, MAXA1J, MAXA1K, MAXA1D87mi254°
 POVE1J, POVE1K, POVE1D, POVE1B99mi265°
 HLZ1B, HLZ1K, HLZ1J, HLZ1D99mi270°
 SOGM1K, SOGM1J, SOGM1D, SOGM1B61mi280°
RW07R
 GERG1Z, GERG1Q24mi66°
 ARSA1Z, ARSA1Q45mi96°
 LURO1Z, LURO1Q37mi125°
 ODLU1R, ODLU1Q, ODLU1Z, ODLU1Y69mi253°
 MAXA1Q, MAXA1R, MAXA1Y, MAXA1Z87mi254°
 POVE1Q, POVE1Y, POVE1Z, POVE1R99mi265°
 HLZ1Z, HLZ1Y, HLZ1R, HLZ1Q99mi270°
 SOGM1Z, SOGM1Y, SOGM1R, SOGM1Q61mi280°
RW25L
 GERG1N24mi66°
 ARSA1N45mi96°
 LURO1N37mi125°
 ROKM1P27mi239°
 ODLU1N, ODLU1P69mi253°
 MAXA1N, MAXA1P87mi254°
 POVE1P, POVE1N99mi265°
 HLZ1P, HLZ1N99mi270°
 SOGM1P, SOGM1N61mi280°
RW25R
 GERG1A, GERG1C, GERG1M24mi66°
 ARSA1A, ARSA1C, ARSA1M45mi96°
 LURO1M, LURO1C, LURO1A37mi125°
 ODLU1C, ODLU1A69mi253°
 MAXA1A, MAXA1C87mi254°
 POVE1C, POVE1A99mi265°
 HLZ1C, HLZ1A99mi270°
 SOGM1A, SOGM1C61mi280°

STAR starting pointsdistanceinbound heading
RW07L
 OGB07L32.1108°
 KET07L34.4195°
 NUK07L38.6289°
 ATG07L28.3327°
 KLF07L20.7350°
RW07R
 OGB07R32.1108°
 KET07R34.4195°
 NUK07R38.6289°
 ATG07R28.3327°
 KLF07R20.7350°
RW25L
 OGB25L32.1108°
 KET25L34.4195°
 NUK25L38.6289°
 ATG25L28.3327°
 KLF25L20.7350°
RW25R
 OGB25R32.1108°
 KET25R34.4195°
 NUK25R38.6289°
 ATG25R28.3327°
 KLF25R20.7350°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07LATGUP (327°)ATGUP 4000ft
KLF (10mi, 293°)
DB901 (19mi, 292°)
DB542 (5mi, 327°) 4000ft
ODIDO (4mi, 76°) 4000ft
RW07LKETAP (195°)KETAP 5000ft
OGBER (39mi, 251°) 5000ft
DB542 (24mi, 134°) 4000ft
ODIDO (4mi, 76°) 4000ft
RW07LKLF (350°)KLF 4000ft
DB901 (19mi, 292°)
DB542 (5mi, 327°) 4000ft
ODIDO (4mi, 76°) 4000ft
RW07LNUKRO (289°)NUKRO 4000ft
KLF (32mi, 268°)
DB901 (19mi, 292°)
DB542 (5mi, 327°) 4000ft
ODIDO (4mi, 76°) 4000ft
RW07LOGBER (108°)OGBER 5000ft
DB542 (24mi, 134°) 4000ft
ODIDO (4mi, 76°) 4000ft
 RNAVODIDO 4000ft
EDDB (12mi, 78°) 194ft
DB910 (1mi, 59°) 4000ft
DB915 (8mi, 354°)
OGBER (30mi, 278°) 5000ft
RW07RATGUP (327°)ATGUP 4000ft
KLF (10mi, 293°)
DB951 (15mi, 292°) 4000ft
DB552 (7mi, 327°) 3000ft
TEBGO (4mi, 76°) 3000ft
RW07RKETAP (195°)KETAP 5000ft
OGBER (39mi, 251°) 5000ft
DB552 (26mi, 129°) 3000ft
TEBGO (4mi, 76°) 3000ft
RW07RKLF (350°)KLF 4000ft
DB951 (15mi, 292°) 4000ft
DB552 (7mi, 327°) 3000ft
TEBGO (4mi, 76°) 3000ft
RW07RNUKRO (289°)NUKRO 4000ft
KLF (32mi, 268°)
DB951 (15mi, 292°) 4000ft
DB552 (7mi, 327°) 3000ft
TEBGO (4mi, 76°) 3000ft
RW07ROGBER (108°)OGBER 5000ft
DB552 (26mi, 129°) 3000ft
TEBGO (4mi, 76°) 3000ft
 RNAVTEBGO 3000ft
EDDB (10mi, 75°) 202ft
DB960 (turn) 3000ft
KLF (20mi, 173°) 4000ft
RW25LATGUP (327°)ATGUP 4000ft
DB850 (27mi, 39°)
FWE (5mi, 13°) 4000ft
DB452 (10mi, 275°) 3000ft
XANIM (4mi, 257°) 3000ft
RW25LKETAP (195°)KETAP 5000ft
DB853 (25mi, 161°) 5000ft
DB452 (5mi, 148°) 3000ft
XANIM (4mi, 257°) 3000ft
RW25LKLF (350°)KLF 4000ft
DB851 (24mi, 42°) 4000ft
DB452 (4mi, 328°) 3000ft
XANIM (4mi, 257°) 3000ft
RW25LNUKRO (289°)NUKRO 4000ft
FWE (24mi, 322°) 4000ft
DB452 (10mi, 275°) 3000ft
XANIM (4mi, 257°) 3000ft
RW25LOGBER (108°)OGBER 5000ft
DB853 (40mi, 95°) 5000ft
DB452 (5mi, 148°) 3000ft
XANIM (4mi, 257°) 3000ft
 RNAVXANIM 3000ft
EDDB (9mi, 259°) 199ft
DB860 (2mi, 242°) 3000ft
KLF (20mi, 164°) 4000ft
RW25RATGUP (327°)ATGUP 4000ft
DB850 (27mi, 39°)
FWE (5mi, 13°)
DB443 (8mi, 287°) 4000ft
UBURU (4mi, 257°) 4000ft
RW25RKETAP (195°)KETAP 5000ft
DB802 (24mi, 149°)
DB443 (5mi, 148°) 4000ft
UBURU (4mi, 257°) 4000ft
RW25RKLF (350°)KLF 4000ft
DB800 (27mi, 48°)
DB443 (5mi, 328°) 4000ft
UBURU (4mi, 257°) 4000ft
RW25RNUKRO (289°)NUKRO 4000ft
FWE (24mi, 322°)
DB443 (8mi, 287°) 4000ft
UBURU (4mi, 257°) 4000ft
RW25ROGBER (108°)OGBER 5000ft
DB802 (42mi, 93°) 5000ft
DB443 (5mi, 148°) 4000ft
UBURU (4mi, 257°) 4000ft
 RNAVUBURU 4000ft
EDDB (13mi, 255°) 204ft
DB810 (1mi, 269°) 4000ft
OGBER (31mi, 289°) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ATG07LATGUPVHFright200 (20)°> 4000ft1.0min timedICAO rules
ATG07RATGUPVHFright200 (20)°> 4000ft1.0min timedICAO rules
ATG25LATGUPVHFright200 (20)°> 4000ft1.0min timedICAO rules
ATG25RATGUPVHFright200 (20)°> 4000ft1.0min timedICAO rules
KET07LKETAPVHFleft327 (147)°> 5000ft1.0min timed230
KET07LOGBERVHFleft297 (117)°> 5000ft1.0min timed230
KET07RKETAPVHFleft327 (147)°> 5000ft1.0min timed230
KET07ROGBERVHFleft297 (117)°> 5000ft1.0min timed230
KET25LKETAPVHFleft327 (147)°> 5000ft1.0min timed230
KET25RKETAPVHFleft327 (147)°> 5000ft1.0min timed230
KLF07LKLFNDBright200 (20)°> 4000ft1.0min timedICAO rules
KLF07RKLFNDBright200 (20)°> 4000ft1.0min timedICAO rules
KLF25LKLFNDBright200 (20)°> 4000ft1.0min timedICAO rules
KLF25RKLFNDBright200 (20)°> 4000ft1.0min timedICAO rules
NUK07LNUKROVHFright151 (331)°> 4000ft1.0min timed230
NUK07RNUKROVHFright151 (331)°> 4000ft1.0min timed230
NUK25LNUKROVHFright151 (331)°> 4000ft1.0min timed230
NUK25RNUKROVHFright151 (331)°> 4000ft1.0min timed230
OGB07LOGBERVHFleft297 (117)°> 5000ft1.0min timed230
OGB07ROGBERVHFleft297 (117)°> 5000ft1.0min timed230
OGB25LOGBERVHFleft297 (117)°> 5000ft1.0min timed230
OGB25ROGBERVHFleft297 (117)°> 5000ft1.0min timed230
*) magnetic outbound (inbound) holding course
