Airports for X-Plane

Queenstown

Airport details

CountryNew Zealand
StateOtago
RegionNZ
MunicipalityQueenstown-Lakes District
Elevation1166ft (355m)
TimezoneGMT +12
Coordinates-45.02426, 168.74016
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeNZQN
IATA codeZQN
FAA coden/a

Communication

Queenstown ATIS126.400
Queenstown CTAF118.100
Queenstown Delivery121.900
Queenstown Tower118.100
Queenstown Approach128.900
Queenstown DepartureARTURE125.750
Nearby Points of Interest:
Hulbert House
-
Arrowtown Chinese Settlement
-
Arrow Kilwinning Lodge

Runway info

Runway 05 / 23
 length1887m (6191ft)
 bearing81° / 261°
 width45m (148ft)
 surfaceasphalt
 displ threshold63m (207ft) / 52m (171ft)
Runway 14 / 32
 length889m (2917ft)
 bearing154° / 334°
 width15m (49ft)
 surfaceasphalt
 displ threshold70m (230ft) / 101m (331ft)

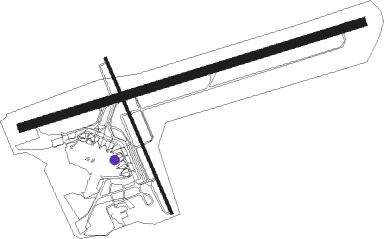

Airport layout - parking location R6


Taxiway locations

 A  A2  A3  A4  A5  A6  B2  B3
 B4  C1  C2  C3  Y5  Y6  Y8
Parking locations

 Air  Airwork  Helicopter  Helitours  Heliworks  LDART  Over  R1
 R1A  R2  R3  R4  R5  R6  R7  R8
 Real  Southern

Nearby beacons

codeidentifierdistbearingfrequency
QNQUEENSTOWN VOR/DME347°113.60
LXALEXANDRA NDB32.4101°386

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW05
 BRG9105mi37°
 EPDE3C, EPDE3P, ANPO3A54mi60°
 SUNG4P51mi108°
 IPNO3A, IPNO4C80mi316°
RW23
 ANPO3F, ANPO3S, ANPO3T, ANPO4D, ANPO3B54mi60°
 SUNG4S, SUNG4Q, SUNG3U, REDO2A51mi108°
 IPNO4D, IPNO3B80mi316°

STAR starting pointsdistanceinbound heading
RW05
 SUNG3A26.413°
 UBDA3A25.9139°
 ELRU2A52.5250°
RW23
 SUNG4B26.413°
 UBDA4B25.9139°
 ELRU4B52.5250°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05-YIBABU (95°)IBABU
QN577 (4mi, 251°) 10000ft
QN573 (7mi, 208°) 9500ft
QN571 (3mi, 124°) 8400ft
QN569 (3mi, 87°) 7300ft
QN565 (2mi, 70°) 6500ft
MOPGA (2mi, 69°) 5700ft
OMUBO (7mi, 69°) 3100ft
 RNAVOMUBO 3100ft
QN555 (2mi, 69°) 2412ft
QN550 (1mi, 58°) 2025ft
QN545 (2mi, 65°) 1470ft
NZQN (turn) 1208ft
QN547 (turn)
QN551 (3mi, 57°)
QN553 (3mi, 305°) 6000ft
QN557 (3mi, 205°)
QN560 (4mi, 159°)
TUNRI (5mi, 185°) 9000ft
QN878 (10mi, 185°)
QN882 (3mi, 201°)
SUNGU (7mi, 215°)
SUNGU (turn) 10000ft
RW05-ZIBABU (95°)IBABU
QN577 (4mi, 251°) 10000ft
QN573 (7mi, 208°) 9200ft
QN571 (3mi, 124°) 8200ft
QN569 (3mi, 87°) 7100ft
QN565 (2mi, 70°) 6300ft
MOPGA (2mi, 69°) 5500ft
OMUBO (7mi, 69°) 3100ft
 RNAVOMUBO 3100ft
QN555 (2mi, 69°)
QN550 (1mi, 58°)
QN545 (2mi, 65°)
NZQN (turn) 1208ft
QN547 (turn)
QN552 (1mi, 74°)
QN556 (2mi, 281°) 6000ft
QN560 (4mi, 164°)
TUNRI (5mi, 185°) 9000ft
QN878 (10mi, 185°)
QN882 (3mi, 201°)
SUNGU (7mi, 215°)
SUNGU (turn) 10000ft
RW23-YATKIL (249°)ATKIL 10000ft
QN780 (4mi, 261°) 8600ft
QN775 (4mi, 244°) 9000ft
QN770 (3mi, 200°) 7800ft
ATVUP (3mi, 175°) 6800ft
RW23-YUGPED (210°)UGPED 10000ft
QN779 (7mi, 92°) 9000ft
QN774 (4mi, 110°) 7800ft
ATVUP (3mi, 151°) 6800ft
 RNAVATVUP 6800ft
QN760 (4mi, 229°) 5200ft
QN755 (3mi, 278°) 4200ft
LARAV (3mi, 294°) 3300ft
QN745 (2mi, 277°) 2646ft
QN741 (1mi, 262°) 2190ft
QN735 (turn) 1824ft
QN725 (1mi, 258°) 1391ft
NZQN (1mi, 252°) 1221ft
QN727 (turn)
KABAP (2mi, 240°) 3200ft
NOLUV (1mi, 189°) 4000ft
QN732 (2mi, 135°)
RUXAK (3mi, 132°) 9000ft
QN737 (2mi, 170°)
QN878 (9mi, 185°)
QN882 (3mi, 201°)
SUNGU (7mi, 215°)
SUNGU (turn) 10000ft
RW23-ZATKIL (249°)ATKIL 10000ft
QN780 (4mi, 261°) 8600ft
QN775 (4mi, 244°) 8600ft
QN770 (3mi, 200°) 7500ft
ATVUP (3mi, 175°) 6700ft
RW23-ZUGPED (210°)UGPED 10000ft
QN779 (7mi, 92°) 8700ft
QN774 (4mi, 110°) 7600ft
ATVUP (3mi, 151°) 6700ft
 RNAVATVUP 6700ft
QN760 (4mi, 229°) 5100ft
QN755 (3mi, 278°) 4200ft
LARAV (3mi, 294°) 3300ft
QN745 (2mi, 277°) 2650ft
QN741 (1mi, 262°) 2190ft
QN735 (turn)
QN725 (1mi, 258°)
NZQN (1mi, 252°) 1221ft
QN727 (turn)
KABAP (2mi, 240°) 3200ft
NOLUV (1mi, 189°) 4000ft
QN732 (2mi, 135°)
RUXAK (3mi, 132°) 9000ft
QN737 (2mi, 170°)
QN878 (9mi, 185°)
QN882 (3mi, 201°)
SUNGU (7mi, 215°)
SUNGU (turn) 10000ft
RWNVFIBABU (95°)IBABU
QN529 (4mi, 251°) 8600ft
LETPO (7mi, 135°) 8600ft
 RNAVLETPO 8600ft
GUSAS (6mi, 79°) 6200ft
QN581 (8mi, 66°) 4120ft
QN523 (4mi, 66°)
QN596 (10mi, 101°)
QN527 (11mi, 30°)
EKVOX (9mi, 77°) 10000ft
RWNVGATKIL (249°)ATKIL
QN780 (4mi, 261°) 8500ft
ONADU (5mi, 229°) 8300ft
GIVAK (5mi, 191°) 7700ft
RWNVGUGPED (210°)UGPED
ONADU (11mi, 92°) 7700ft
GIVAK (5mi, 191°) 7700ft
 RNAVGIVAK 7700ft
IKABA (4mi, 256°) 5800ft
QN603 (6mi, 278°) 4100ft
QN611 (2mi, 278°)
ENKUV (6mi, 241°)
OLREK (3mi, 251°) 9000ft
TULVU (3mi, 251°)
VAPLI (6mi, 251°)
IBVUK (8mi, 185°)
SUNGU (14mi, 131°) 10000ft
SUNGU (turn) 10000ft
RWNVHATKIL (249°)ATKIL
QN780 (4mi, 261°) 8500ft
ONADU (5mi, 229°) 8300ft
GIVAK (5mi, 191°) 7700ft
RWNVHUGPED (210°)UGPED
ONADU (11mi, 92°) 7700ft
GIVAK (5mi, 191°) 7700ft
 RNAVGIVAK 7700ft
IKABA (4mi, 256°) 5800ft
QN603 (6mi, 278°) 4100ft
QN611 (2mi, 278°)
ENKUV (6mi, 241°) 4500ft
OLREK (3mi, 251°)
TULVU (3mi, 251°) 7000ft
VAPLI (6mi, 251°)
IBVUK (8mi, 185°)
SUNGU (14mi, 131°) 10000ft
SUNGU (turn) 10000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ELRU2AEKVOXVHFleft37 (217)°> 8600ft1.0min timed230
ELRU4BEKVOXVHFleft37 (217)°> 8600ft1.0min timed230
SUNG3ASUNGUVHFleft159 (339)°8600ft - 60000ft1.0min timed230
SUNG4BSUNGUVHFleft159 (339)°8600ft - 60000ft1.0min timed230
UBDA3AUBDAMVHFleft300 (120)°11400ft - 60000ft1.0min timed230
UBDA4BUBDAMVHFleft300 (120)°11400ft - 60000ft1.0min timed230
*) magnetic outbound (inbound) holding course
